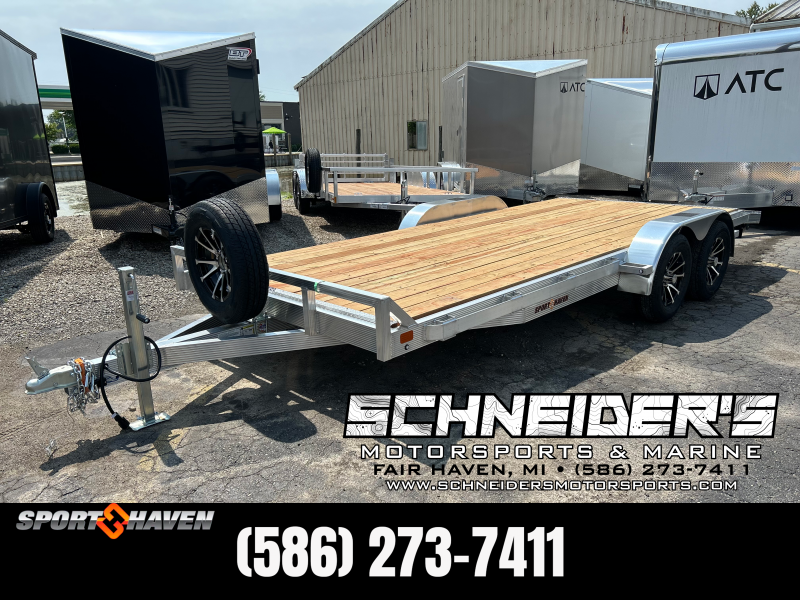

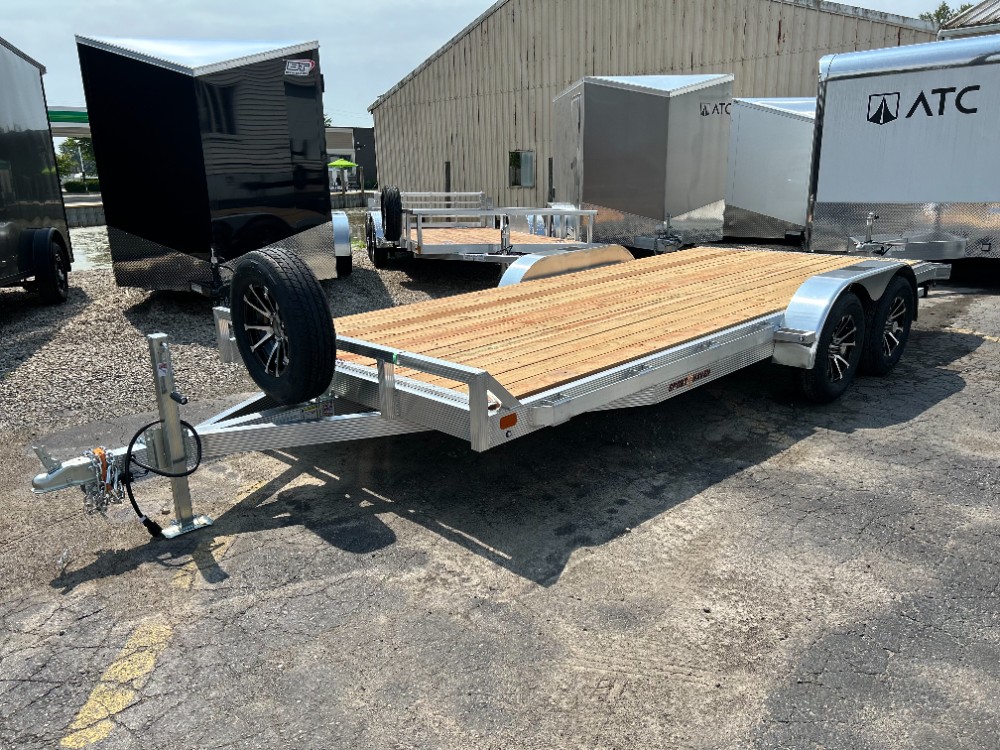

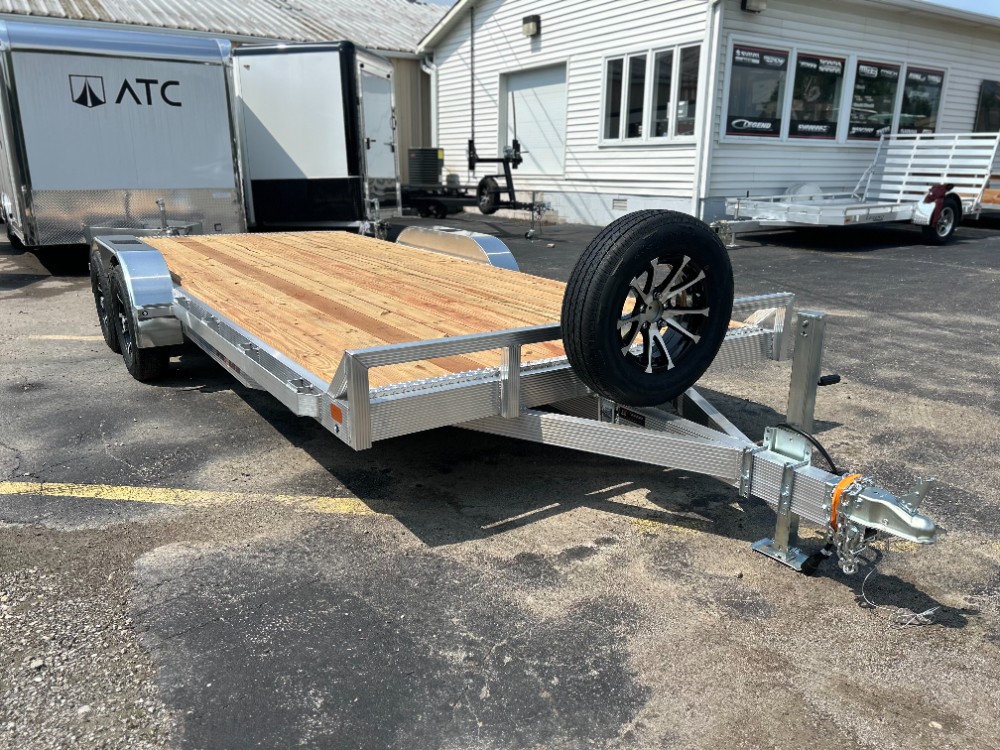

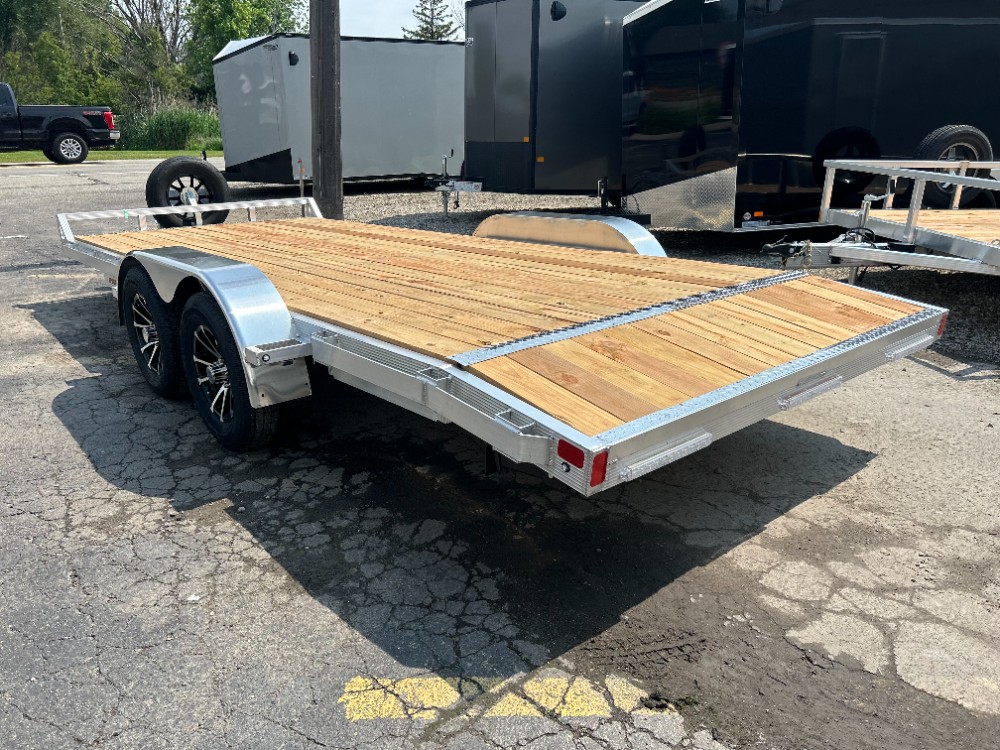

FEATURED 2025  Sport Haven  7’ x 18’ 7K Aluminum Open Car Hauler Trailer  - 33170

18' 7K ALUMINUM OPEN CAR HAULER WOOD DECK B2 W/ ALUMINUM RIMS

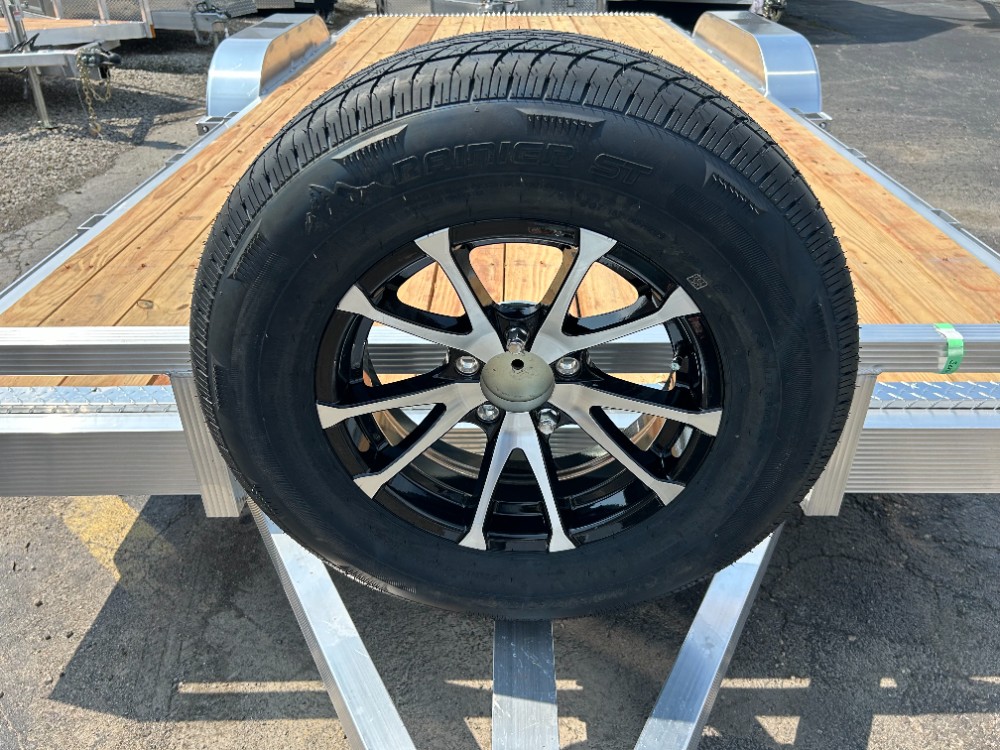

FORWARD FACING BOLT ON SPARE MOUNT

RAINIER ST205/75R15C

15X5, 5-4.5 AVALANCHE BLACK MACHINE BALANCING BEADS

Standard Features Included:

(QTY 2) 7' Heavy Duty Ramps (Side or Front Access)

Rear Ramp Drop Pad Stabilizers

Stake Pockets with 3" x .25" Bar Stock Rub Rail

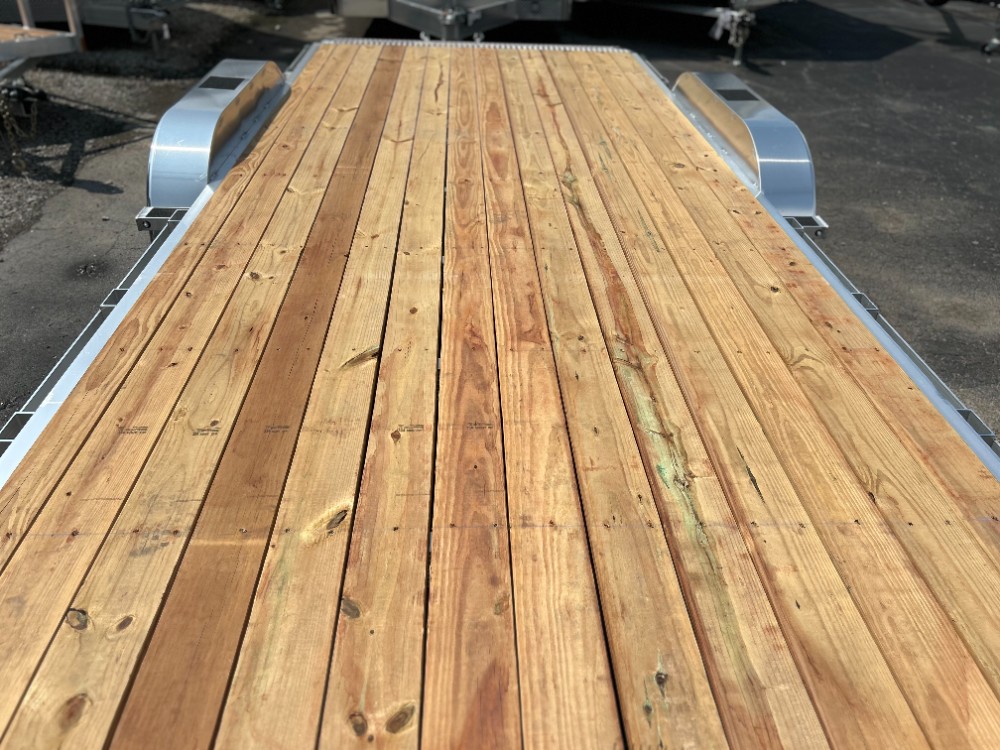

2" x 6" ProWood Dura Color Decking

Construction Specs:

Double Hollow Aluminum Tube Tongue, Frame Outer Rails & Front Crossmembers

2" x 2" Front Top Deck Rail

2" x 2" Front Top Deck Rail Uprights

Side Rub Rail Consisting of 2" x 4" x 4" Stake Pockets & 3" x 1/4" Bar Stock Aluminum

2" x 6" ProWood DuraColor Decking

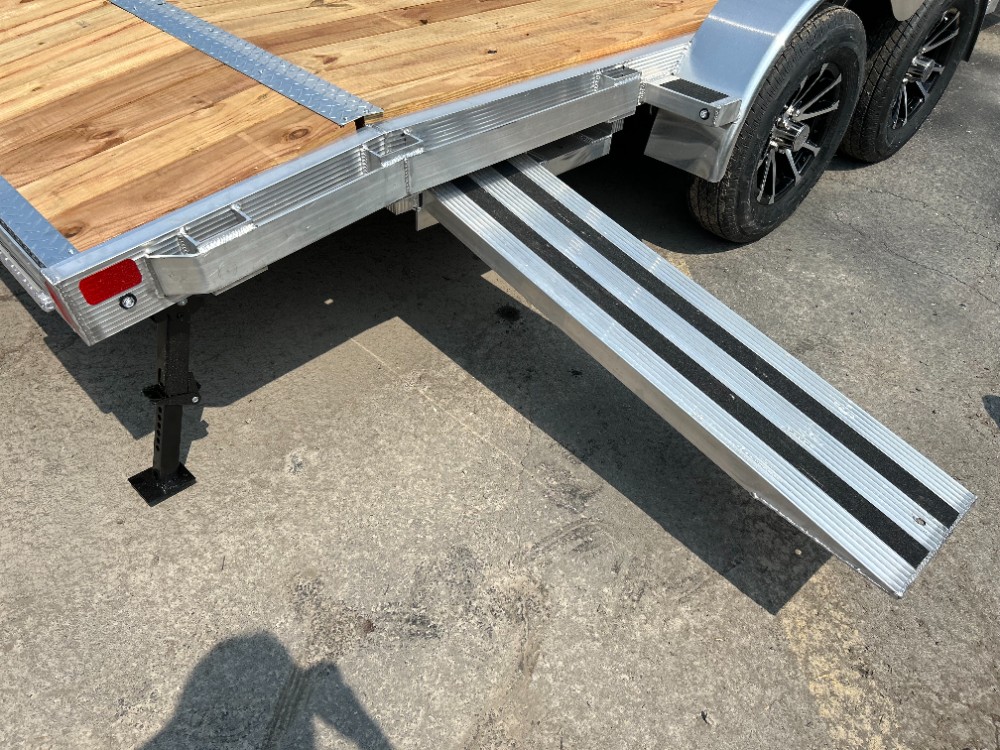

Heavy Duty Adjustable Width Loading Ramps

Component Specs:

LED Lights

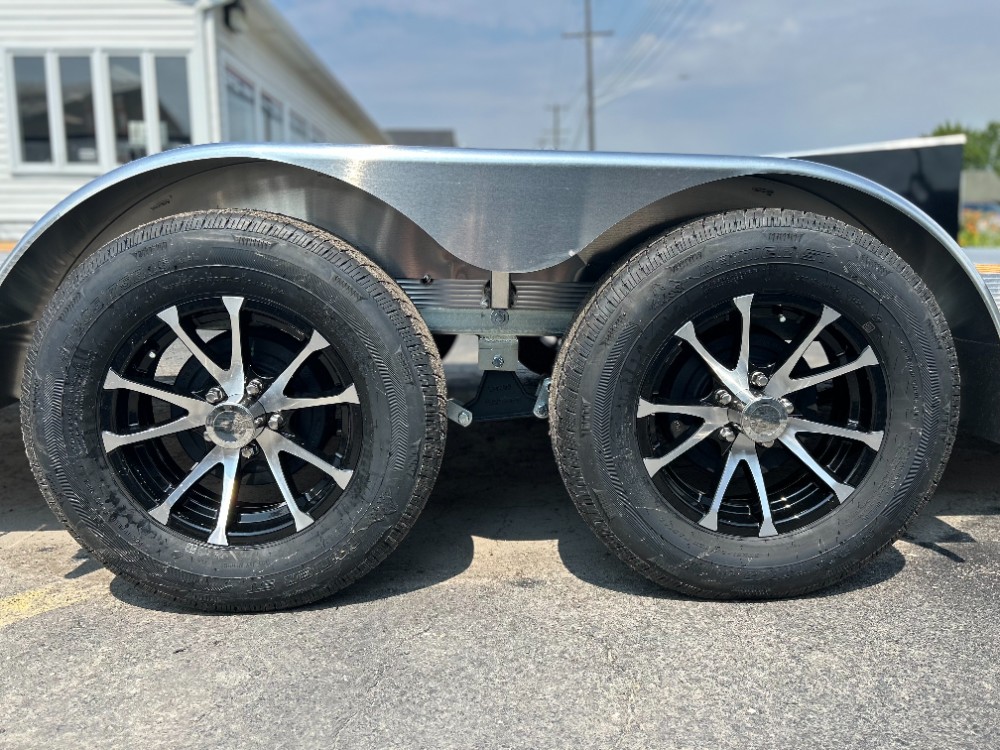

15" Silver Powder Coated Wheels

15" Radial Tires

3,500 lb Capacity Axles

Double Eye Spring Suspension

7,000 lb Capacity Zinc Plated Coupler

7,600 lb Capacity, 30" Zinc Plated Safety Chains

2,500 lb Capacity Zinc Plated Pad Jack

1,000 lb (ea) Support Capacity Rear Stabilizer Jacks

Misc Specs:

7-Way Round Wiring Harness

2" Ball

Electric Brakes On Both Axles

14" Hitch Height

18" Deck Height

7" Rail Height Above the Deck

7,000 lb Gross Vehicle Weight Restriction (GVWR)

SPECS:

MODEL AOC1870T

Deck L x W 216" x 83"

Overall L x W 267" x 102"

Tongue (QTY 1) 3" x 5" Double Hollow

Tongue Supports (QTY 2) 2" x 4" Fluted

Frame Outer Rails (QTY 2) 2" x 5" Double Hollow

Frame Outer Rail Supports - Front (QTY 2) 2" x 4" Fluted

Frame Crossmember* Front (QTY 1) 2" x 5" Double Hollow

Frame Crossmembers* Above Tongue (QTY 3) 2" x 4" Fluted

Frame Crossmembers* Middle (QTY 8) 1.75" x 3"

Frame Crossmember* Rear (QTY 1) 1.75" x 3"

Curb Weight 1,560 lbs

Payload Capacity 5,440 lbs
