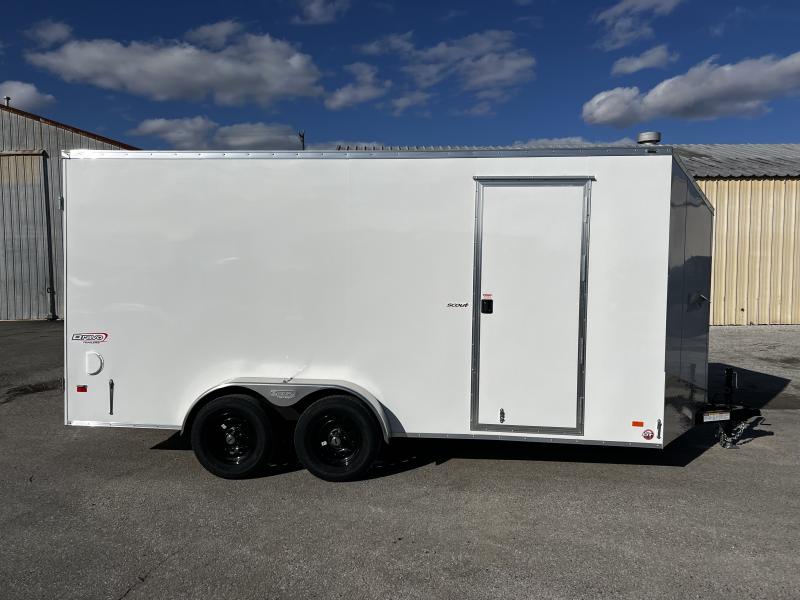

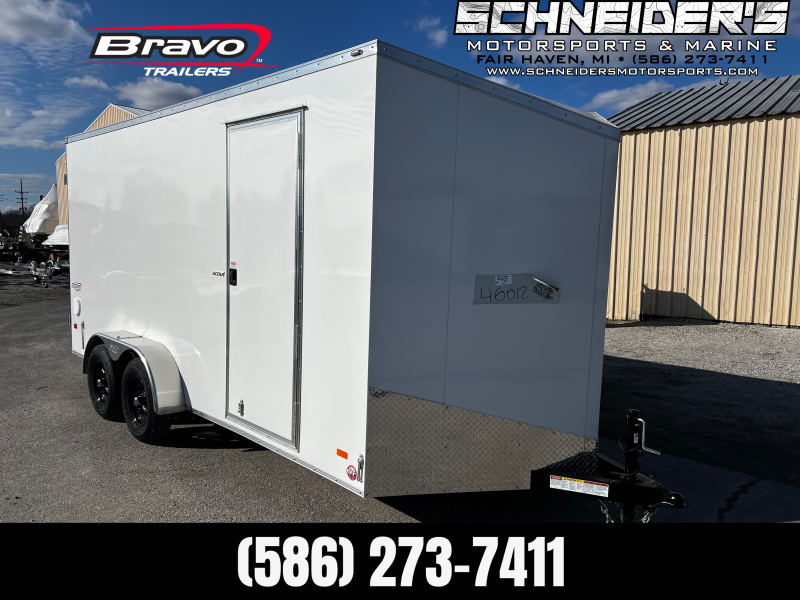

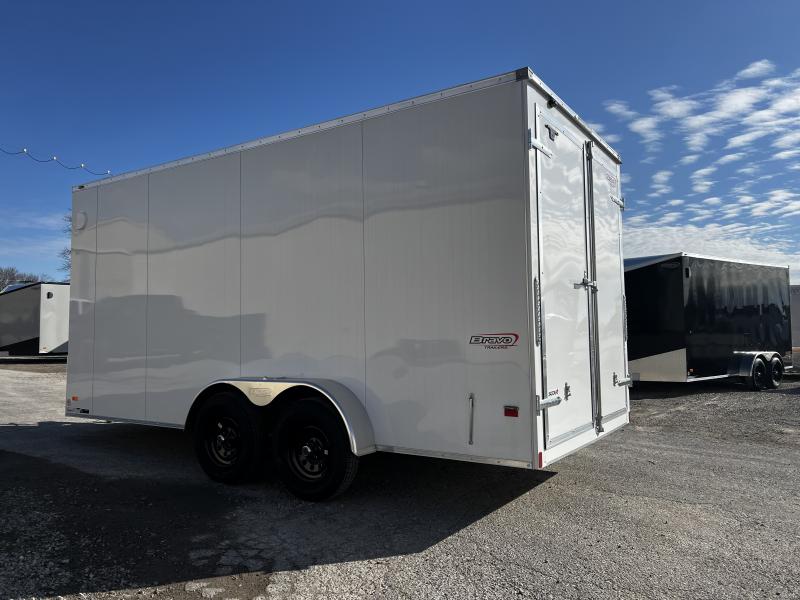

2024  Bravo  7x16 Scout Enclosed Cargo Trailer  - 46012

>SC716TA2

3500# TANDEM DROP SPRING AXLES

ELECTRIC BRAKES

4" TUBE FRAME

CROSS MEMBERS @ 16" O.C.

TUBE ROOF MEMBERS @ 24" O.C.

2-5/16" COUPLER - 14K

PAINTED TONGUE JACK W/SAND FOOT

ST205/75R15/LRC 15" RADIAL TIRES

ALUMINUM ROOF

BONDED .030 EXTERIOR SIDE WALLS

LED STRIP TAIL LIGHTS

CLEAR LENS LED EXTERIOR LIGHTING

LED LICENSE PLATE LIGHT

3/8" ENGINEERED SIDEWALLS

3/4" ENGINEERED FLOORING

EXTERIOR LED REAR HEADER LOADING LIGHT

32" SIDE DOOR W/ FLUSH LOCK & CAST ALUMINUM HOLDBACK

(QTY 2) 12V LED DOME LIGHTS

(QTY 2) 12V WALL SWITCHES

>WHITE 030 EXTERIOR METAL

>30" SLANT WEDGE V-NOSE (7W) ILO 30" V

WITH 24" TAPERED STONEGUARD

>6" EXTRA HEIGHT - LTF

TO UNIT & DOORS

APPROXIMATE INTERIOR HEIGHT: 84"

SIDE DOOR: 76"T

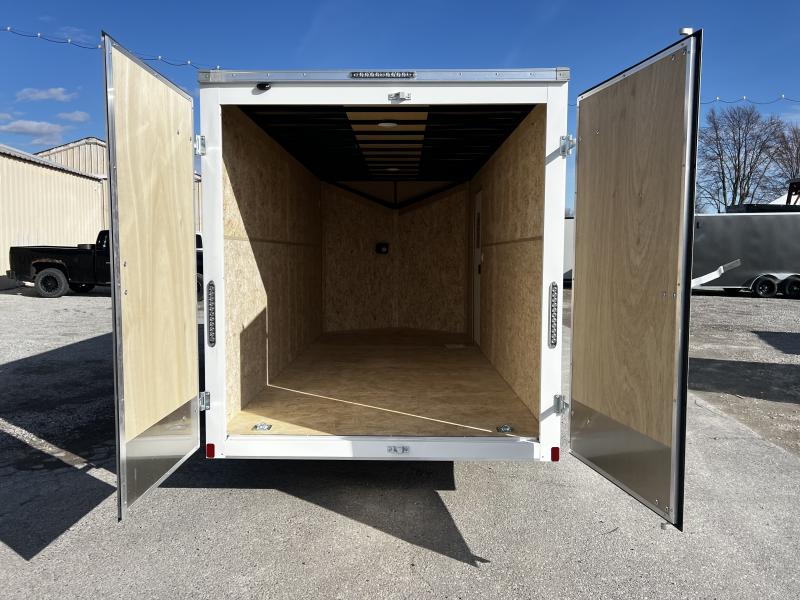

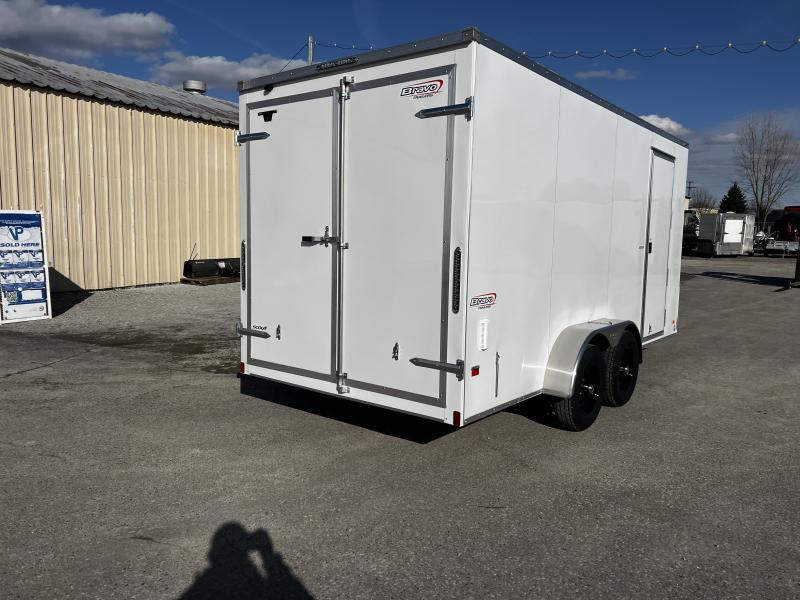

>DOUBLE REAR DOORS ILO STD RAMP DOOR IN MODEL

W/CAST ALUMINUM DOOR HOLDBACKS

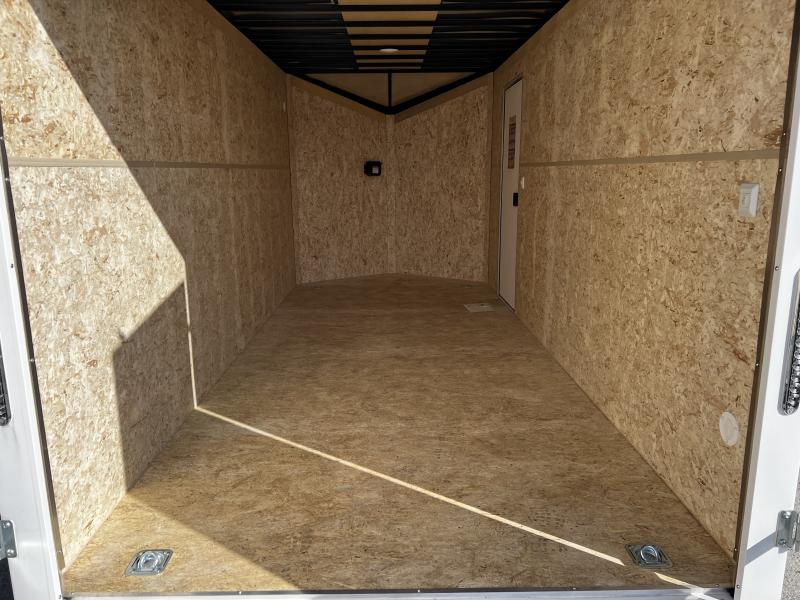

>5000# RECESSED FLOOR D-RING

(QTY 1) IN EACH CORNER - 10" AWAY FROM SIDEWALLS

>ADDITIONAL ROOF BOWS

FOR 16" O.C.

>BLACK MOD WHEELS ILO SILVER/PR

>APPEARANCE PKG TA

(QTY 4) STAINLESS STEEL CENTER CAPS

(QTY 2) CHROME BEZEL FOR LED TAIL LIGHT

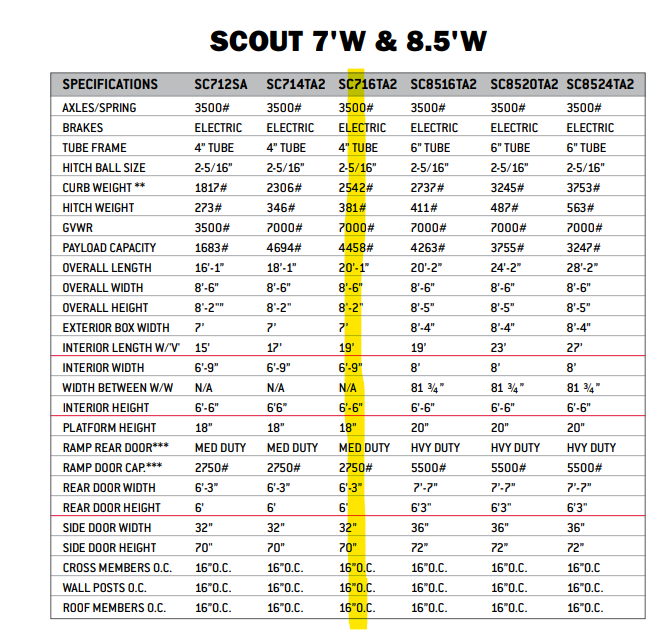

SPECS:

Details SC716TA2

Download Floor Plans Here V-Nose

Axles 3500#

Tires 15" Radial

Brakes Electric

Tube Frame 4" Tube

Hitch Ball Size 2-5/16"

Curb Weight 2542#

Hitch Weight 381#

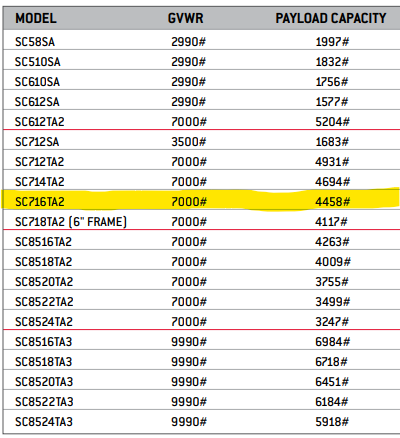

GVWR 7000#

Payload Capacity 4458#

Overall Length 20'-1"

Overall Width 8'-6"

Overall Height 8'-2"

Exterior Box Width 7'

Interior Length w/ 'V' 19'

Interior Width 6'-9"

Width Between W/W N/A

Interior Height 6'-6"

Platform Height 18"

Ramp Rear Door Med Duty

Rear Door Width 6'-3"

Rear Door Height 6'

Side Door Width 32"

Side Door Height 70"

Cross Members O.C. 16" O.C.

Wall Posts O.C. 16" O.C.

Roof Members O.C. 24" O.C.
