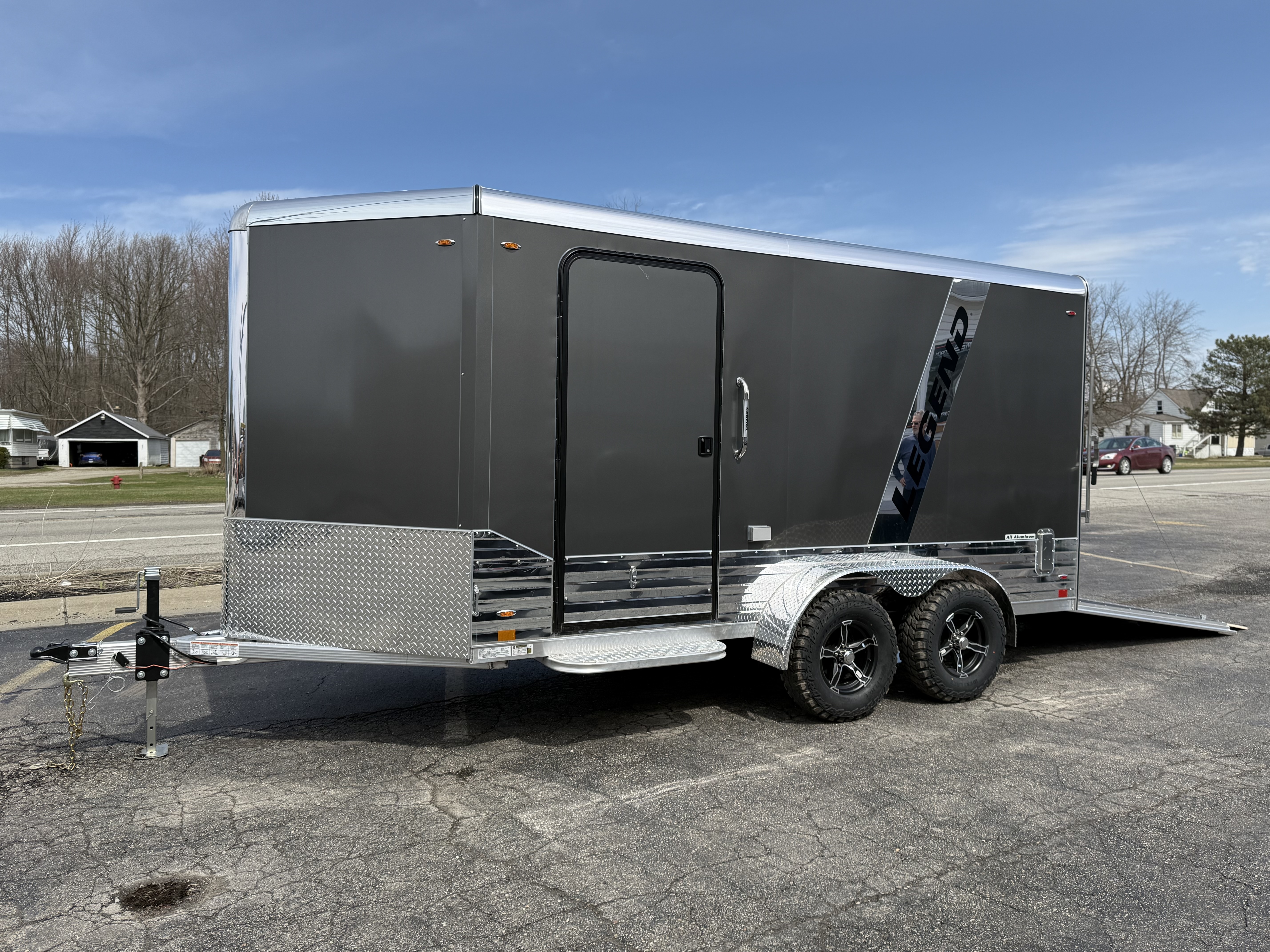

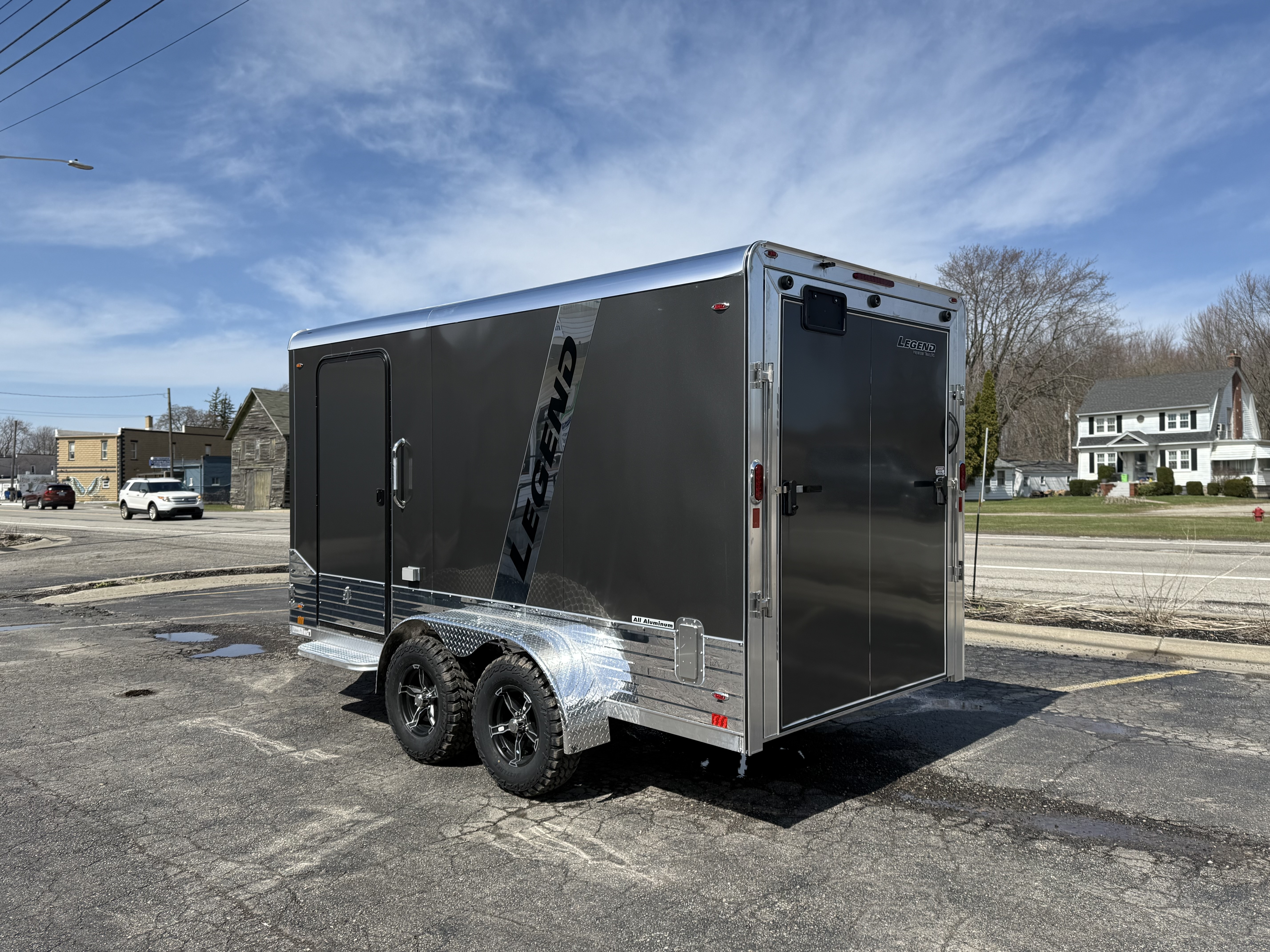

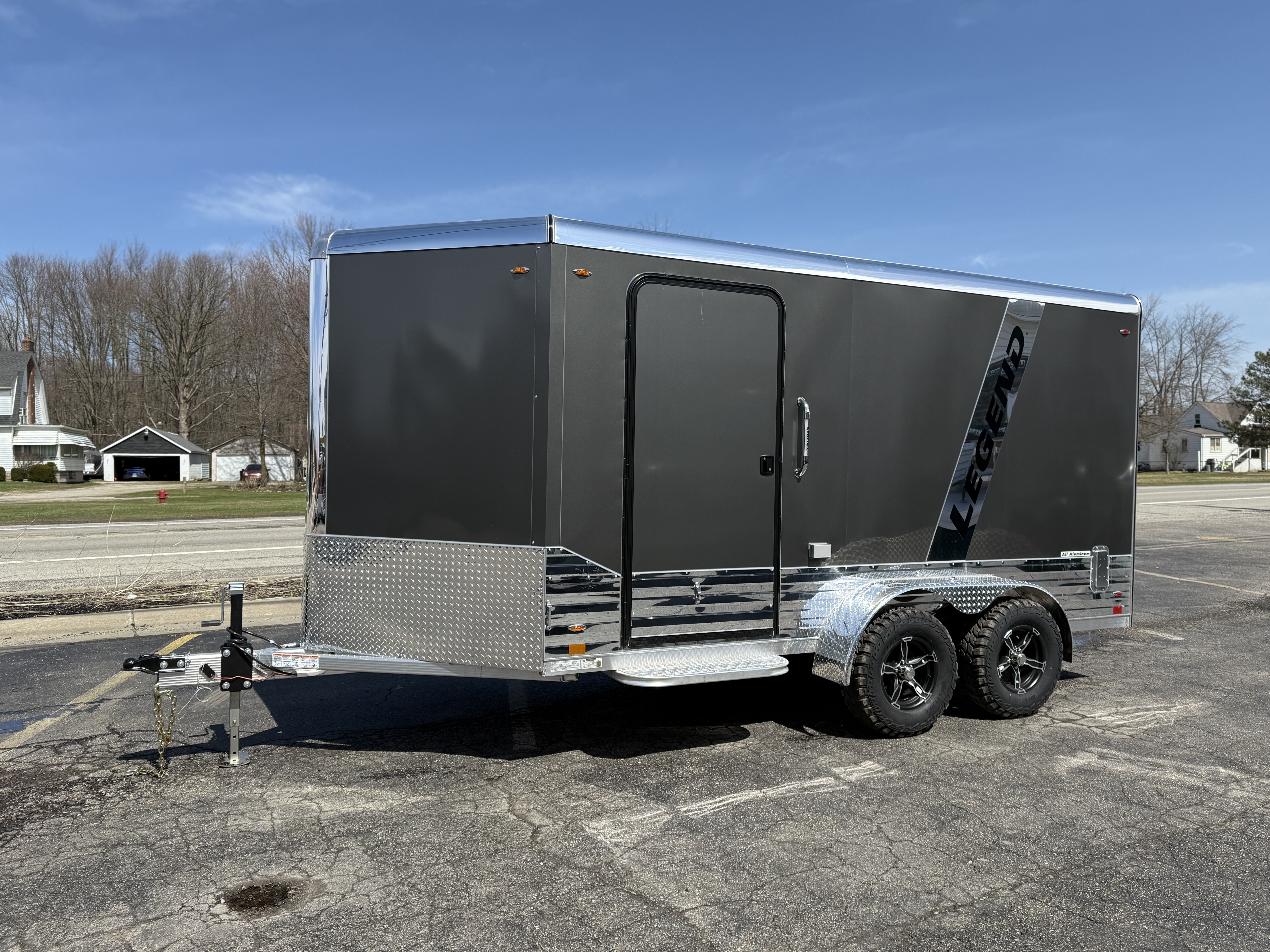

2025  Legend  7x17 Deluxe V-Nose Enclosed Cargo Trailer  - 14657

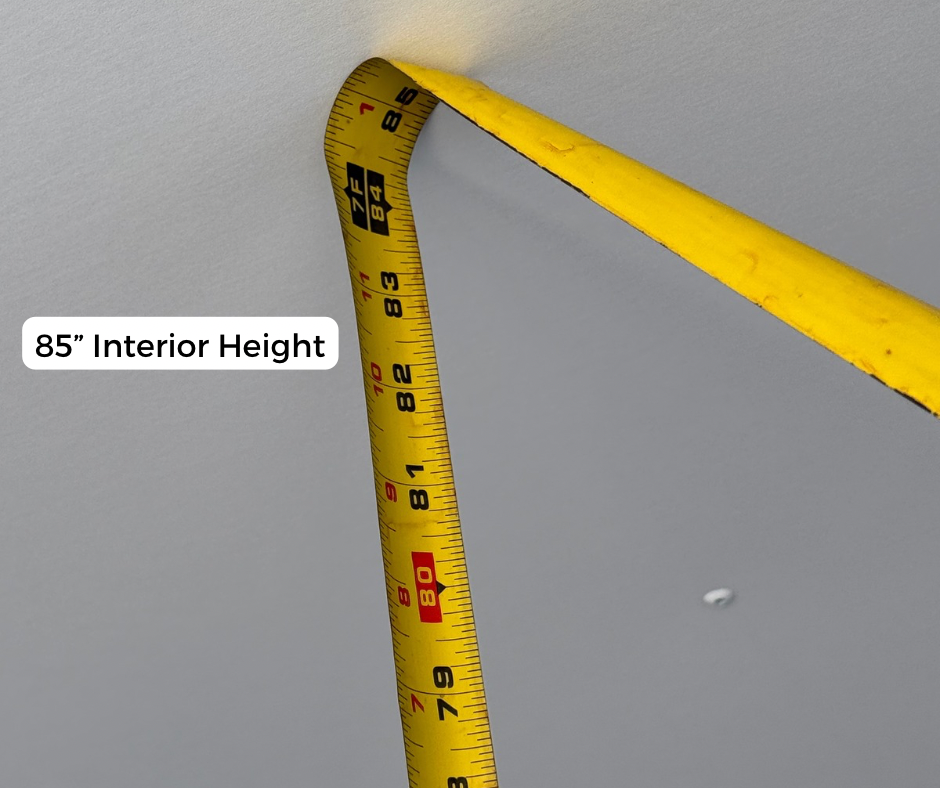

HEIGHT: 6" ADDITIONAL: 84" INTERIOR HEIGHT

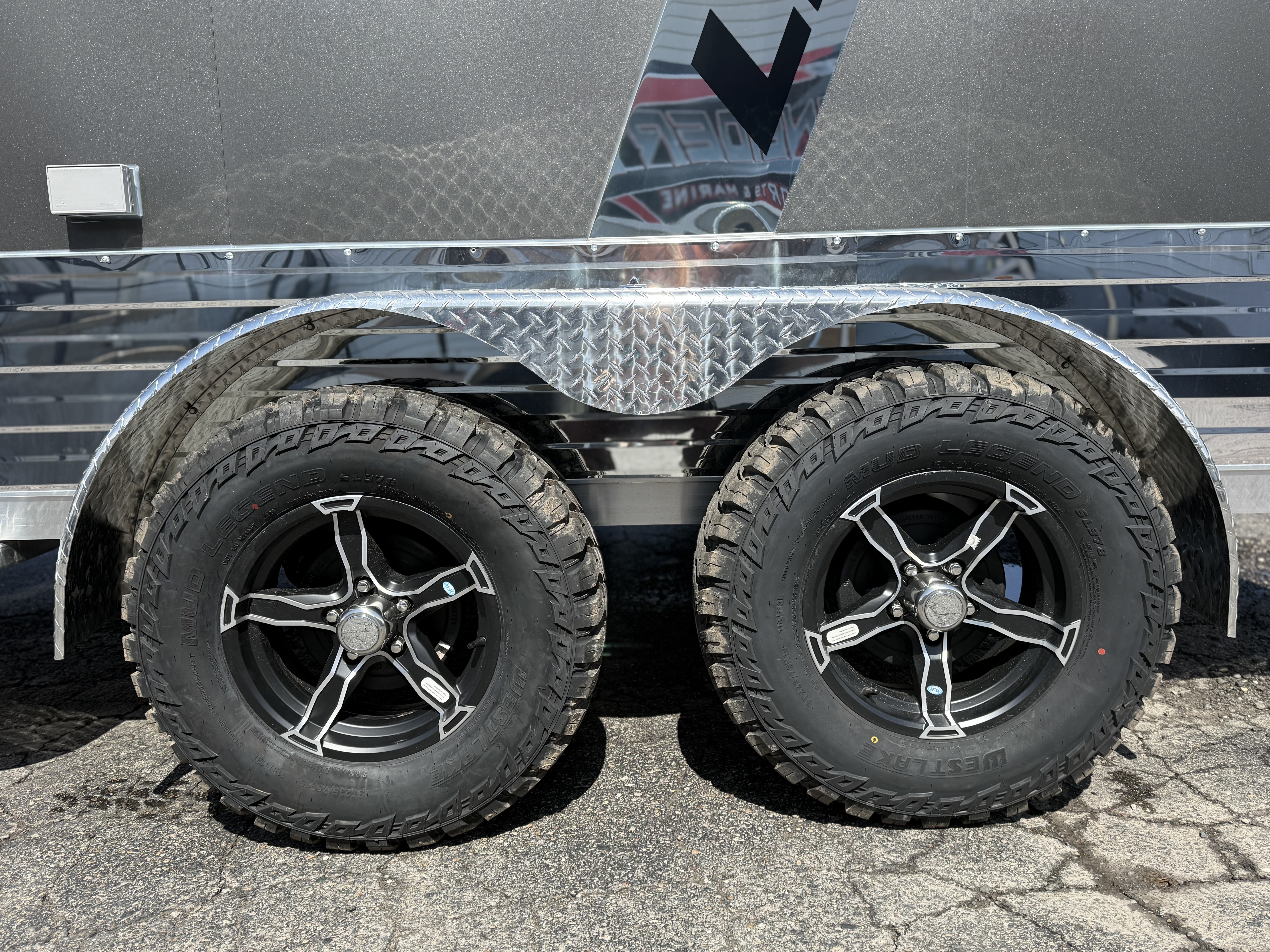

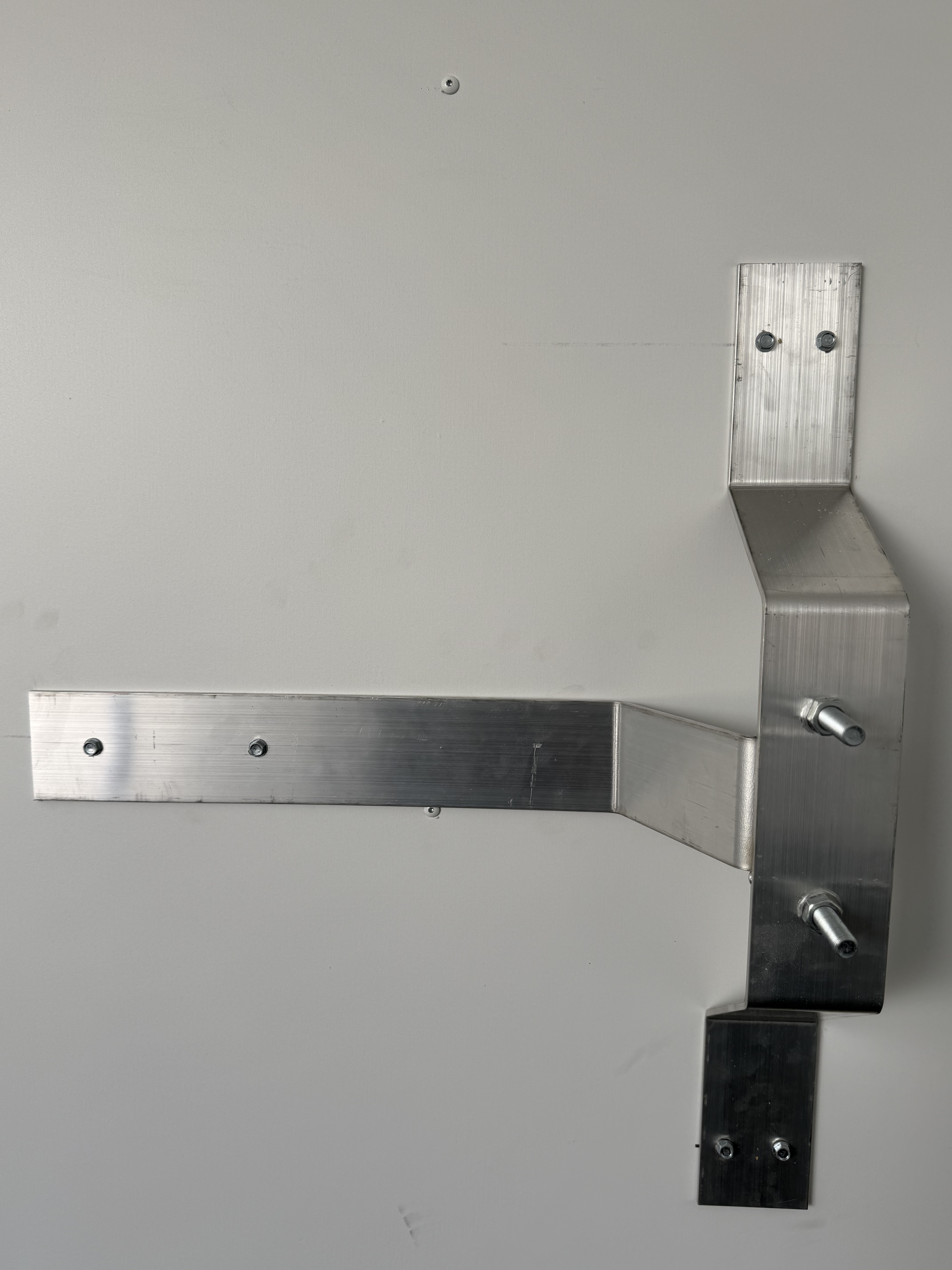

TIRES & WHEELS: (QTY 4) RADIAL BLACK ALUMINUM BAJA 15" 5-BOLT 30X9.50R15 SPARE TIRE MOUNT: (QTY 1) SPARE TIRE MOUNT
BEAVERTAIL: 24" NO-SHOW
FLOOR CROSS MEMBERS: 16" OC FLOOR
TONGUE JACK: 7000# JACK WITH DROP LEG FOOT
RAMP OPTION: REINFORCED RAMP (2 EXTRA VERTICALS & 4 HINGES)

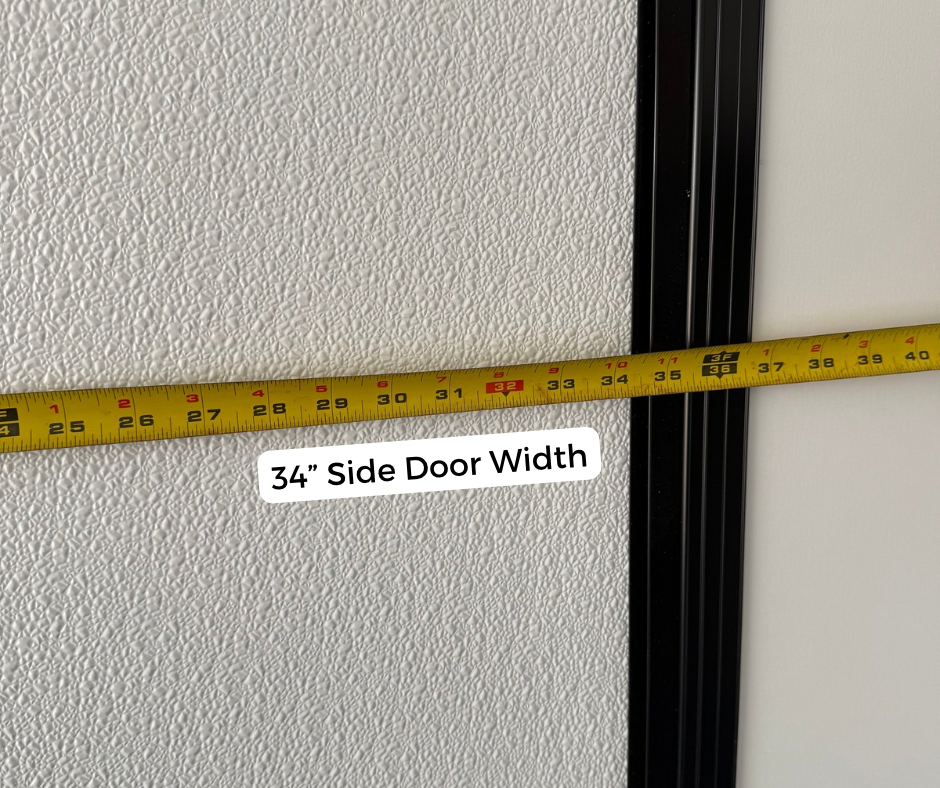

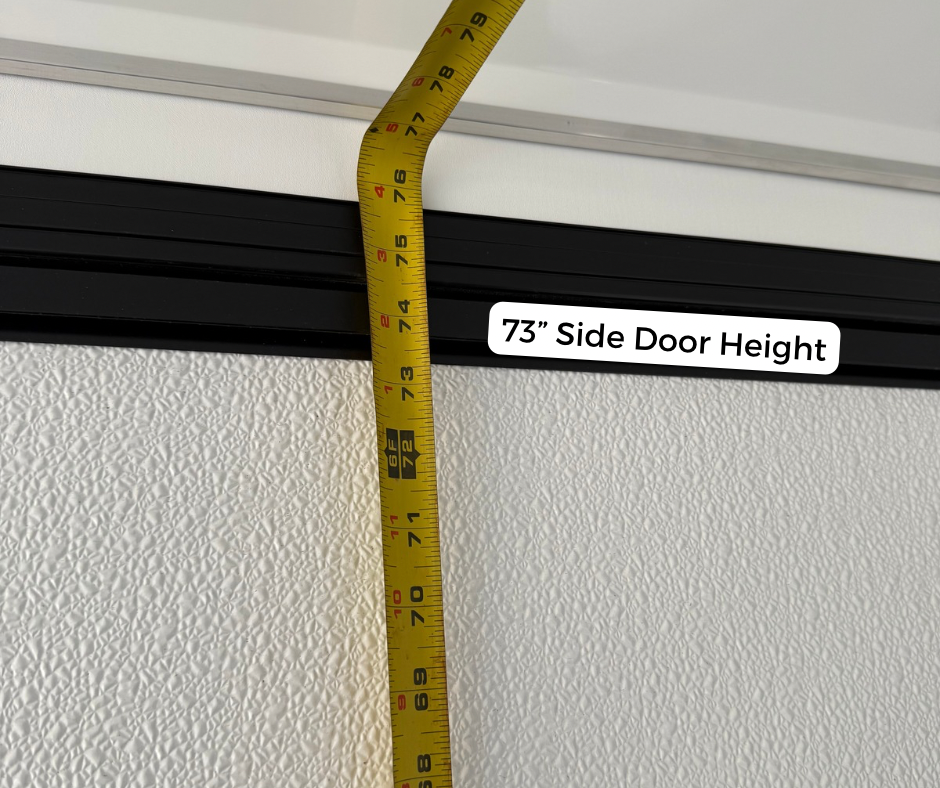

SIDE DOOR: RADIUS 36X74 ROADSIDE / BLACK FRAME
SIDE DOOR HOLD BACK: (QTY 1) 4" ALUMINUM HOLD BACK
FLOOR COVERING: 3/4" SUPERSTRATUM
REAR DOOR COVERING: 3/4" SUPERSTRATUM

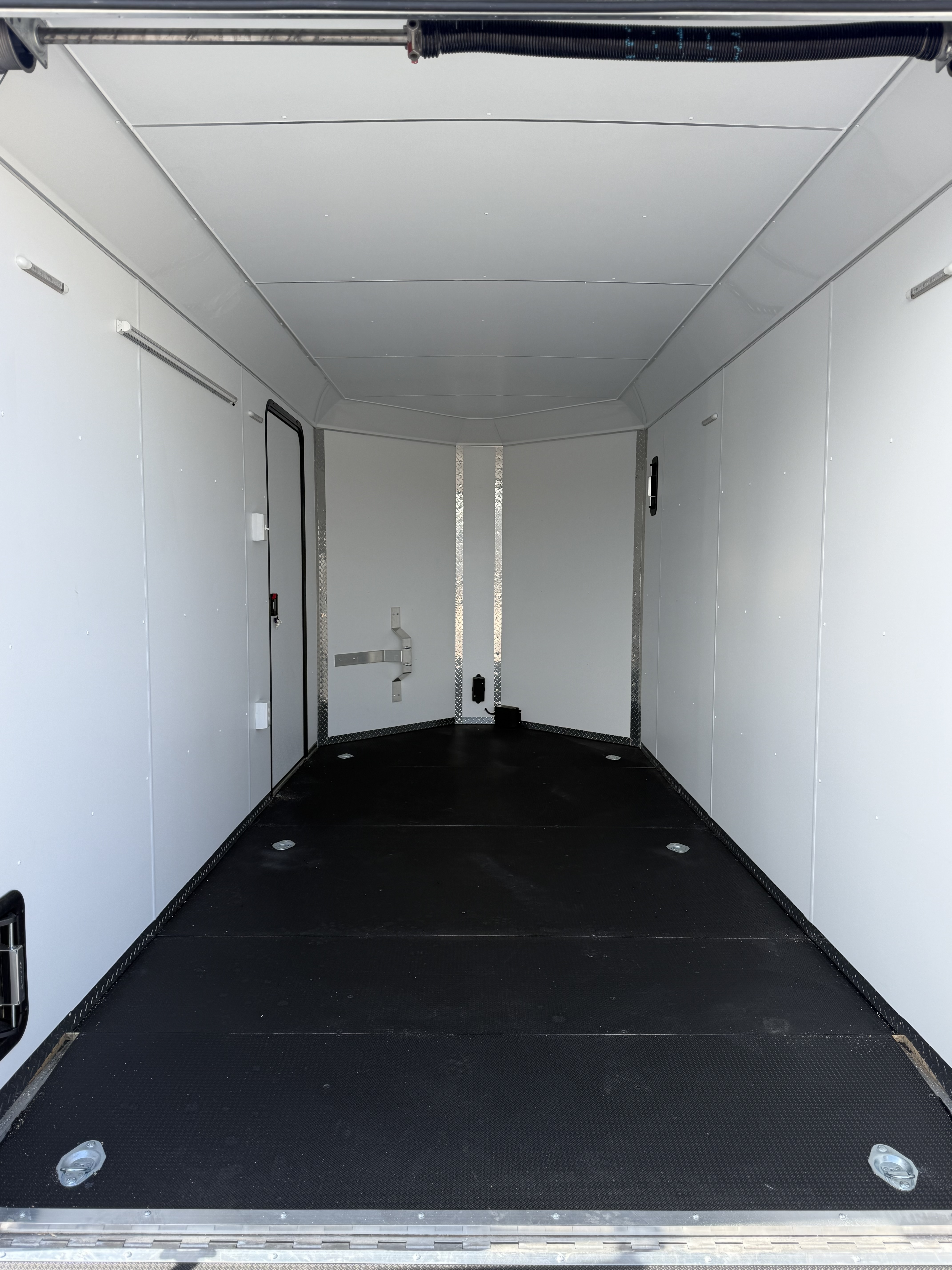

INTERIOR WALLS: 3/8" WOOD W/ WHITE VINYL

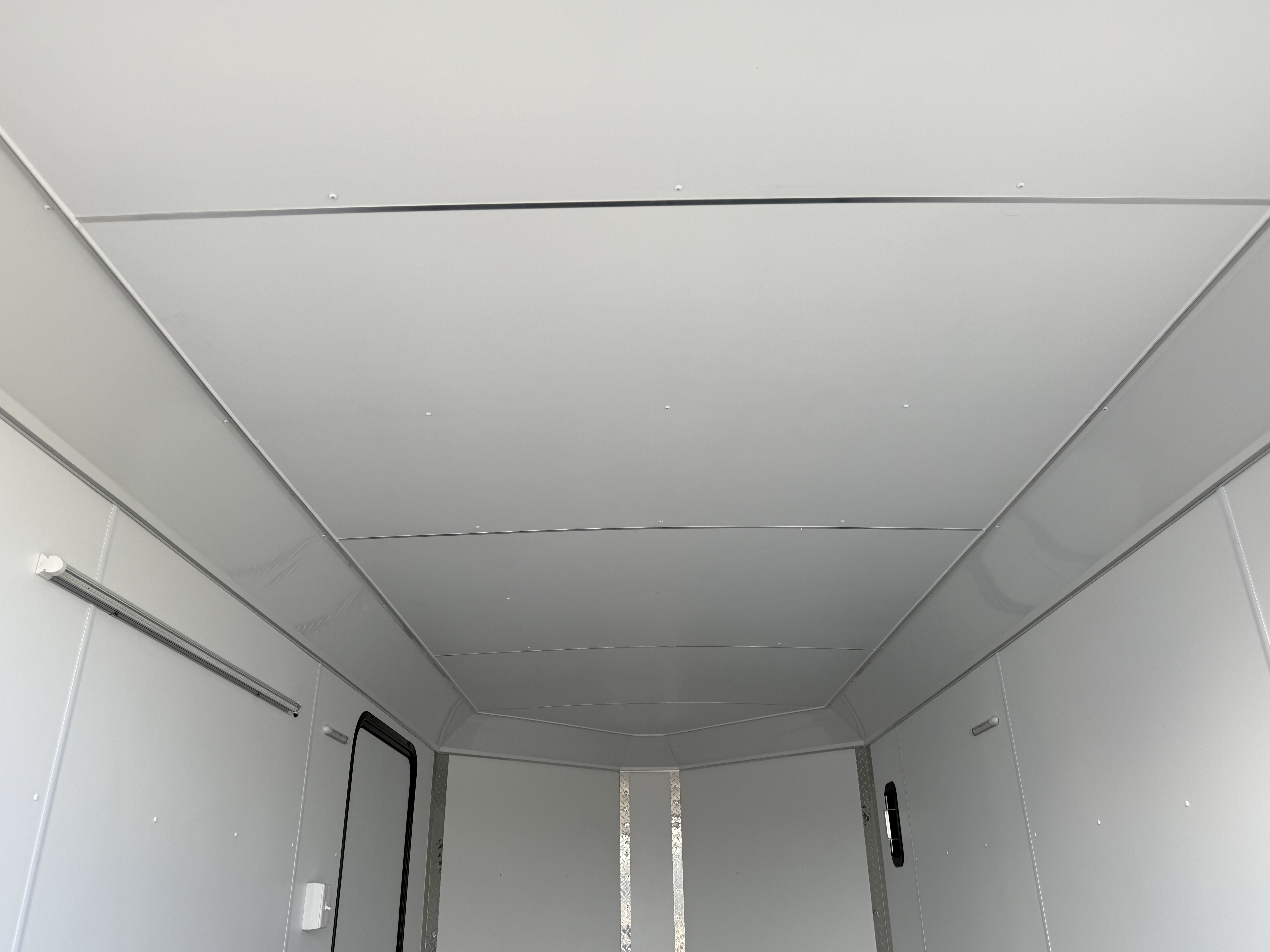

CEILING: BUTLER WHITE VINYL CEILING
1000# D-RINGS: (QTY 6) 1000# D-RINGS INSTALLED

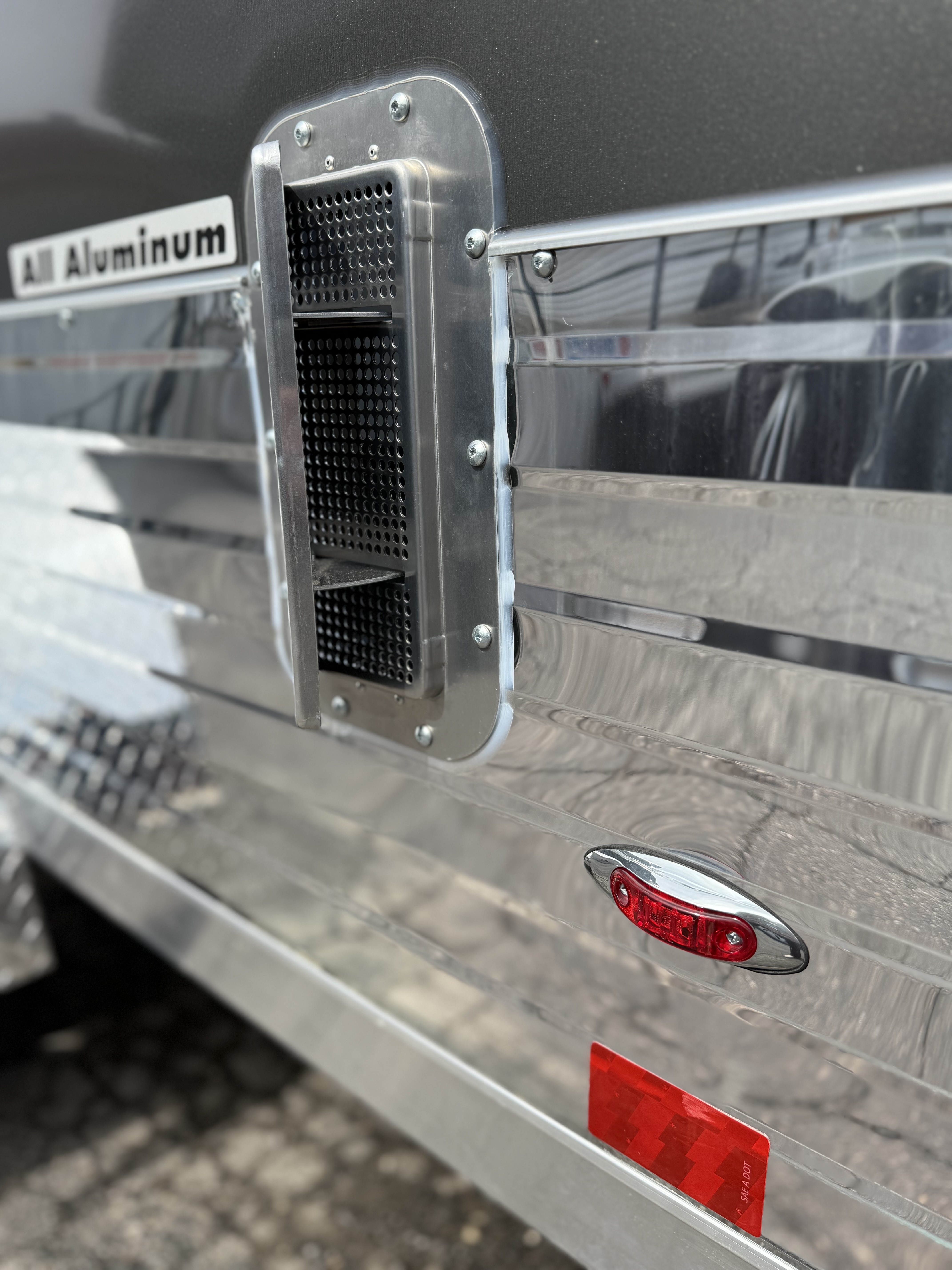

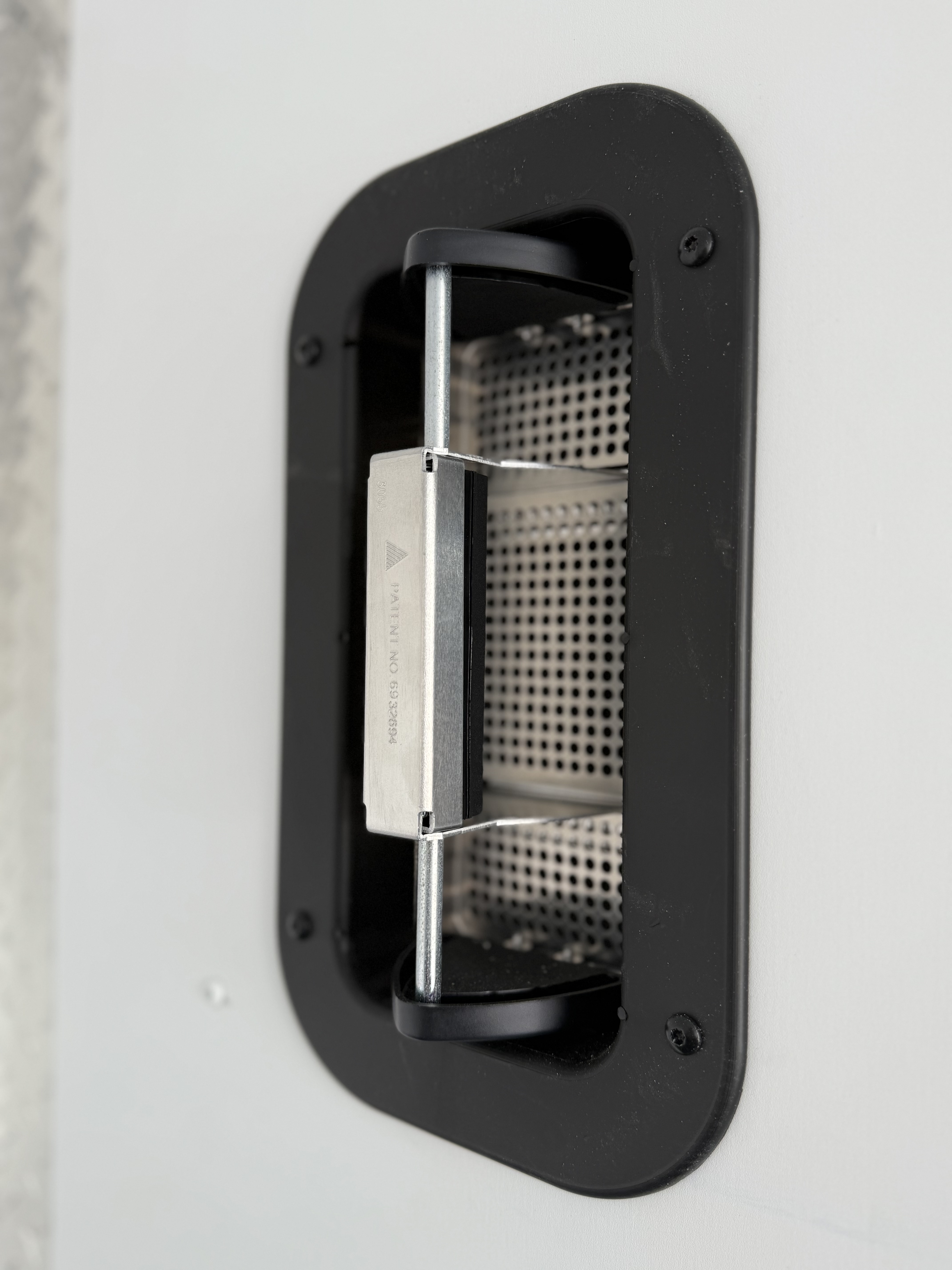

SIDE VENTS: (1 PAIR) SALEM VENTS 2-WAY

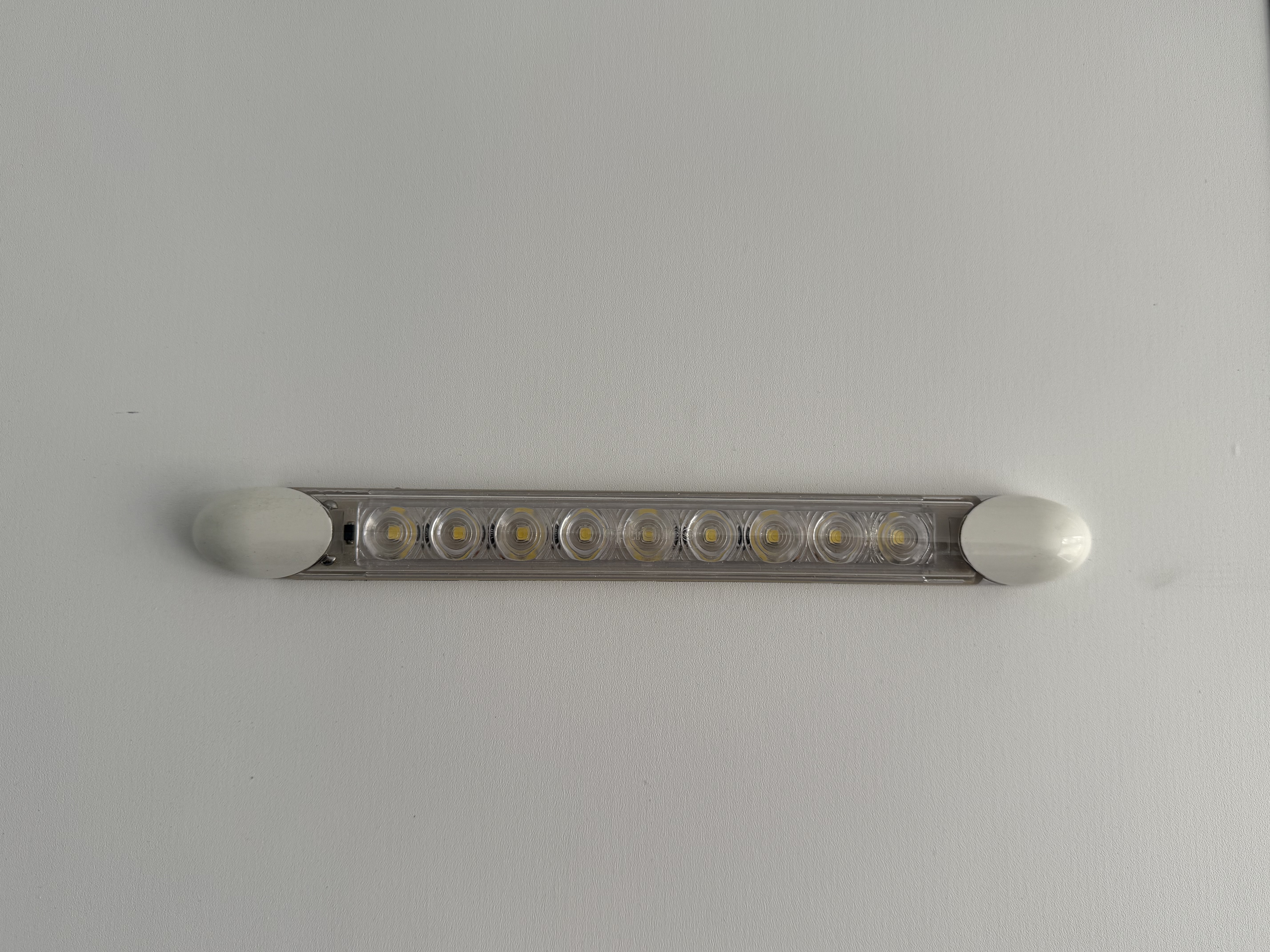

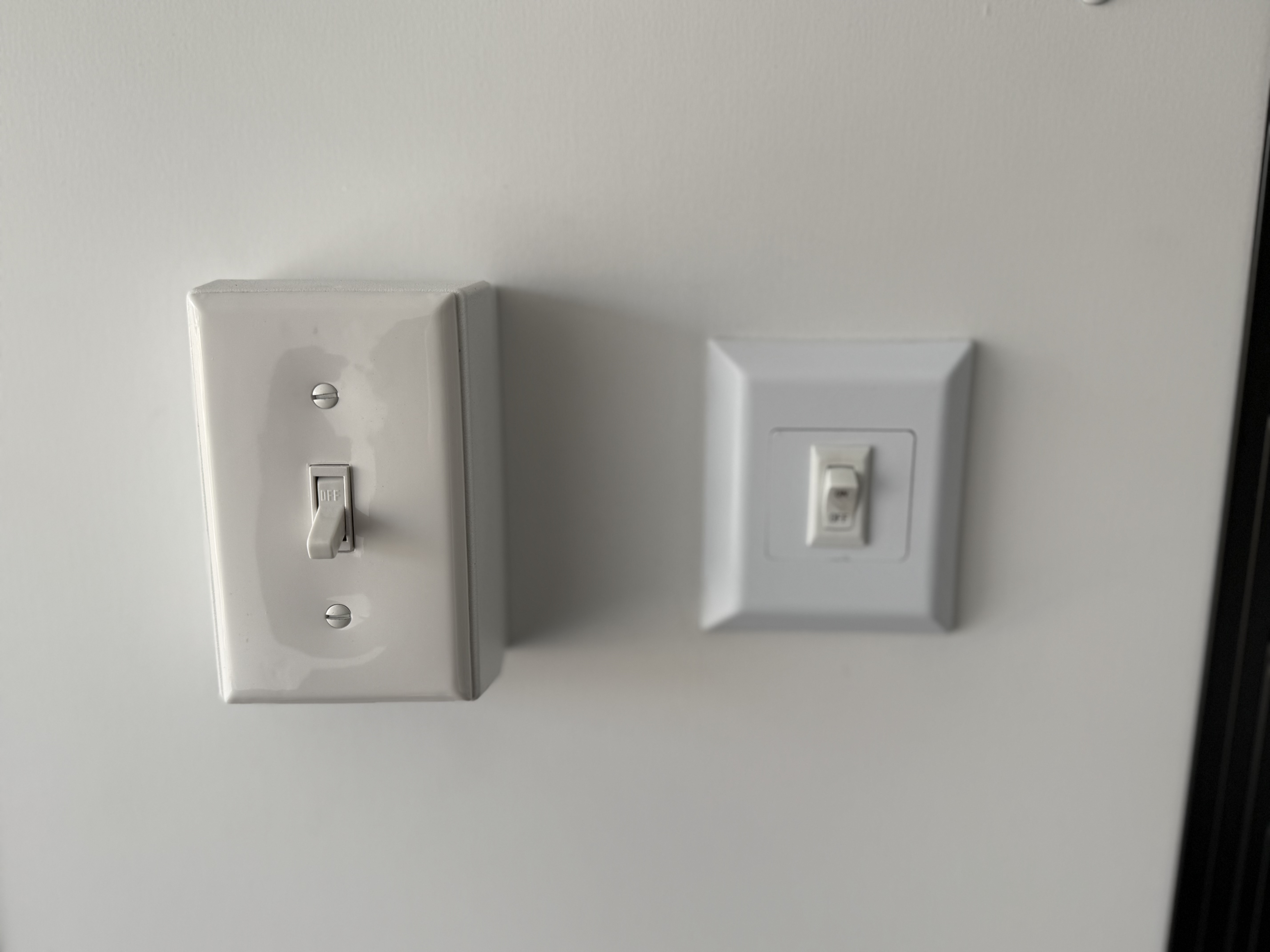

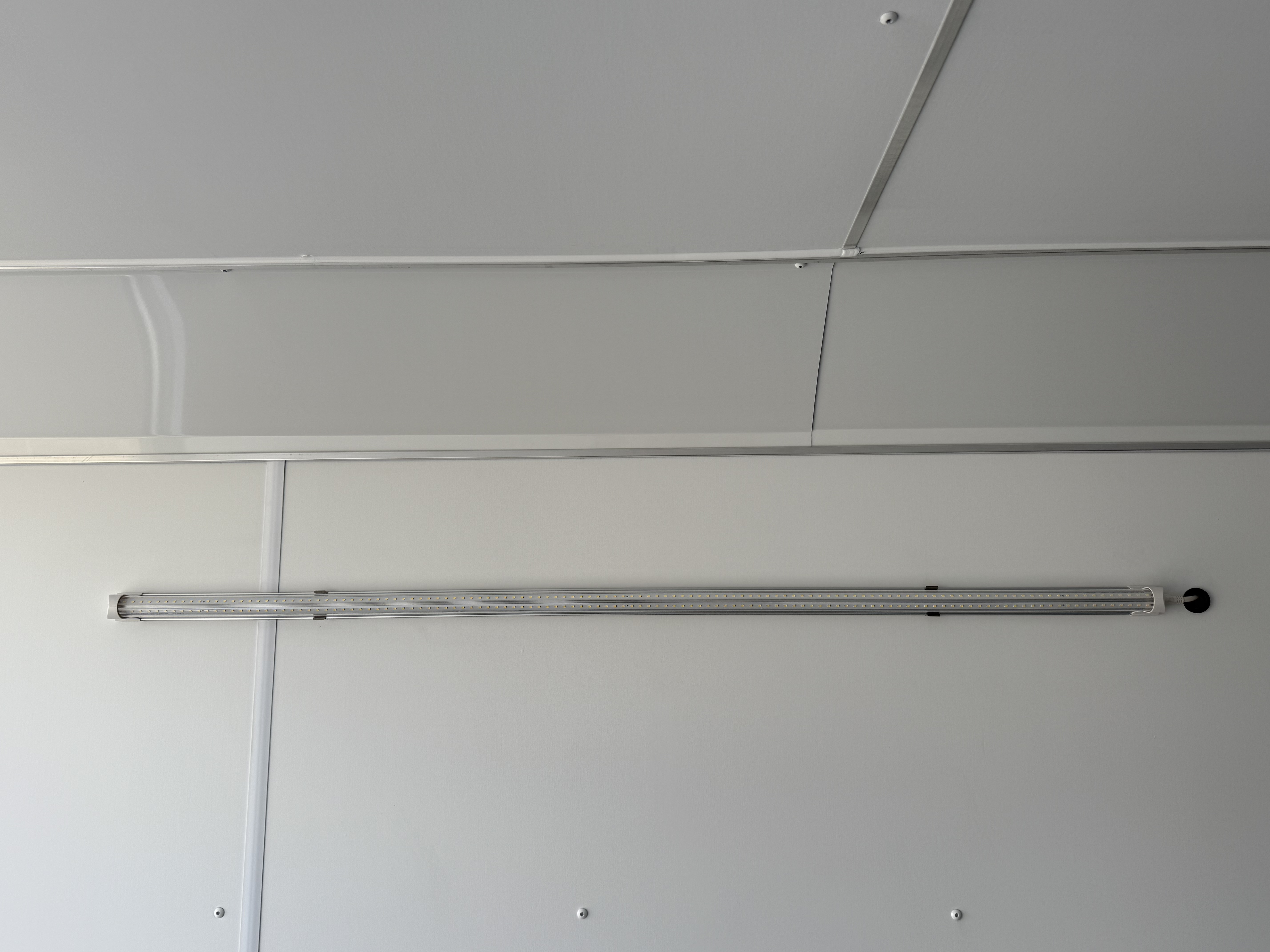

DOME LIGHTS: (QTY 4) 8" LED DOME LIGHTS W/12V SWITCH
110V PACKAGE: BRONZE

RUNNING GEAR:
Axle Type E-Z Lube Torsion
Axle Size 3,500#
Brakes 2 Electric Brakes
Tire Size ST205/75R15
Wheels Gunmetal or Black Aluminum

STRUCTURAL:
Cross Members Size 2” x 3” Tube
Cross Member Spacing 24” OC
Frame 2” x 4” Perimeter Tube
Roof Bow Size 1” x 1” Radius Tube
Roof Bow Spacing 24” OC w/ Stringers
Roof Profile Radius Roof
Roof Type One Piece All Aluminum
Wall Stud Size 1” x 1.5” Tube
Wall Stud Spacing 16” OC

FLOOR/SKINS:
Floor 3/4” Engineered Wood Panel
Interior Walls 3/8” Engineered Wood Panel
Ceilings Optional Finishes
Exterior Skin Bonded, Screwless, .030 Alum., Divider Strip w/ Decal

ELECTRICAL:
Dome Lights 2-12v Rectangle LED Domes w/ Wall Switch

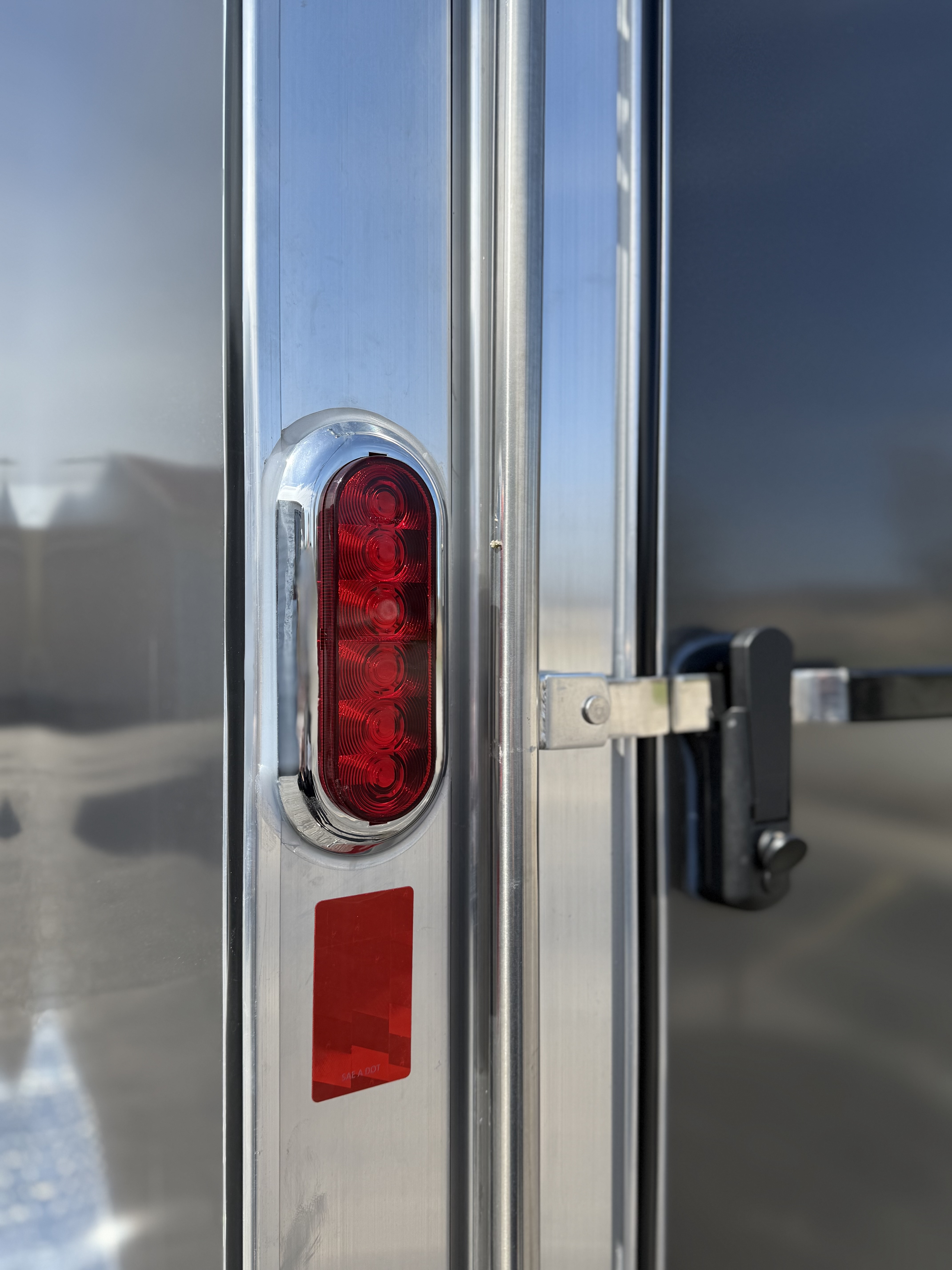

Exterior Lighting Type Surface Mount LED

COMPONENTS:
Coupler 2 5/16” Straight
Jack 2,000# Top-Wind
Fenders ATP Fender
Side Door 30” Curbside RV w/ Flush Lock & Alum. Holdback
Storage Optional
Tie Downs 4 – 1,000# D-Rings (Installed)
Vents 2- Plastic Side Air Vents

SPECS:
Models 7x17
Overall Length 242”
Overall Width 102”
Overall Height 101”

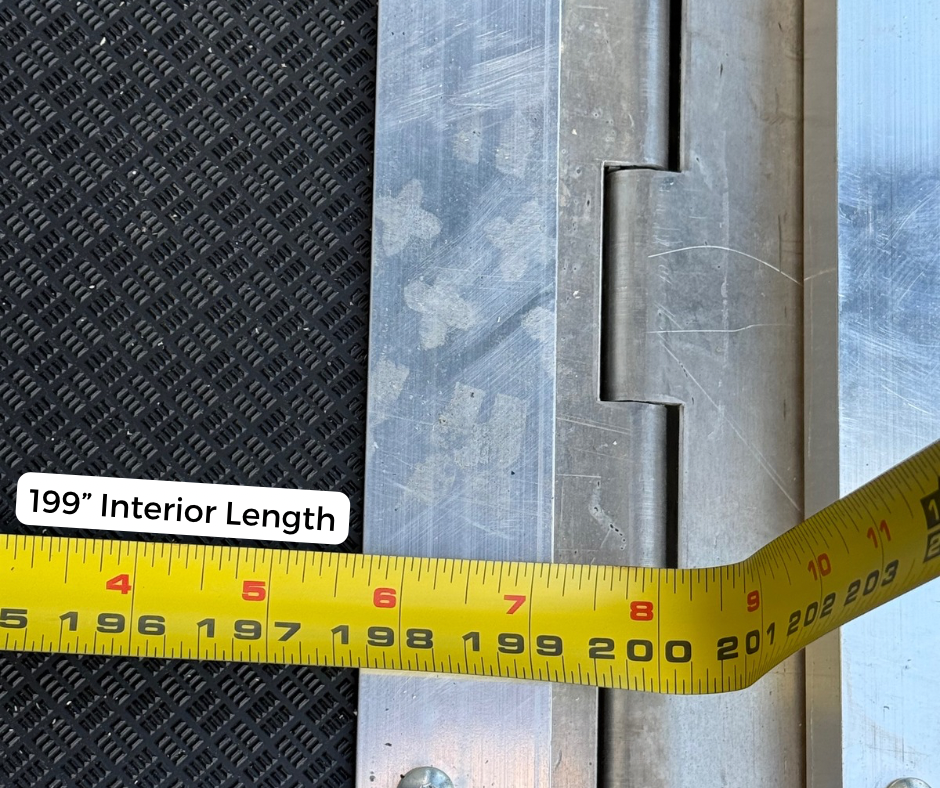

Interior Box Length + V 14’+3′
Interior Box Width 79”
Interior Height 78”

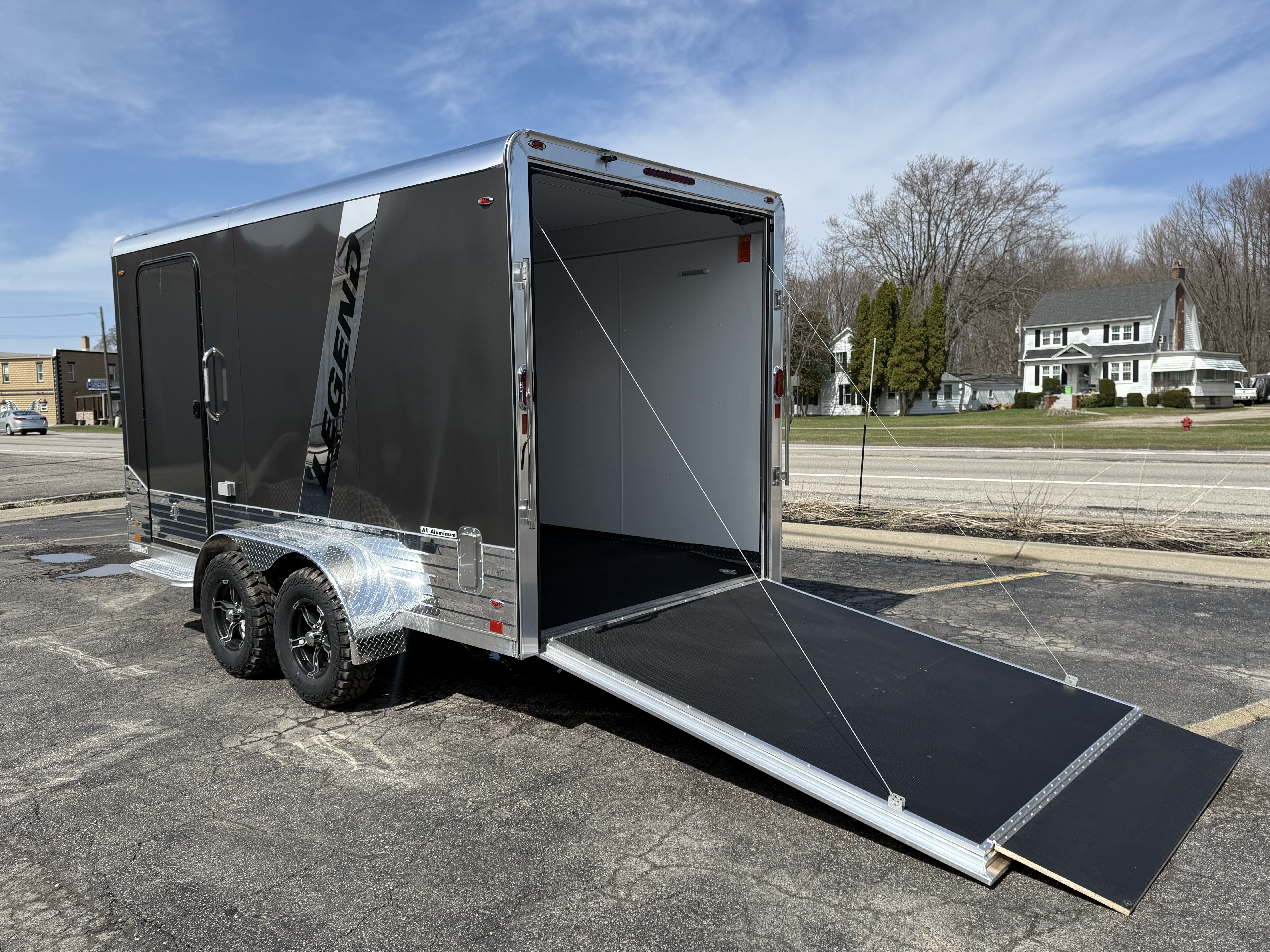

Rear Door Type Ramp Door
Rear Door Height 73”

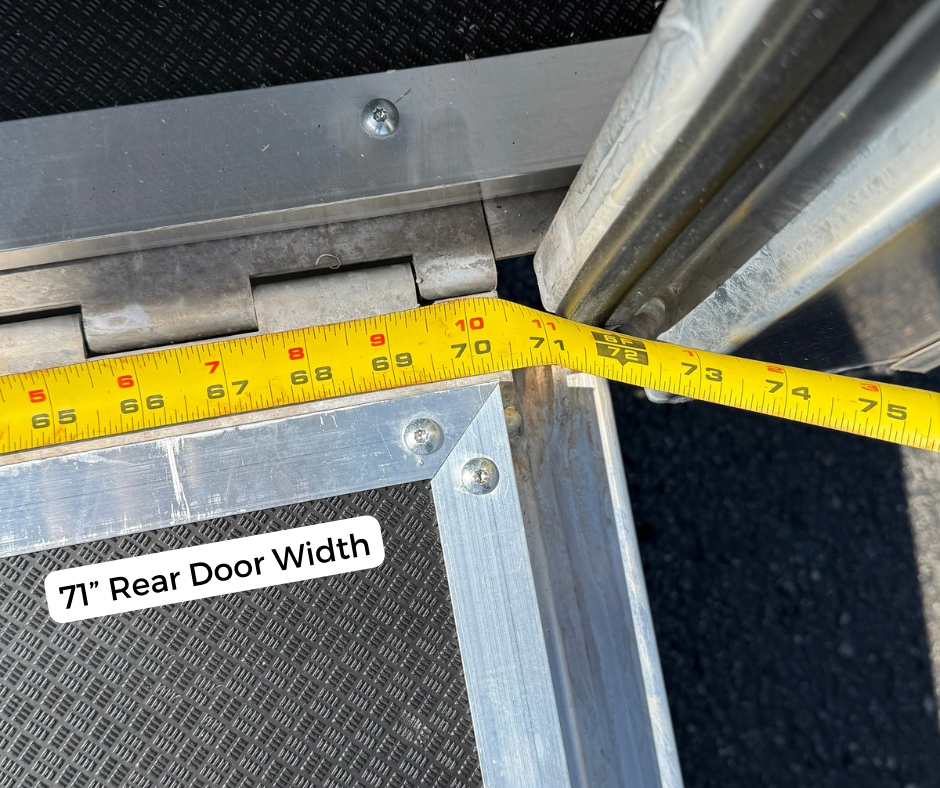

Rear Door Width 71”
