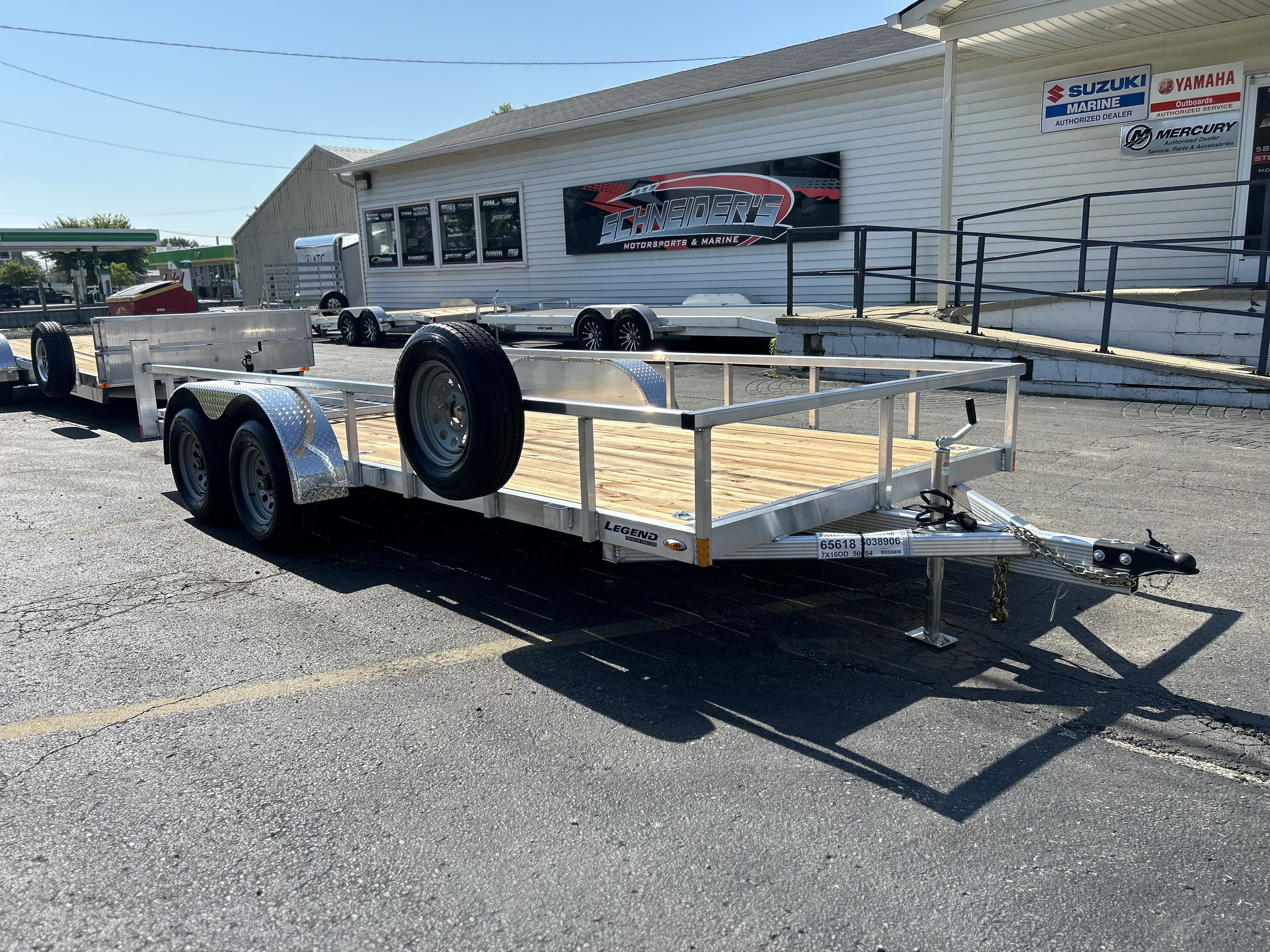

2025  Legend  7x16 Open Deluxe Tandem Axle Utility Trailer  - 12695

TANDEM AXLE: 3500# 5-BOLT SPRING BRAKE 95/80
HITCH: 2 5/16” COUPLER

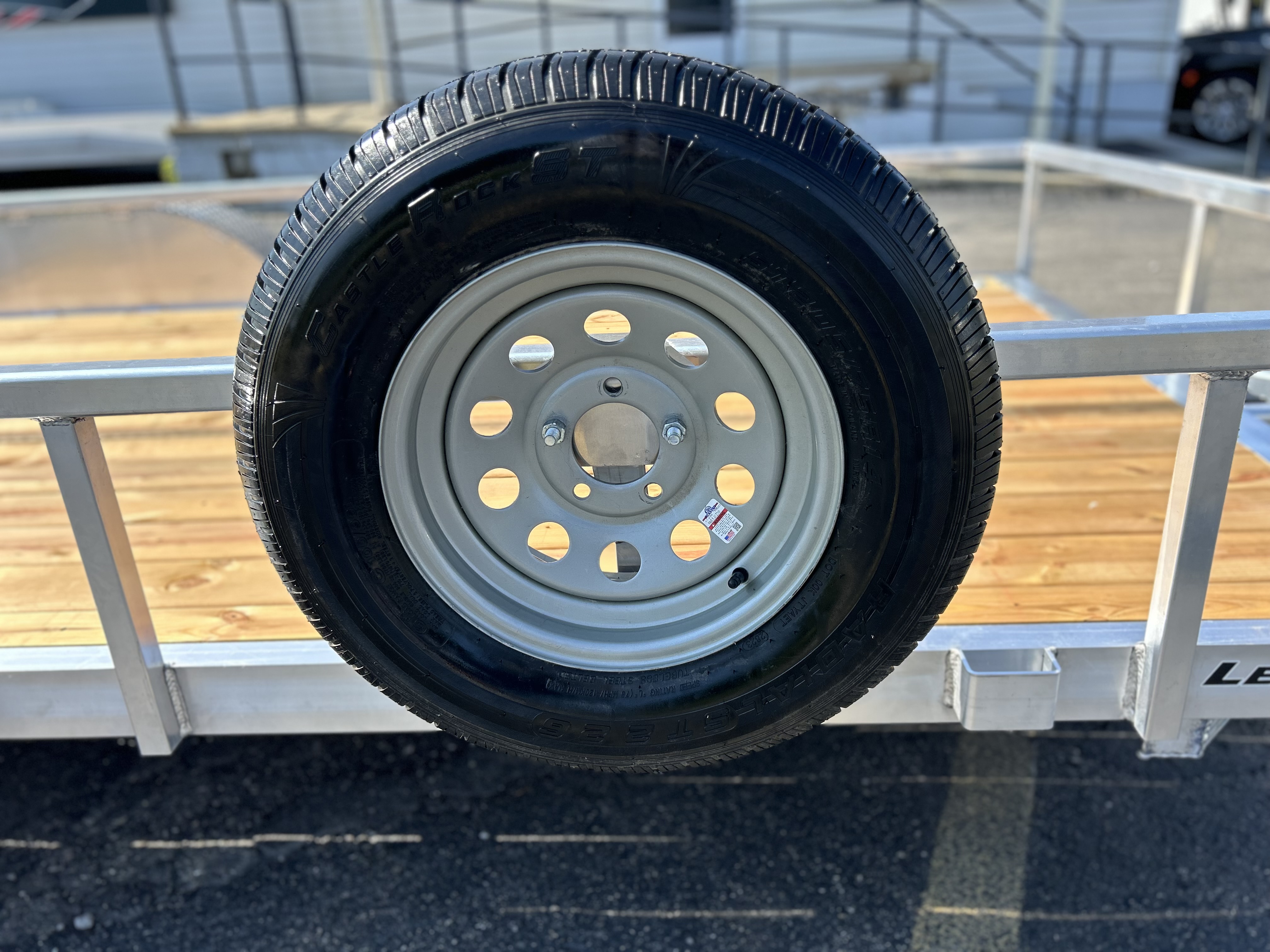

SPARE TIRE: RADIAL STEEL SILVER 14” 5-BOLT ST205/75R14
SPARE TIRE MOUNT: (QTY 1) SPARE TIRE MOUNT
REAR RAMP GATE: 80” X 48” REINFORCED RADIUS (2 EXTRA VERTS & 1 EXTRA HINGE)
1000# D-RINGS: (QTY 6) 1000# D-RINGS INSTALLED

RUNNING GEAR:

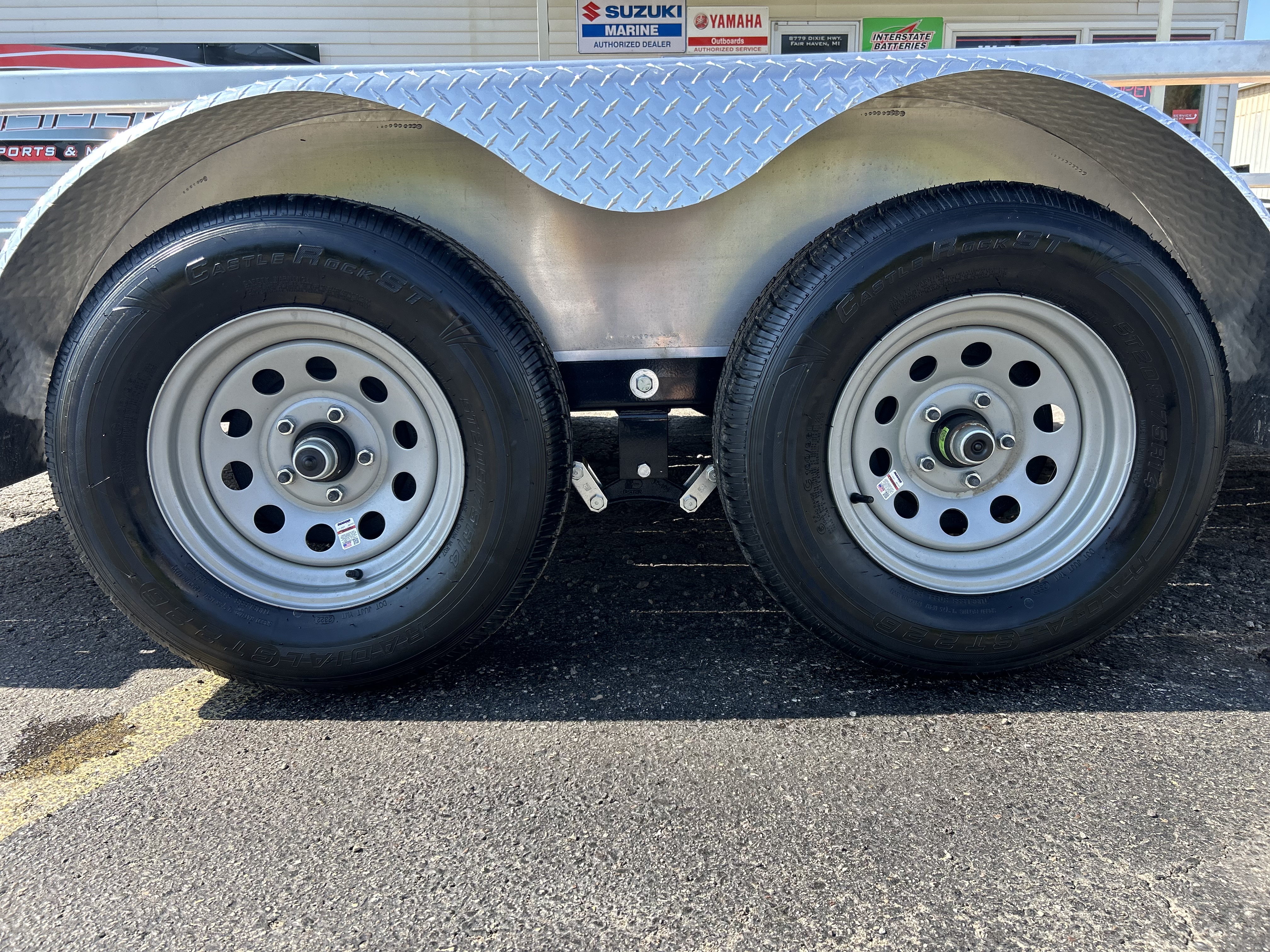

Axle Type EZ-Lube 4” Drop Spring
Axle Size 3,500#
Brakes 1 Electric Brake, 1 Idler
Tire Size ST205/75R14
Wheels Silver Mod Steel

STRUCTURAL:
Cross Member Size 2” x 3” Tube
Cross Member Spacing 24” OC
Frame 2” x 4” Tube
Rail Uprights 1.5” x 1.5” Tube
Tongue 3” x 6” Tube
Top Rail 2” x 2” Tube

FLOOR/SKINS:
Floor Dura Color Radius Edge Decking

ELECTRICAL:
Exterior Lighting Type Surface Mount LED

COMPONENTS:
Coupler 2” Straight
Jack 2,000# Top-Wind
Fenders ATP Fender
Tie Downs Optional
Stake Pockets Included

SPECS:
Models 7x16
Overall Length 234”
Overall Width 102”
Overall Height 32”
Interior Box Length 192”
Interior Box Width 81.5”
Deck Height 17”
Top Rail Height 15”
Rear Load Type 48” Ramp Gate
