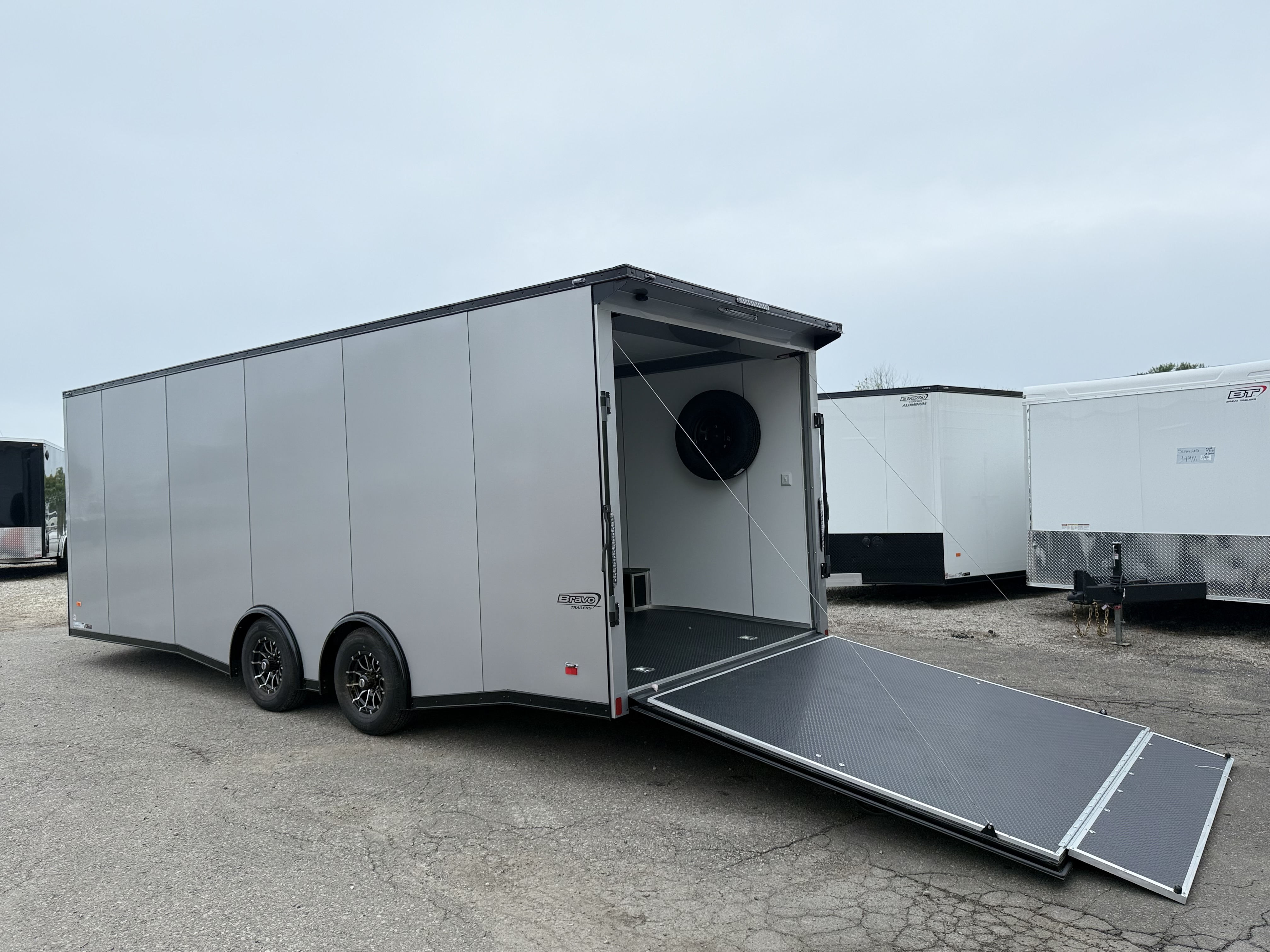

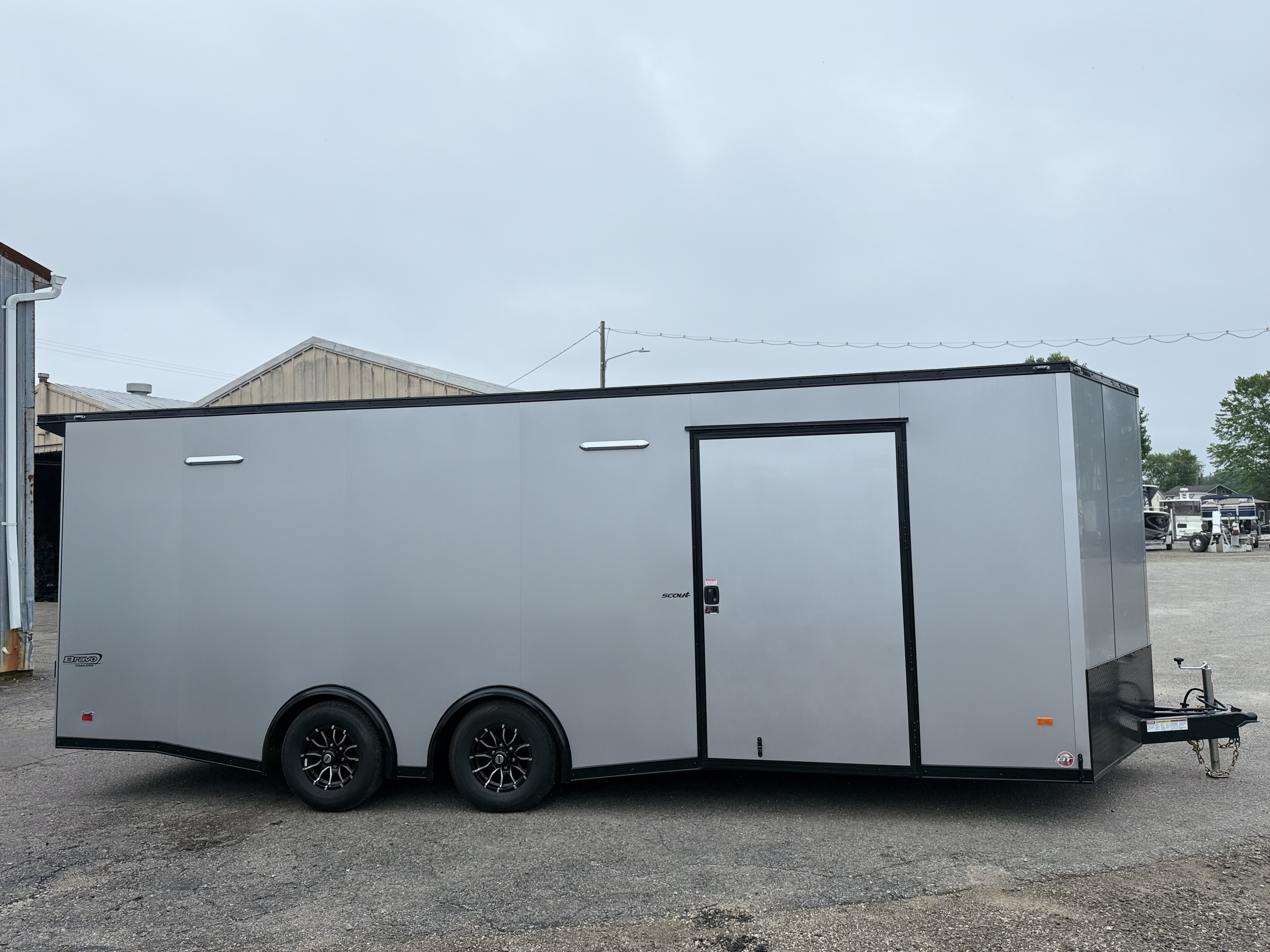

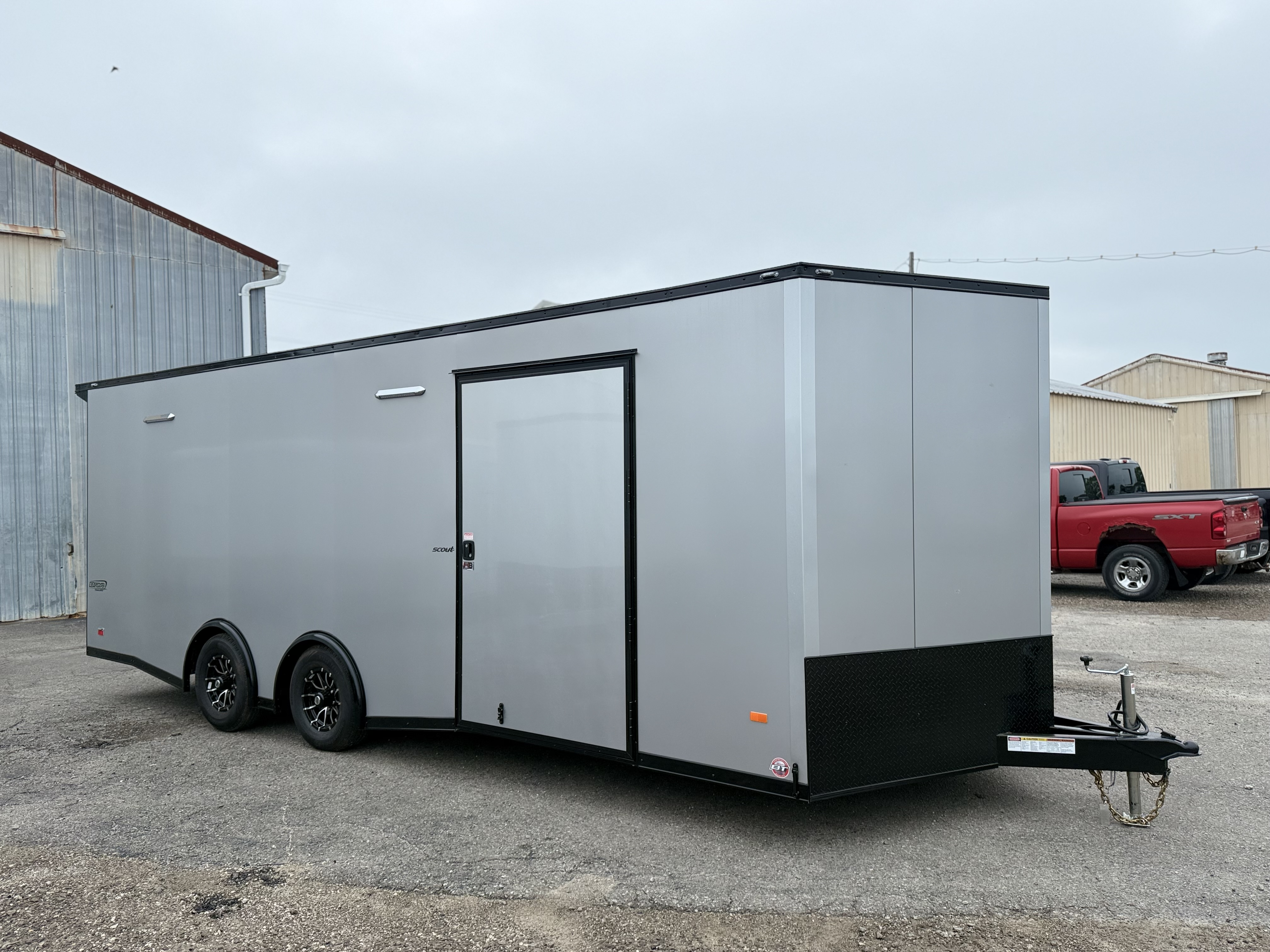

2025  Bravo  8.5X22 Scout Performance Tandem Axle Enclosed Cargo Trailer  - 49277

DRY WEIGHT: 4750
GVWR: 9990
PAYLOAD CAPACITY: 5764
INTERIOR HEIGHT: 7'

SCP8522TA3
SCOUT PERFORMANCE TRAILER
5200# TANDEM TORSION AXLES
GVWR RATED @ 9990#
SCOUT SPREAD AXLE W/ SIMPLE ANGLE SKIRT
*INCLUDES 3" BOTTOM TRIM
MILL FINISH ALUMINUM FENDERS
ELECTRIC BRAKES
6" TUBE FRAME
CROSS MEMBERS @ 16"O.C.
81-3/4" TUBE WALL POSTS @ 16" O.C.
INTERIOR HEIGHT APPROX. 7'
TUBE ROOF MEMBERS @ 16"O.C.
***
54" TRIPLE TUBE TONGUE
2-5/16" COUPLER 14K
PAINTED TONGUE JACK W/SANDFOOT (2000# CAPACITY)
***
ST225/75R15/LRD 15" RADIAL TIRES
***
ALUMINUM ROOF
***
30" V-NOSE
COLOR MATCH FRONT V
**
LED CLEAR LENS EXTERIOR LIGHTING

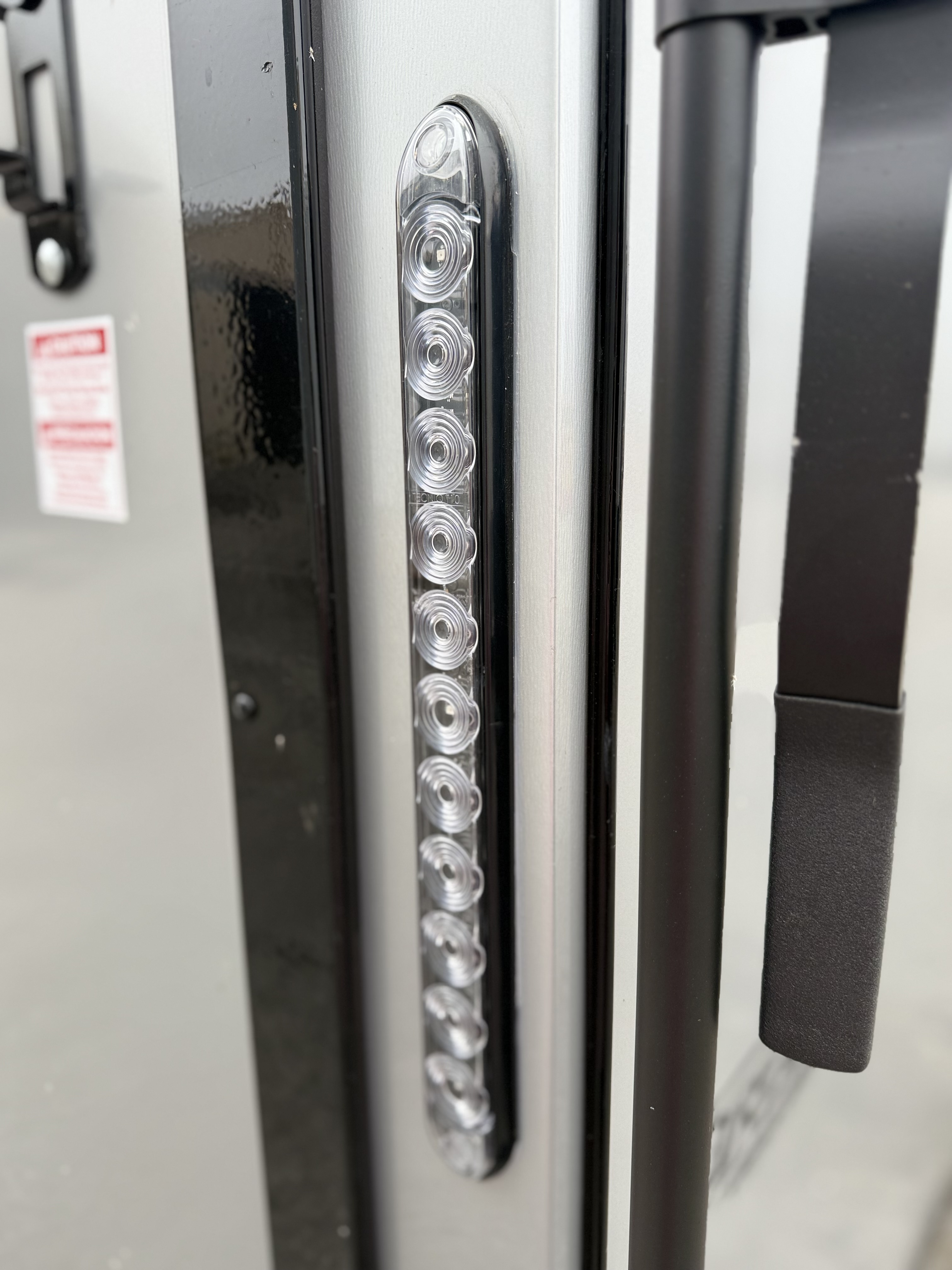

LED STRIP TAIL LIGHTS
LED LICENSE PLATE LIGHT
***
REAR WING 8" ROOF EXTENSION - 90 DEGREE
*FRAMED IN 1" X 2" TUBE
BRAVO WINGLET COLOR: BLACK
BODY MATCHED COLOR WRAPPED REAR END
***
5.2 MM WHITE VINYL CEILING
COVE COLOR: SILVER
9MM WHITE VINYL INTERIOR WALLS
*TRIMMED WITH H DIVIDER TRIM
**
3/4" ENGINEERED FLOORING, RAMP, & FLAP

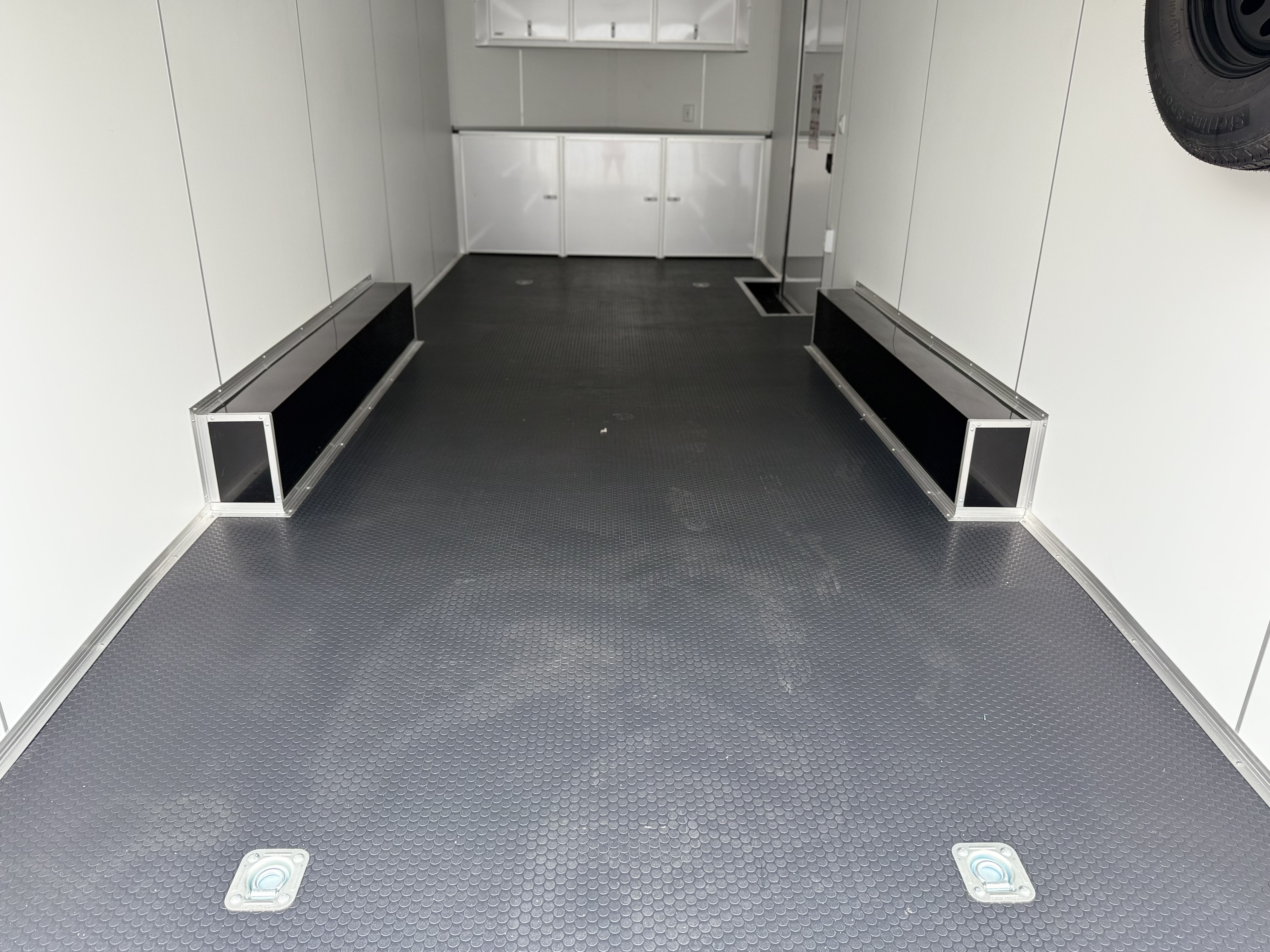

BLACK COIN FLOORING, RAMP DOOR, & FLAP
ATP ON UNDERSIDE OF FLAP
***
HEAVY DTY REAR RAMP DOOR W/FLAP
*FLAP TRIMMED WITH C-CHANNEL
RUBBER HINGE COVER
BEAVERTAIL - 48"
(QTY 4) 5000# RECESSED FLOOR D-RINGS
***
48" X 78"T HD SIDE DOOR W/ FLUSHLOCK & CAST ALUM HOLDBACK
***
(QTY 1) 18" LED CHROME LOADING LIGHT - CENTERED IN WING
(QTY 1) 12V WALL SWITCH
***

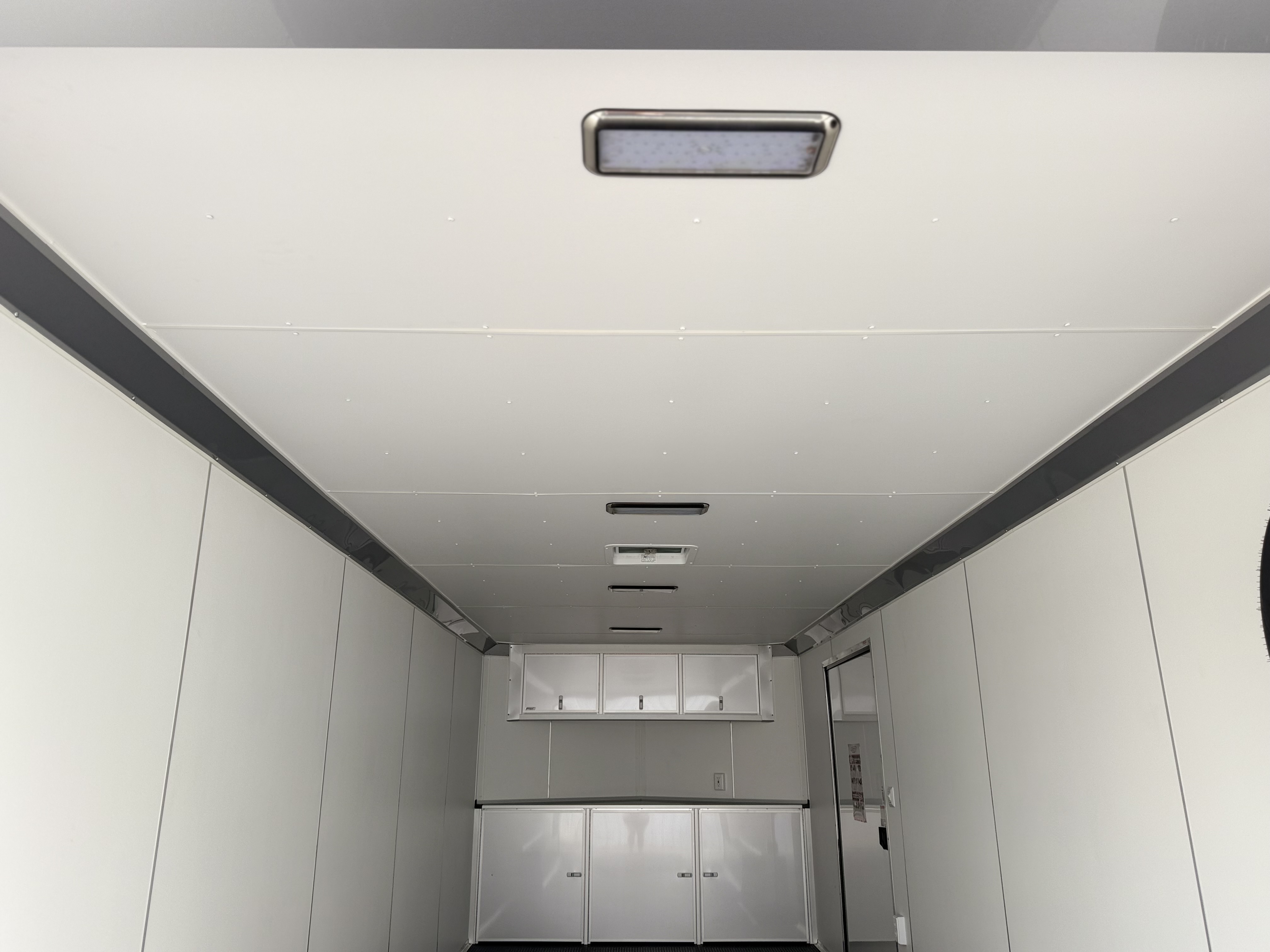

(QTY 4) LED 14" 12V SURFACE MOUNT LIGHTS W/CHROME BEZELS
(QTY 1) 12V WALL SWITCH
***
(QTY 2) 110V INTERIOR RECEPTS (1 FOR CONVERTER)
(QTY 1) 15AMP RECEPT W/3.1 AMP USB

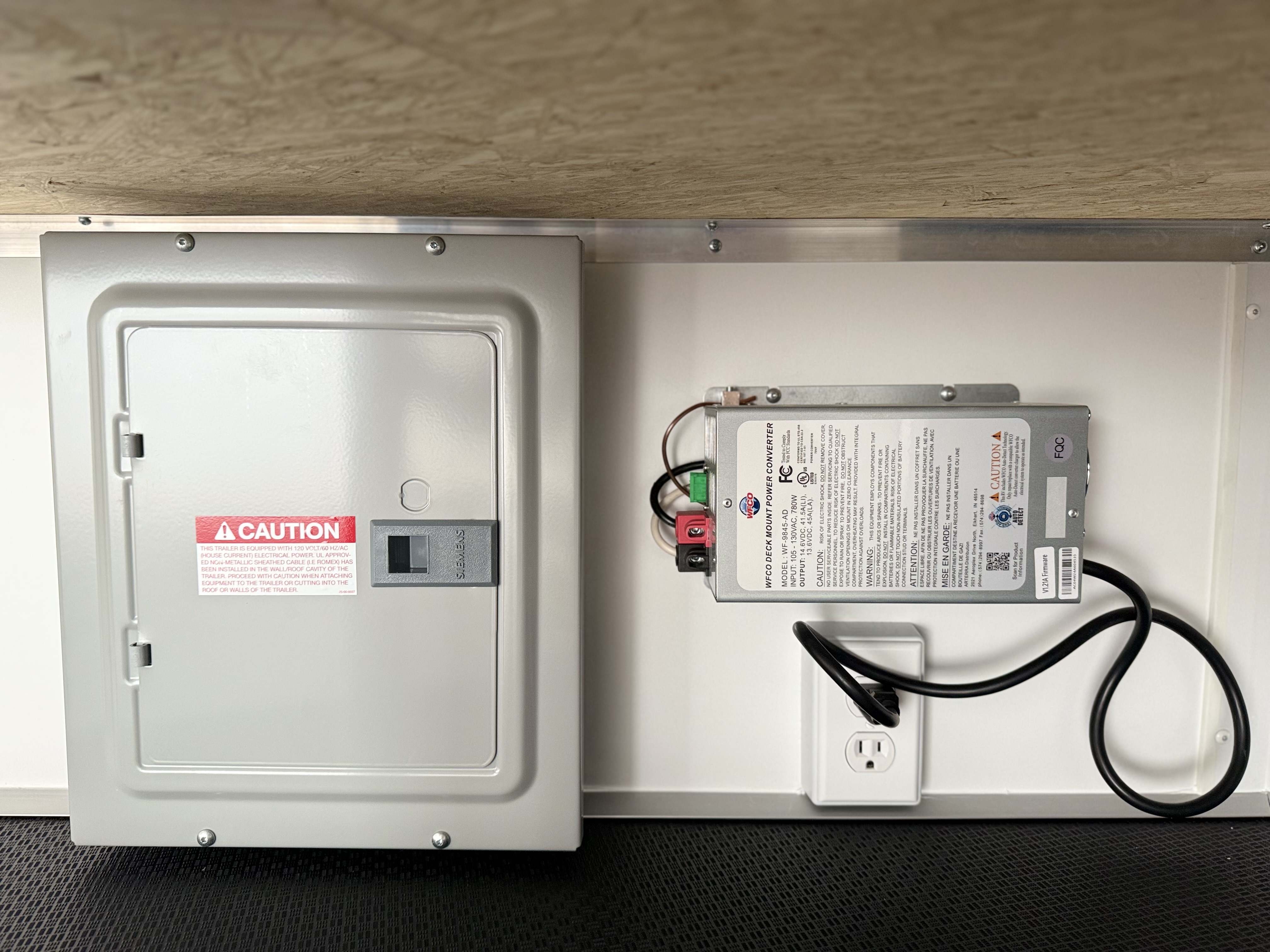

(QTY 1) 30 AMP PANEL W/MOTORBASE PLUG
(QTY 1) 45 AMP CONVERTER W/BATTERY CHARGER
(QTY 1) 12V BATTERY & BOX - INTERIOR
SHIP LOOSE: 36' LIFELINE FOR 30A MOTORBASE PLUG
***
(QTY 1) NON-POWERED ROOF VENT
***

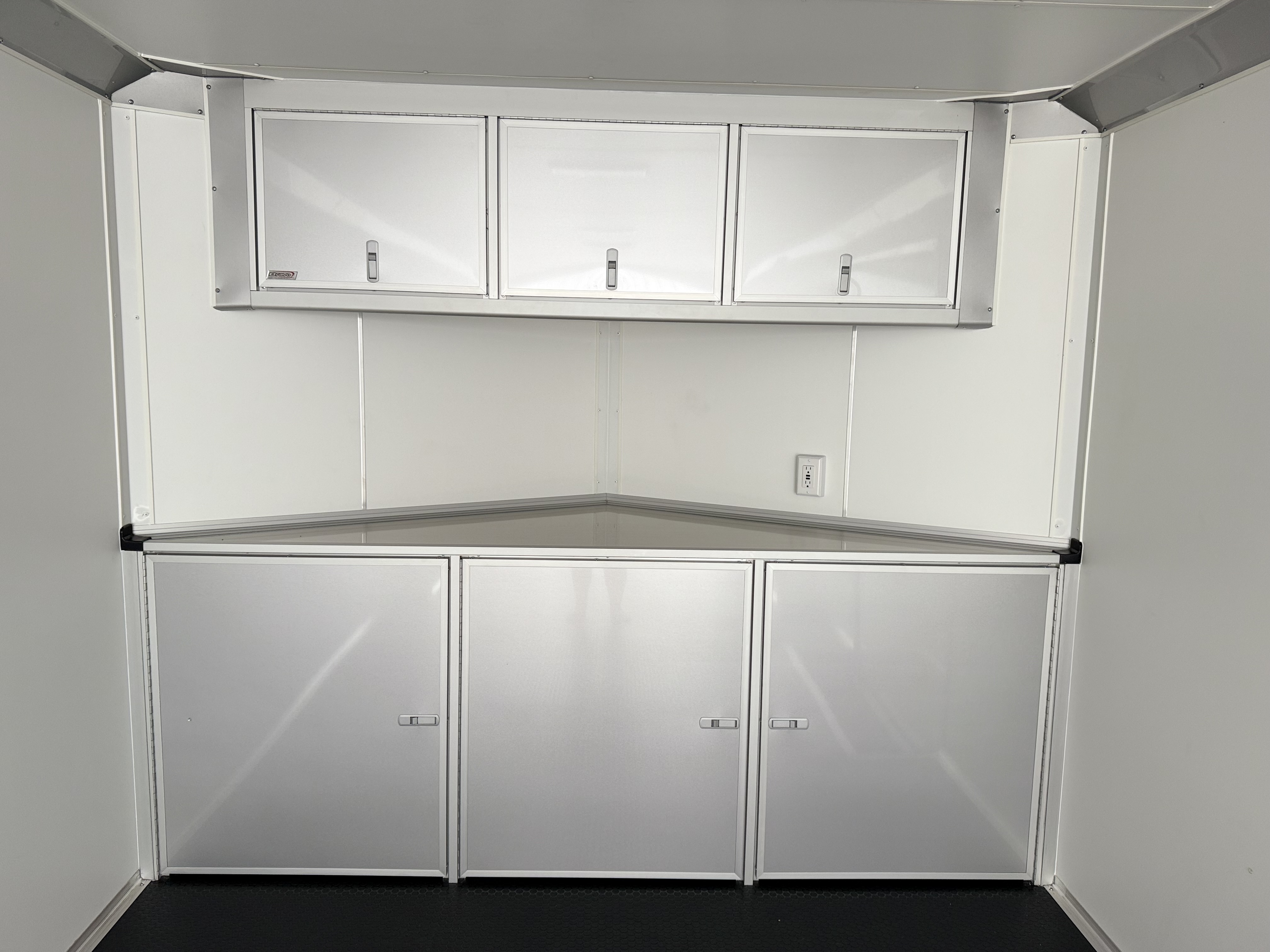

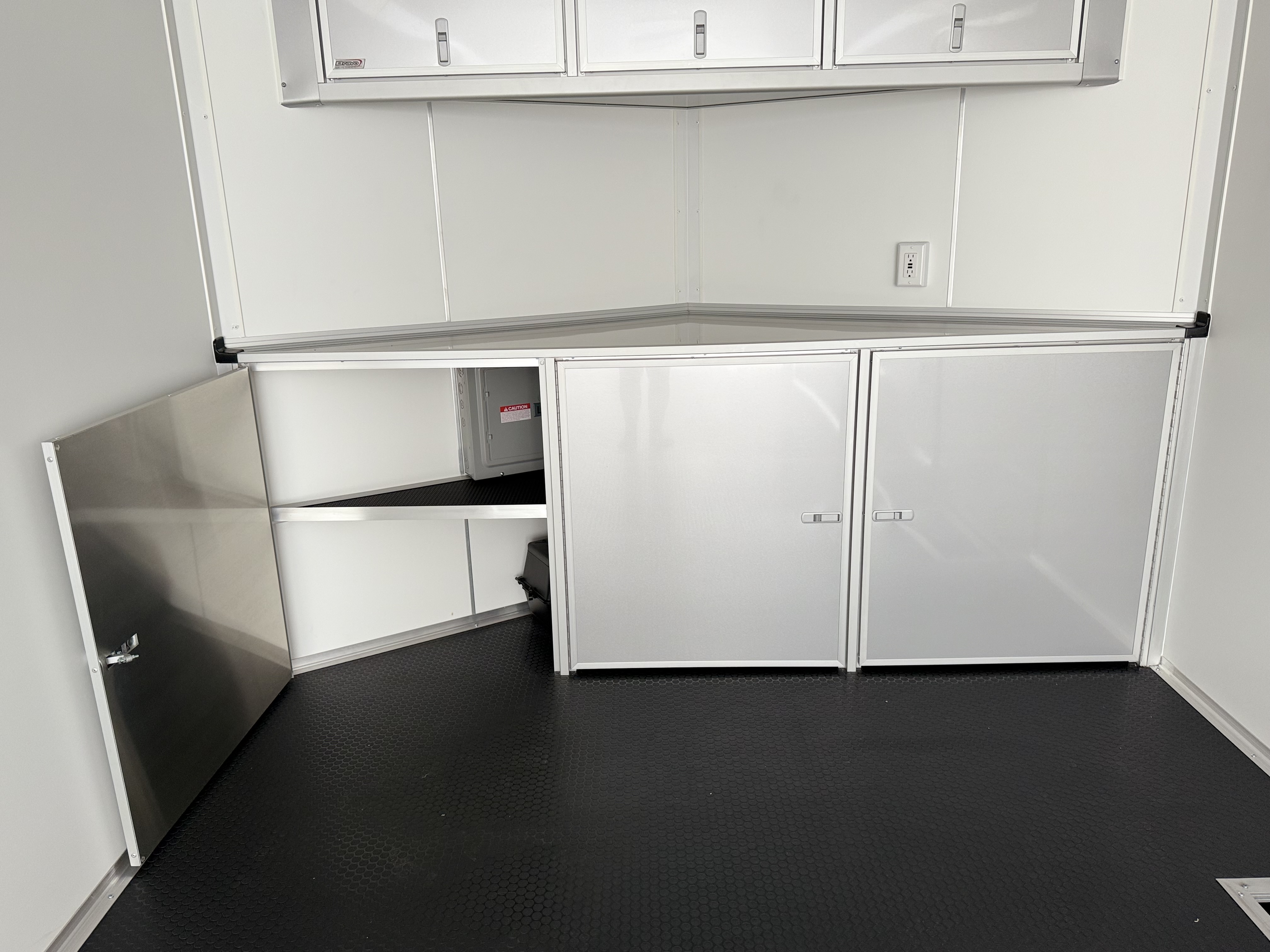

(QTY 1) ALUMINUM V-NOSE BASE CABINET W/3 DOORS
*30" DEEP
* MILL FINISH COUNTERTOP & BLACK SUPERGRIP SHELF
*

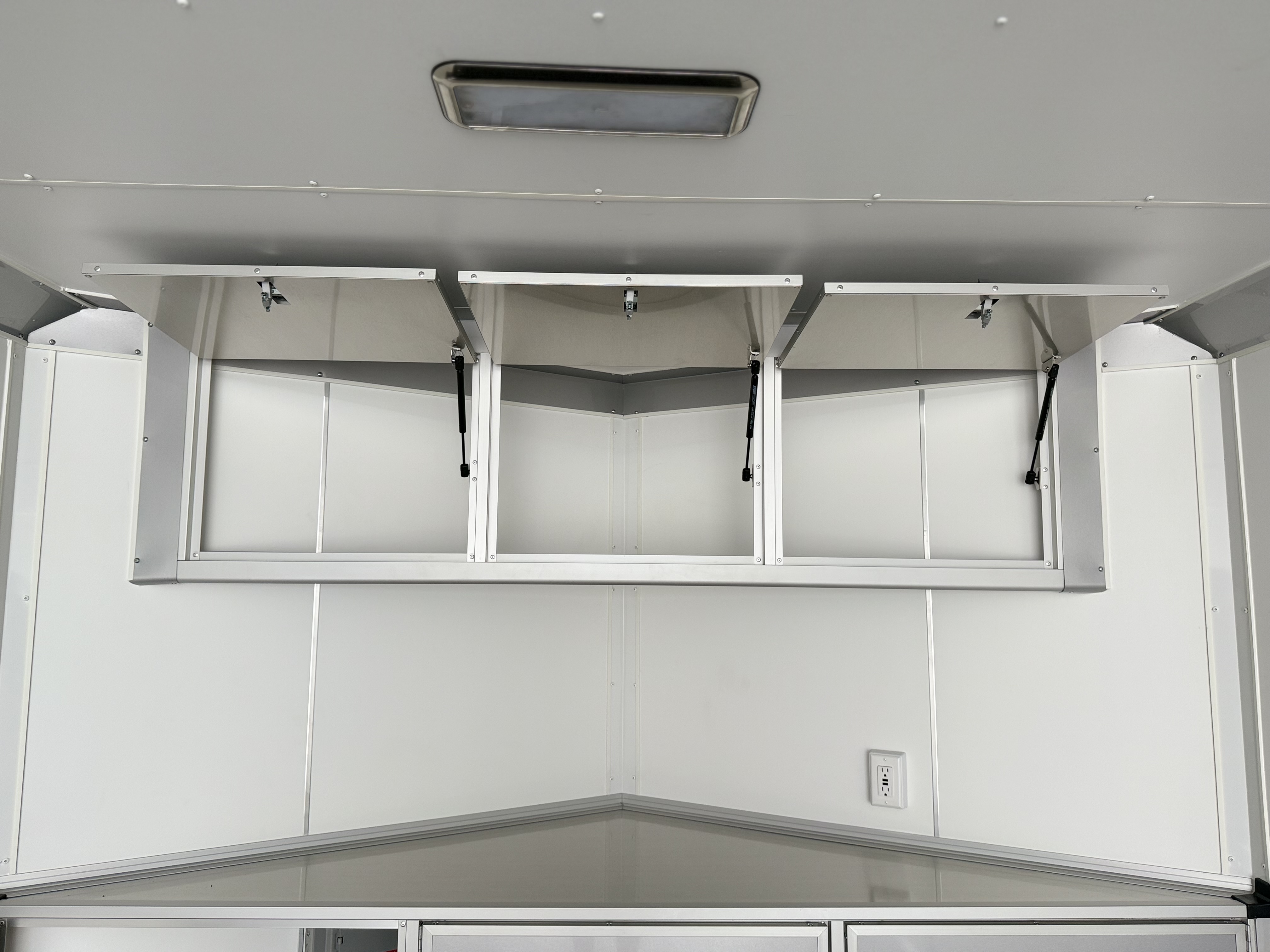

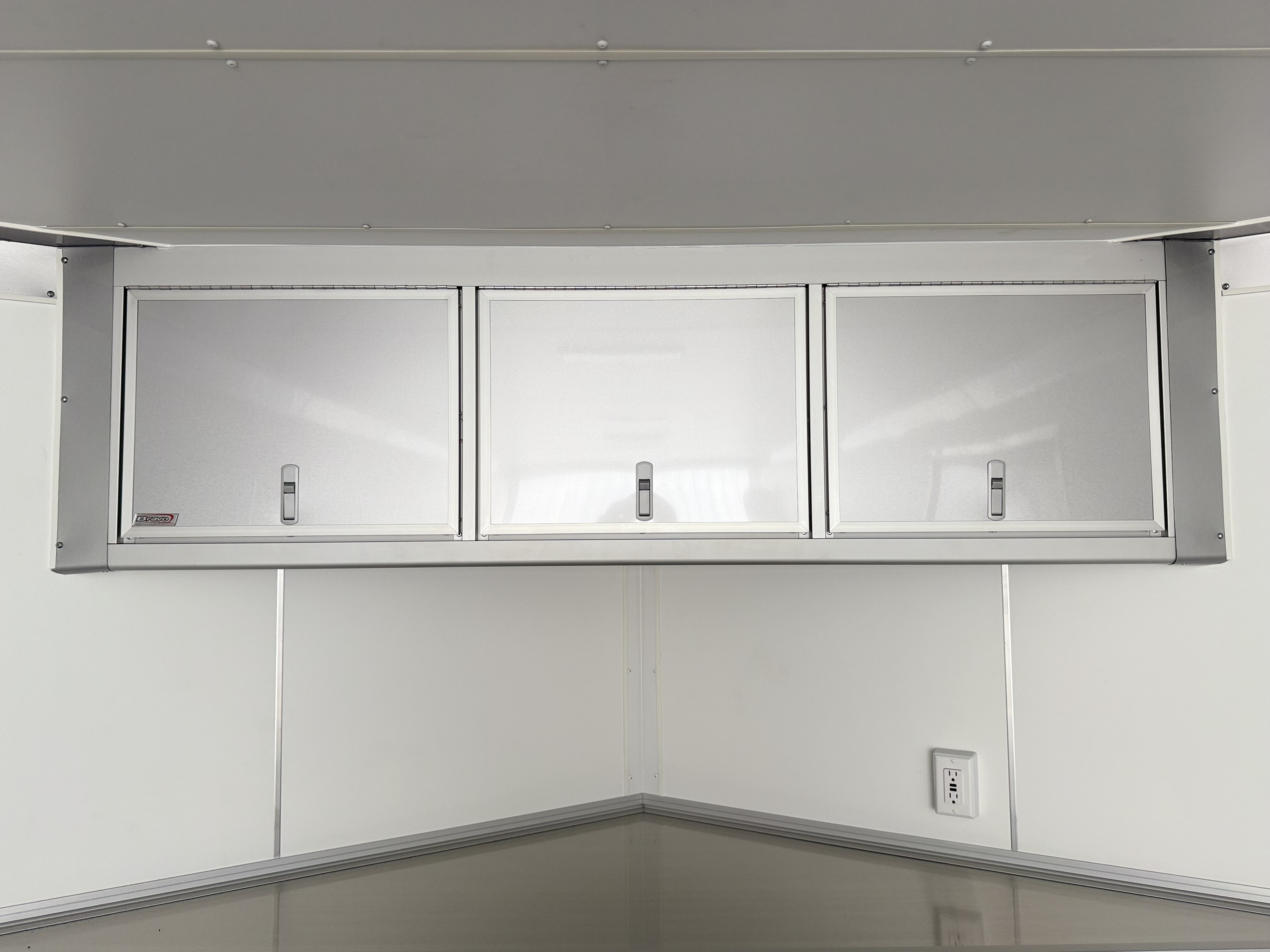

(QTY 1) ALUMINUM V-NOSE OVERHEAD CABINET W/ (3) TOP HINGE
DOORS W/GAS SHOCKS
**24"D
CABINET COLOR: SILVER
***
24" ATP STONEGUARD
***
*CARBON FIBER DECALS

>BONDED FASTENERLESS SILVER .080
HARDBODY EXTERIOR METAL (SC,SSAC,HR
ONLY)
***
.030 METAL - COLOR: SILVER
*CAP THE NOSE
*WEDGE TO BODY
*REAR CORNER POSTS
*********

WIRE & FRAME FOR A/C

18" LED CHROME PORCH/LOADING LIGHT
**EXTERIOR- C/S

12V WALL SWITCH

CEILING INSULATION-POLYSTYRENE/LTF
INCLUDES FRONT CAP AREA

SPARE TIRE MOUNT-HEAVY DUTY

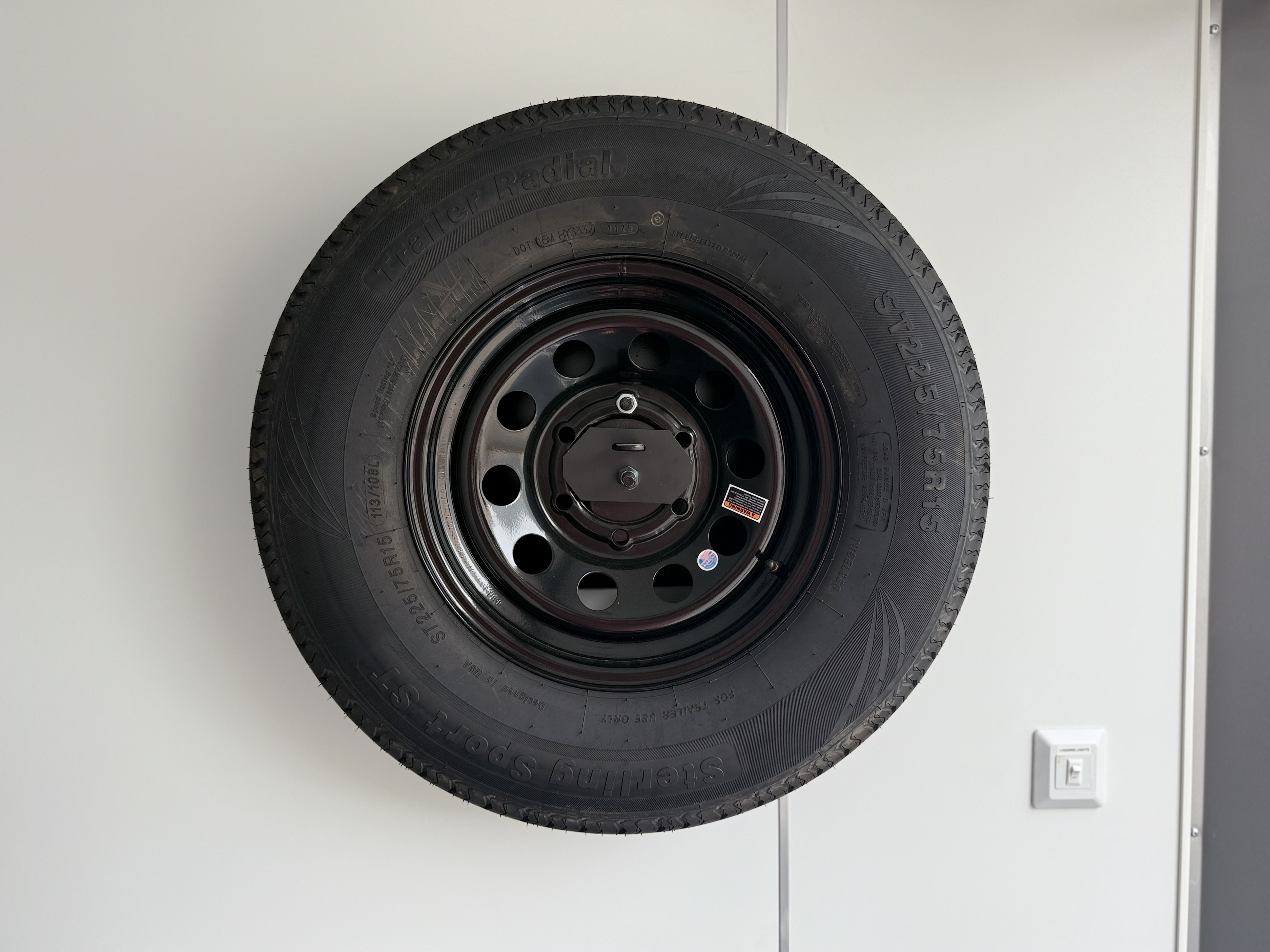

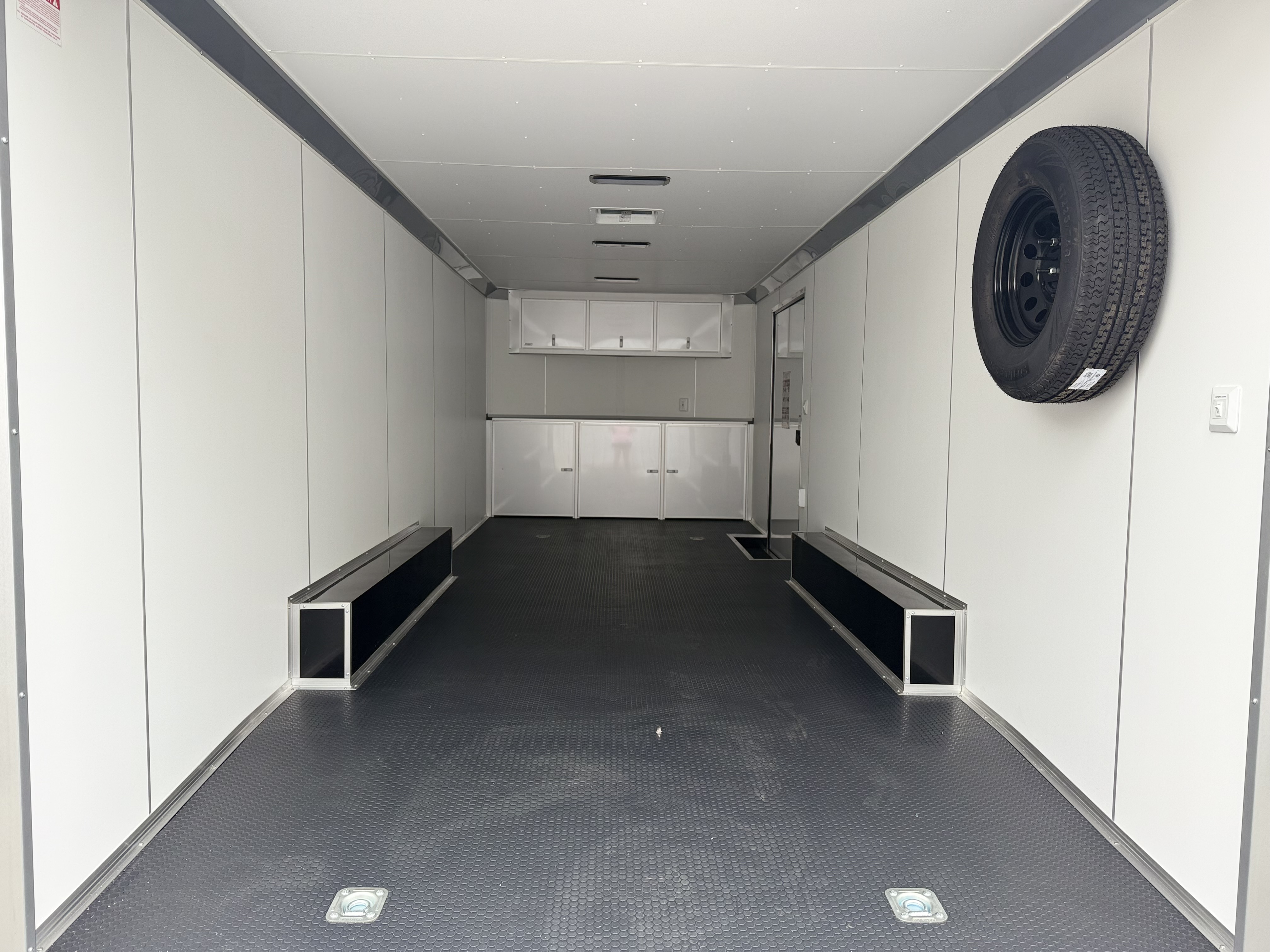

INTERIOR SPARE TIRE MOUNT - HIGH
- (QTY 1) STEEL PLATE ON INTERIOR
**NEEDS TO BE MOUNTED BETWEEN POSTS

SPARE TIRE ST225 75R15 LRD (5200#)
ON BLACK MOD WHEEL

MIDNIGHT EDITION PKG (8.5'W SC)
********
-24" STONEGUARD (SEE ORDER FOR TYPE)
-SMALL 'J' RAIL FOR VERTICAL EDGES
*****
-(QTY 2) FENDERS
**BLACK OUT ENTIRE FENDER - BOTH SIDES
*****
BLACK CENTER CAPS
*****
-3.16" BOTTOM TRIM
-TOP RAIL 2-1/2" W/LIP, BOTH SIDES & REAR
-SMALL 'J' RAIL FOR ACROSS REAR
-BIG 'J' FOR RAMP TRIM
-TRIM SCREWS
***
3/4" X 3/4" FOR UNDER SIDE DOOR
***
-DRIP RAIL FOR:
-RAMP DOOR
-SIDE DOOR
***
-REAR BARLOCKS W/HARDWARE
-(QTY 2) GRAB HANDLES (FOR RAMP DOOR)
********
SIDE DOOR TRIM TO BE BLACKED OUT BY LIPPERT
********
THESE ITEMS WILL BE ORDERED BLACK:
***
-CAST ALUMINUM HOLDBACK
-REAR CORNERS
-BEZEL ON FENDER LIGHTS
-TAIL LIGHT BEZELS
*****
SILVER BRAVO DECAL ON BLACK EXTERIOR METAL
CARBON FIBER BRAVO DECAL ON OTHER COLORS
*****

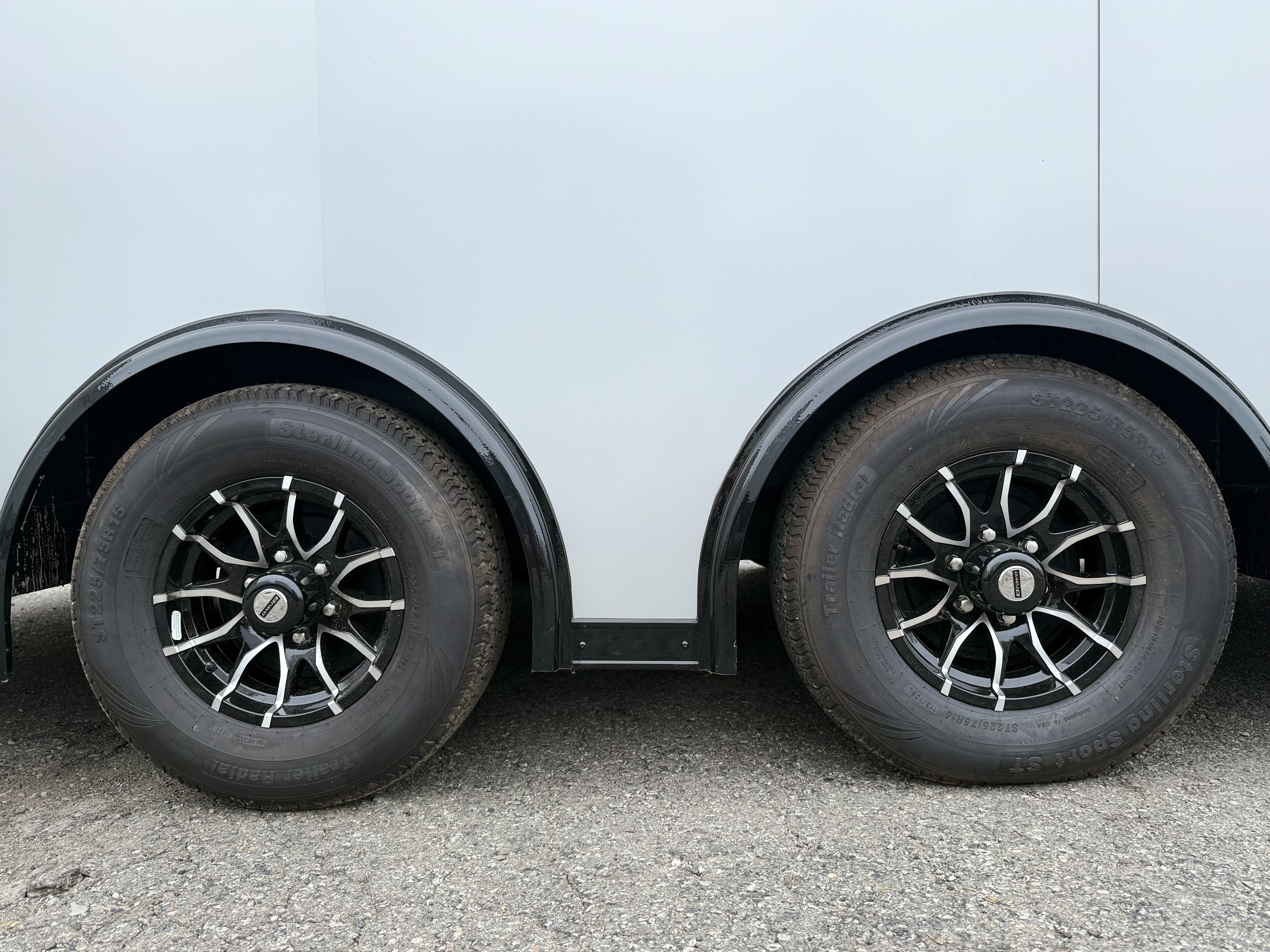

>BLACK EAGLE ALUM WHEELS ILO STD ALUM /PR

SPECS:
Specifications SCP8522TA3
Axles/Torsion 5200#
Tires 15” RADIAL
Brakes ELECTRIC
Tube Frame 6"
Hitch Ball Size 2-5/16"
Curb Weight 4750#
Hitch Weight 618#
GVWR 9990#
Payload Capacity 5240#
Overall Length 26′-6"
Overall Width 8′-6"
Overall Height 9′-1"
Exterior Box Width 8′-4"
Interior Length w/V 25′
Interior Width 8′
Width Between W/W 81-3/4"
Interior Height 7′
Platform Height 20"
Loading Height 17"
Ramp Rear Door HVY DUTY
Rear Door Width 92"
Rear Door Height 81"
Side Door Width 48"
Side Door Height 78"
Cross Members O.C. 16"O.C.
Wall Posts O.C. 16"O.C.
Roof Members O.C. 16"O.C.
