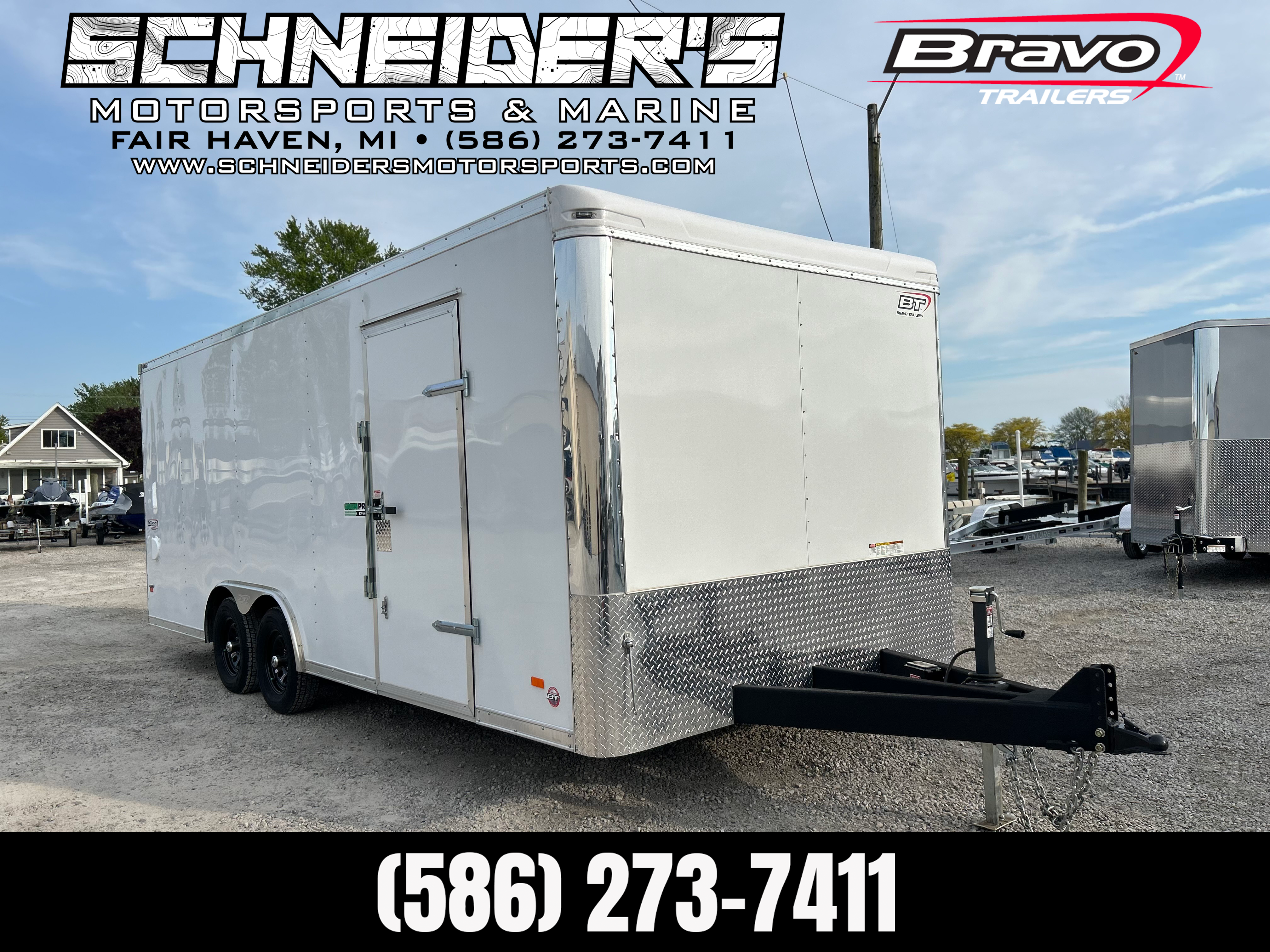

2025  Bravo  8.5X20 GreenPro Commercial Landscape Enclosed Cargo Trailer  - 49111

DRY WEIGHT: 3840
GVWR: 7000
PAYLOAD CAPACITY: 3476
INTERIOR HEIGHT: 6 ' 6 "

GP8520TA2
GREENPRO ENCLOSED TRAILER
3500# TANDEM DROP SPRING AXLES
ELECTRIC BRAKES
6" TUBE FRAME
75-3/4" CROSS MEMBERS @ 16"O.C.
TUBE WALL POSTS @ 16"O.C.
TUBE ROOF MEMBERS @ 16"O.C.
***
TUBE REAR END (CORNERPOST, REAR X-MEMBER & REAR HEADER)
1.5" STRUCTURAL STEEL ANGLE (1/8" THICK) WELDED ALONG FRONT
& REAR VERTICAL EDGES OF WHEEL BOXES
**
54" TRIPLE TUBE TONGUE W/ADDT'L TUBING
7GA FRONT CROSSMEMBER
2-5/16" ADJUSTABLE BALL COUPLER- 14K
WELD ON CHAIN RETAINER
**
HD PREMIUM 12V JUNCTION BOX - A-FRAME MOUNTED
**
SQUARE 5000# DROP LEG TONGUE JACK
SET BACK TONGUE JACK -- 24" BACK
**
ROCKGUARD PAINT ON TONGUE, REAR MEMBER & WHEEL BOXES
**
ST205/75R15/LRC 15" RADIAL TIRES
BLACK MOD WHEELS
**
TRANSLUCENT ROOF
**
VHB FASTENERLESS EXTERIOR METAL
**
LED STRIP TAIL LIGHTS
CLEAR LENS LED EXTERIOR LIGHTING
LED LICENSE PLATE LIGHT
**
3/8" ENGINEERED SIDEWALLS
3" X 3/8" WOOD AT TOP OF SIDEWALLS
3/4" X 12" WOLMANIZED KICKPLATE INCLUDES FRONT WALL
**PROTECTED KICKPLATE EDGES & SIDE DOOR
**GALVANEAL REAR INTERIOR CORNERS
3/4" WOLMANIZED FLOORING & RAMP
GREENPRO HEAVY DUTY RAMP DOOR W/STEEL TREADPLATE
INTEGRATED RAMP TRANSITION
**TOTAL OF 4 RAMP DOOR HINGES
**(QTY 2) ATP BACKERS ON RAMP DOOR
**48" EXTRUDED ALUMINUM BARLOCKS FOR RAMP DOOR
WITH STAINLESS STEEL HASPS
*RAMP TRANSITION PAINTED W/ROCKGUARD
*D-BULB/DOOR SEAL
*GOES ON RAMP DOOR ON SIDES OF RAMP ONLY
*GOES ON TRAILER ACROSS TOP
**********************************
36" X 72"T BRAVO BUILT HD ALMNM FRAMED SIDE DOOR W/
FLUSHLOCK & 48" EXTRUDED ALUMINUM BARLOCK W/STAINLESS
HINGES & HASP
MILL FINISH INTERIOR & ATP BACKER C/S @ 3' BACK
**
EXTERIOR LED REAR HEADER LOADING LIGHT
(QTY 2) 12V 6" ROUND LED DOME LIGHTS @ 4' & 14' BACK
(QTY 2) 12V WALL SWITCHES
(QTY 1) @ C/S DOOR FOR DOME LIGHTS
(QTY 1) @ C/S REAR FOR LOADING LIGHT
(QTY 1) PAIR ABS FLOW THRU SIDEWALL VENTS
FRONT R/S HIGH, REAR C/S LOW
***
ANODIZED FRONT CORNERS W/J-RAIL (STP STYLE)
**SCREWED DOWN
WRAP 24" ATP STONEGUARD AROUND FRONT CORNERS
>VHB FASTENERLESS WHITE .080 HARDBODY
EXTERIOR METAL (PROGRADE)
***
.040 METAL - COLOR: WHITE
*REAR CORNER POSTS
*********
WHITE TPO CAP
5000# RECESSED FLOOR D-RING
1 R/S & 1 C/S @ 3'-6" BACK & 24" IN
1 R/S & 1 C/S @ 19'-6" BACK & 24" IN
APPEARANCE PKG TA
4- STAINLESS STEEL CENTER CAPS
2- CHROME BEZEL FOR LED TAIL LIGHT

SPECS:
Details GP8520TA2
Axles 3500# SPRING
Tube Frame 6"
Adj. Hitch Ball Size 2-5/16"
Curb Weight 3840#
Hitch Weight 461#
GVWR 7000#
Payload Capacity 3160#
Overall Length 24'-8"
Overall Width 8'-6"
Overall Height 8'-5"
Exterior Box Width 8'-4"
Interior Length 19'-8"
Interior Width 8'-1"
Interior Height 6'-6"
Platform Height 20"
Rear Door HD RAMP
Side Door Width 36"
