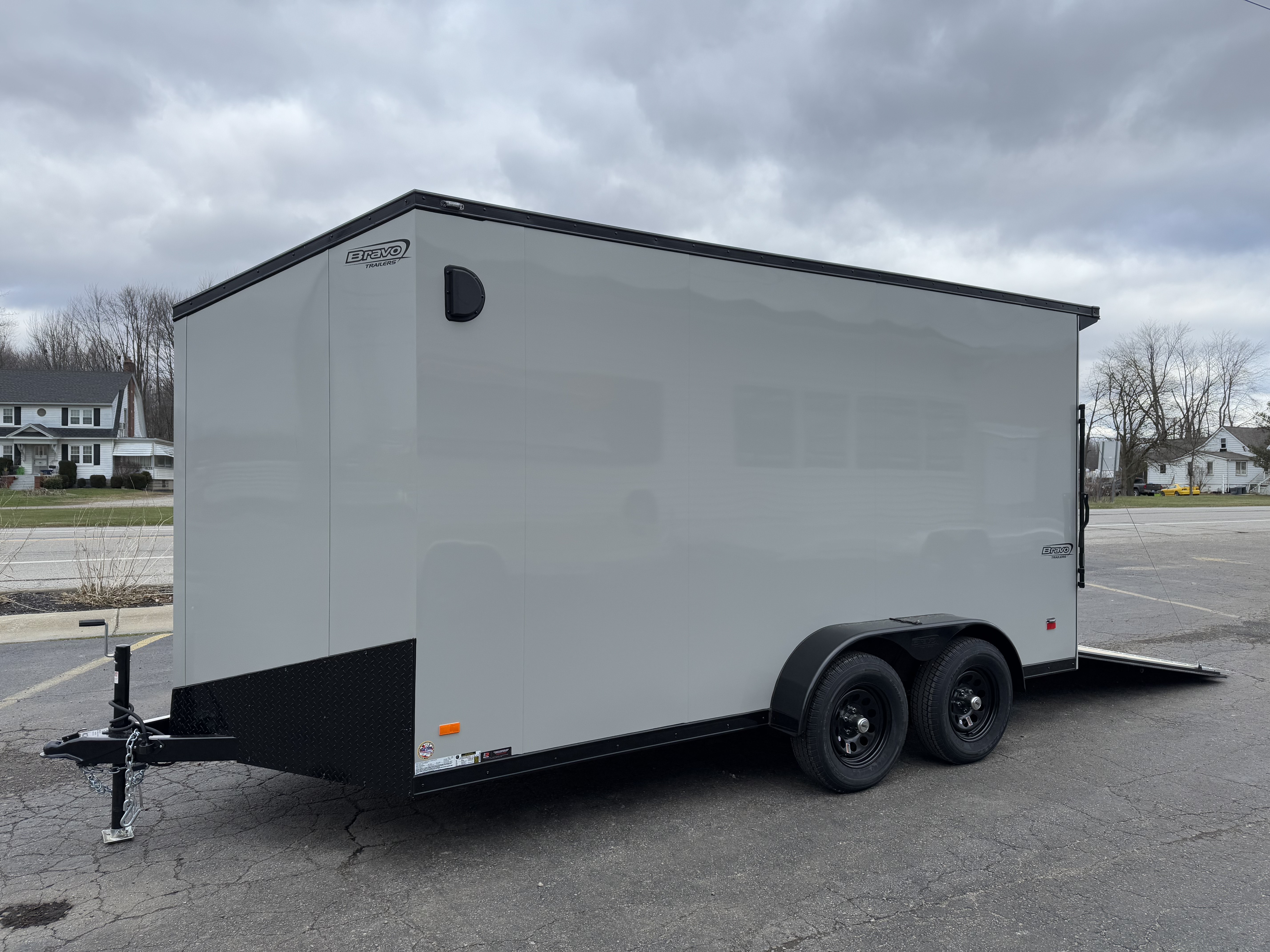

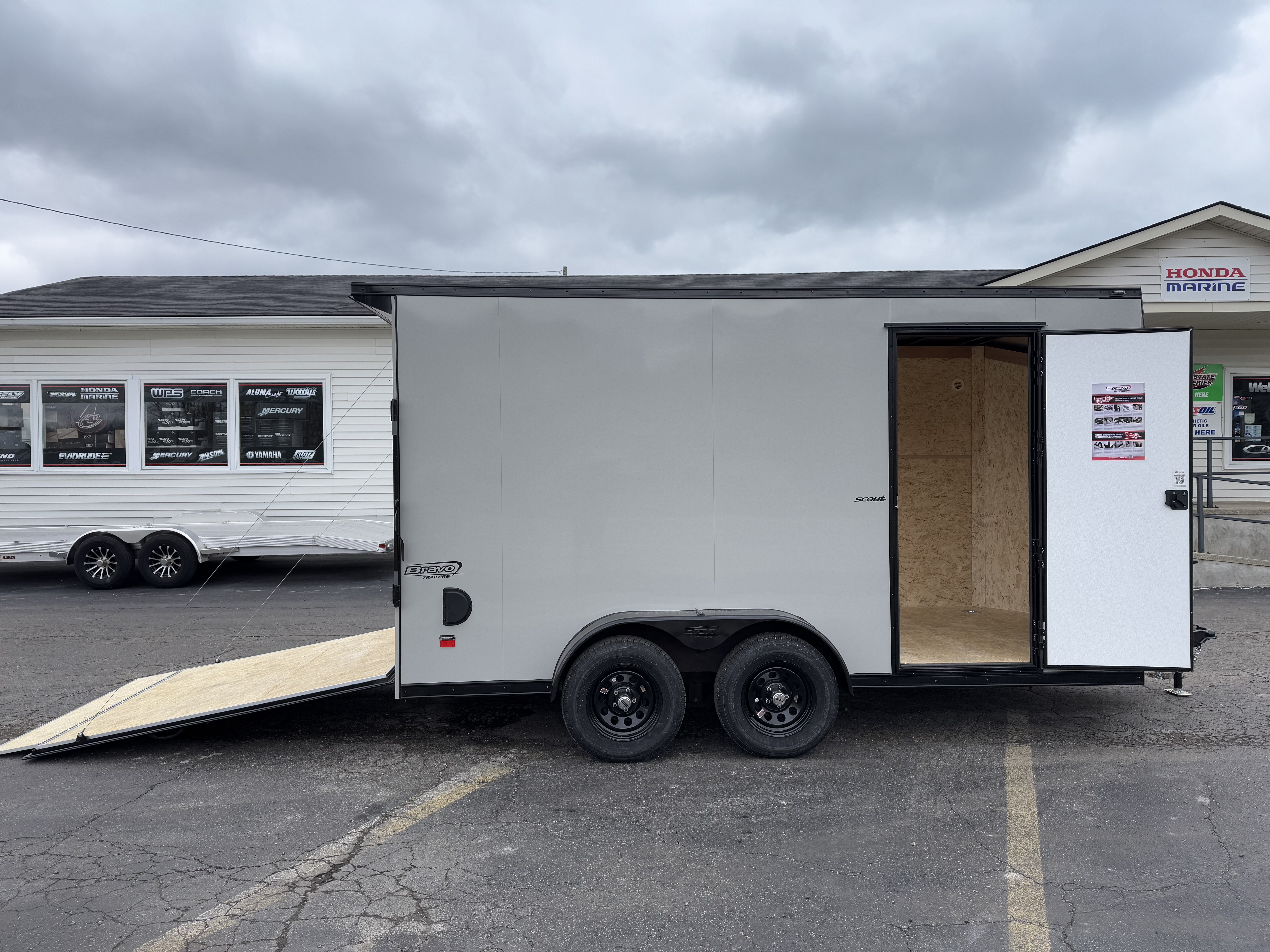

2025  Bravo  7x14 Scout Enclosed Cargo Trailer  - 48089

>SC714TA2
SCOUT ENCLOSED TRAILER
3500# TANDEM DROP SPRING AXLES
ELECTRIC BRAKES
NO WHEEL WELLS
4" TUBE FRAME
CROSS MEMBERS @ 16" O.C.
TUBE WALL POSTS @ 16"O.C.
TUBE ROOF MEMBERS @ 16"O.C.
2-5/16" COUPLER- 14K
PAINTED TONGUE JACK W/SAND FOOT

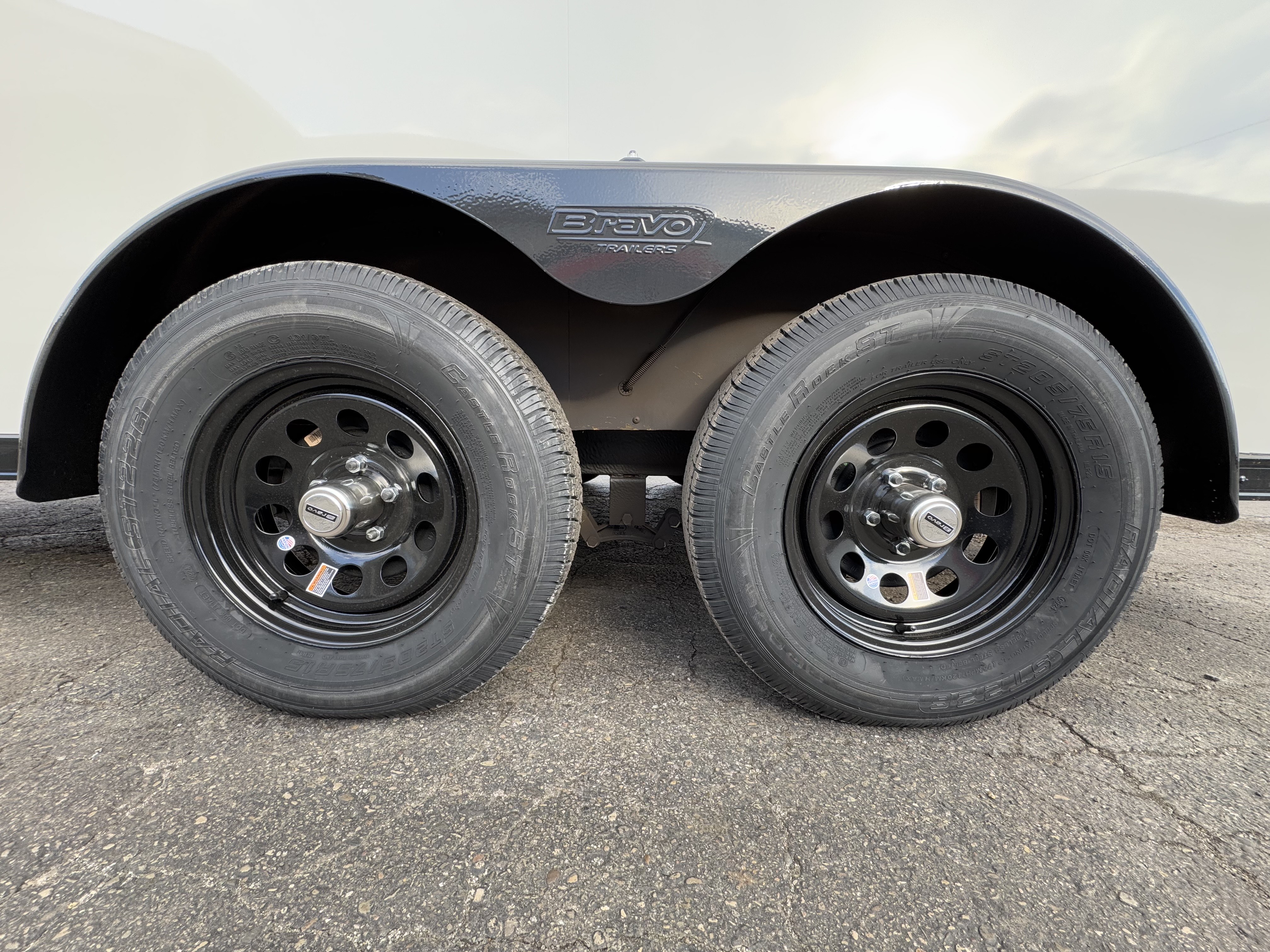

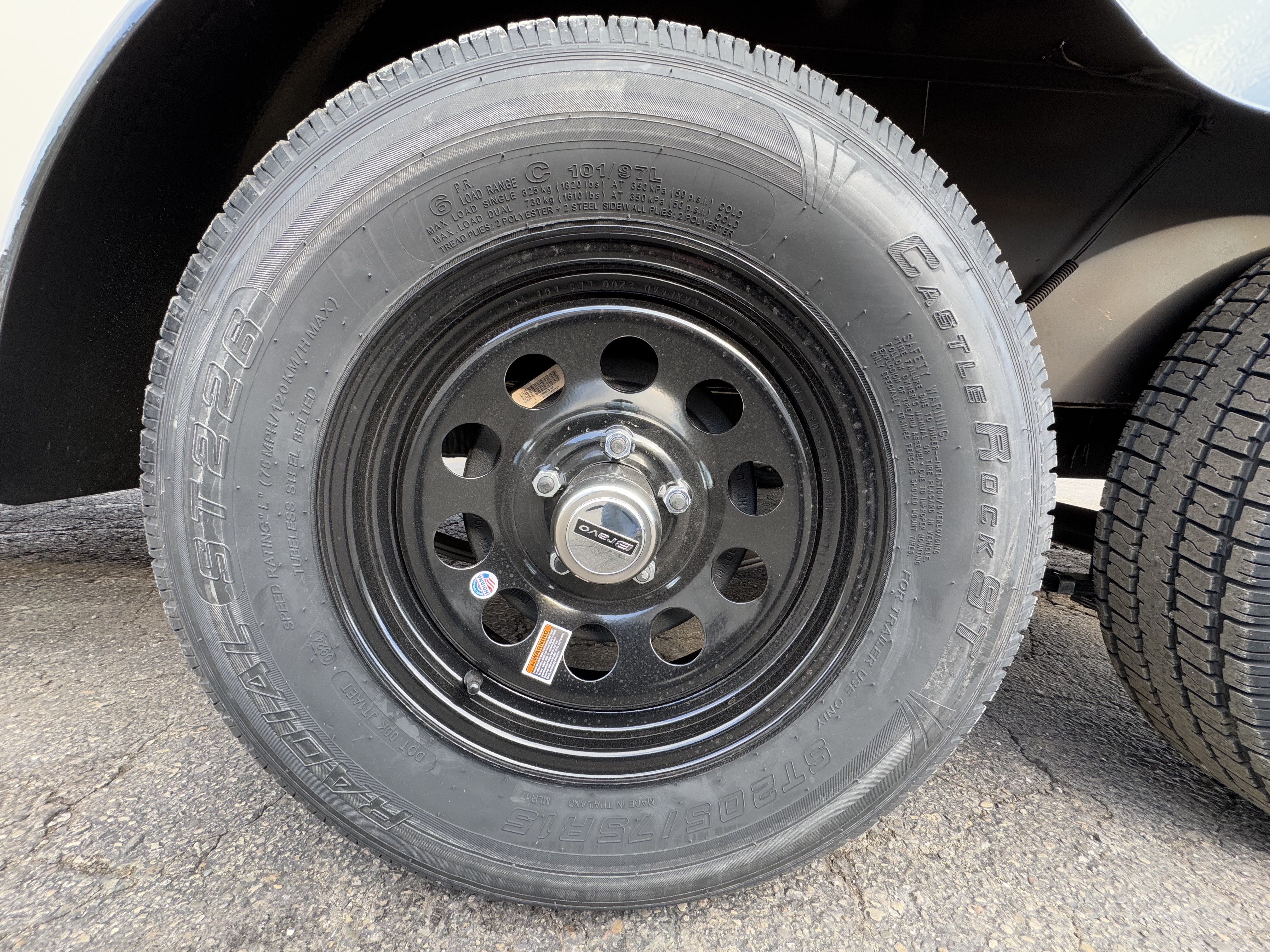

ST205/75R15/LRC 15" RADIAL TIRES
BLACK MOD WHEELS
ALUMINUM ROOF
**
BONDED .030 EXTERIOR SIDEWALLS
**
LED STRIP TAIL LIGHTS
CLEAR LENS LED EXTERIOR LIGHTING
LED LICENSE PLATE LIGHT
3/8" ENGINEERED SIDEWALLS
3/4" ENGINEERED FLOORING
**

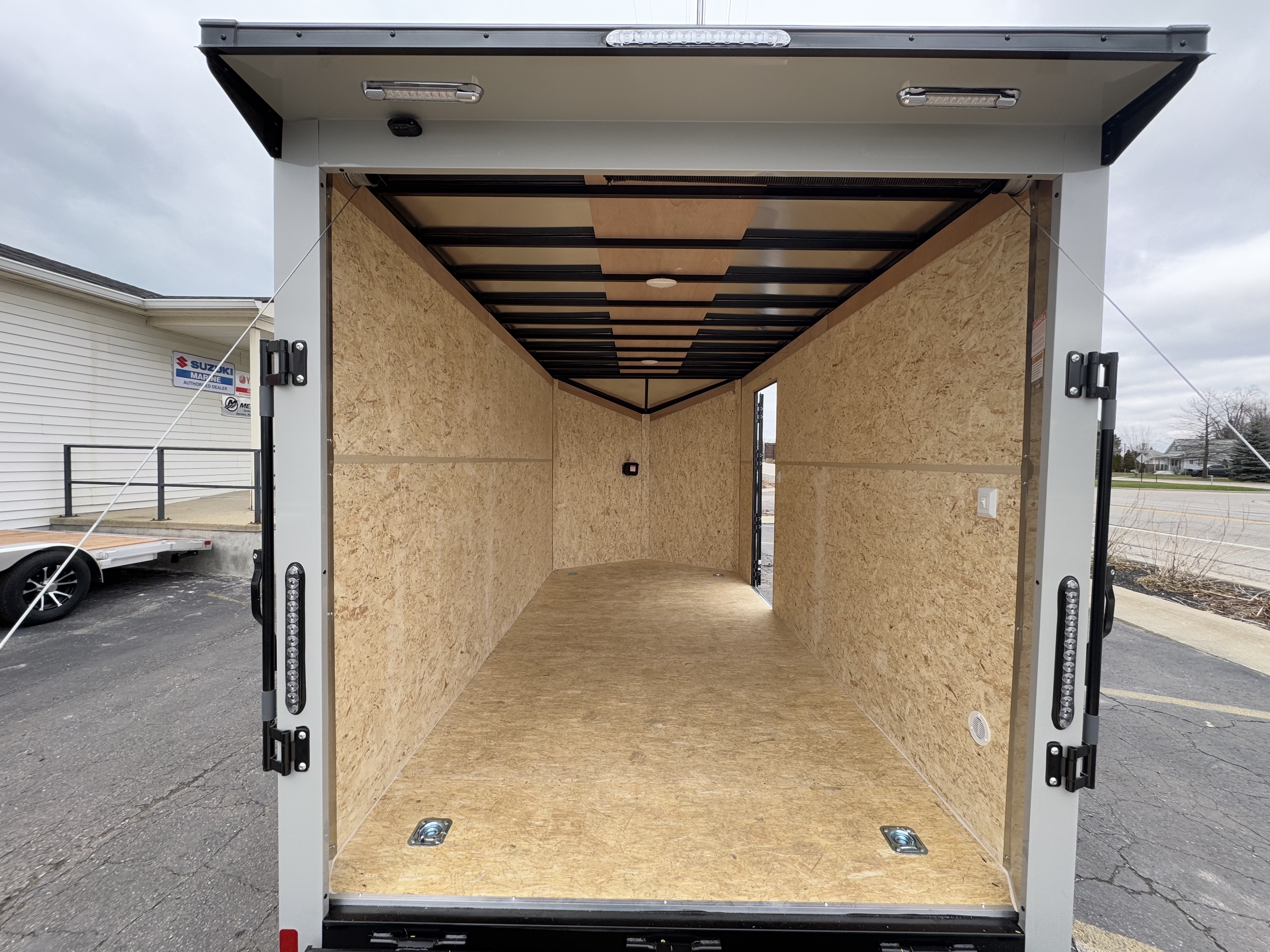

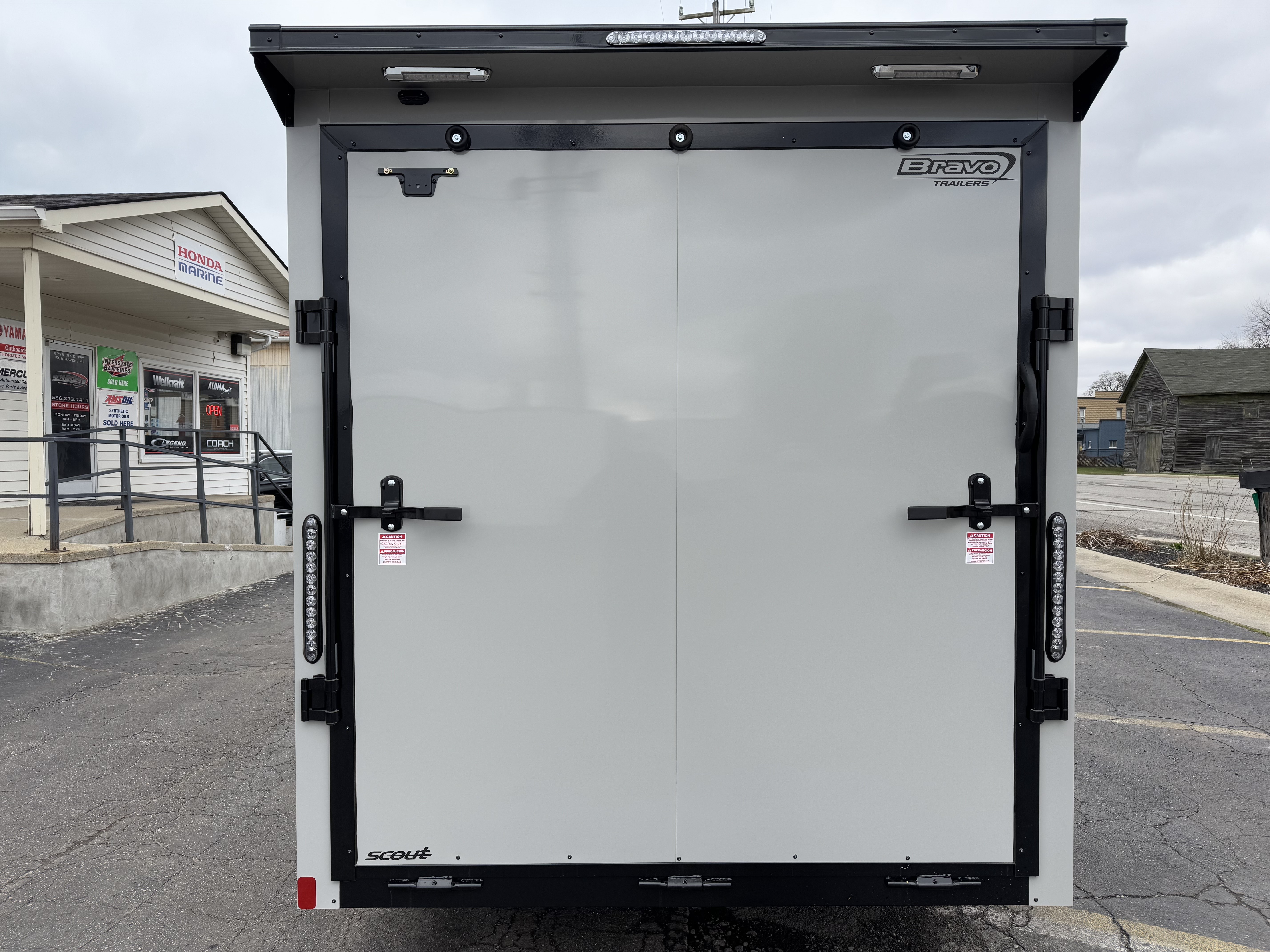

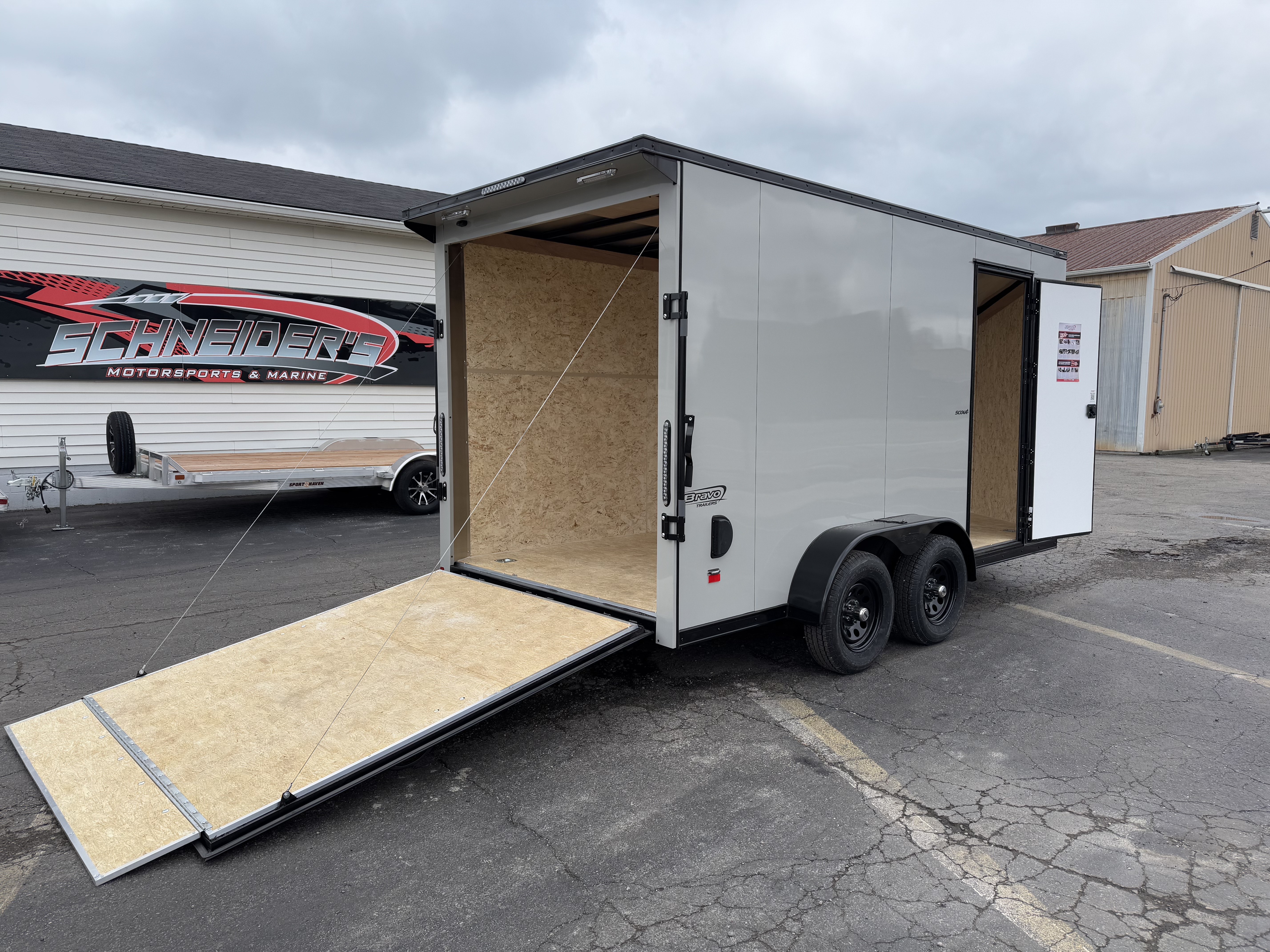

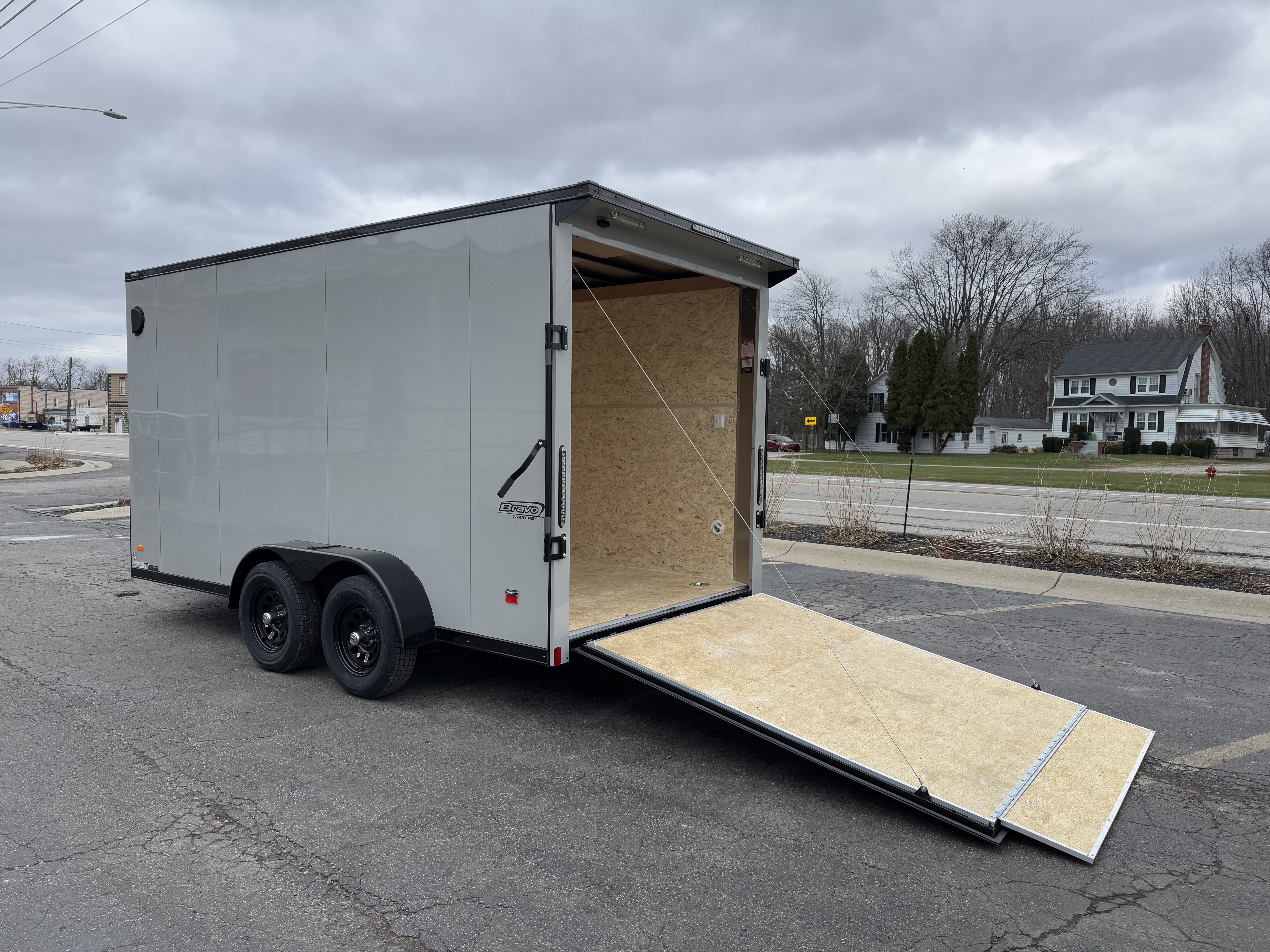

MED DUTY RAMP DOOR W/FLAP
**
**USE OLD STYLE REAR CENTER CLEARANCE LIGHT
**

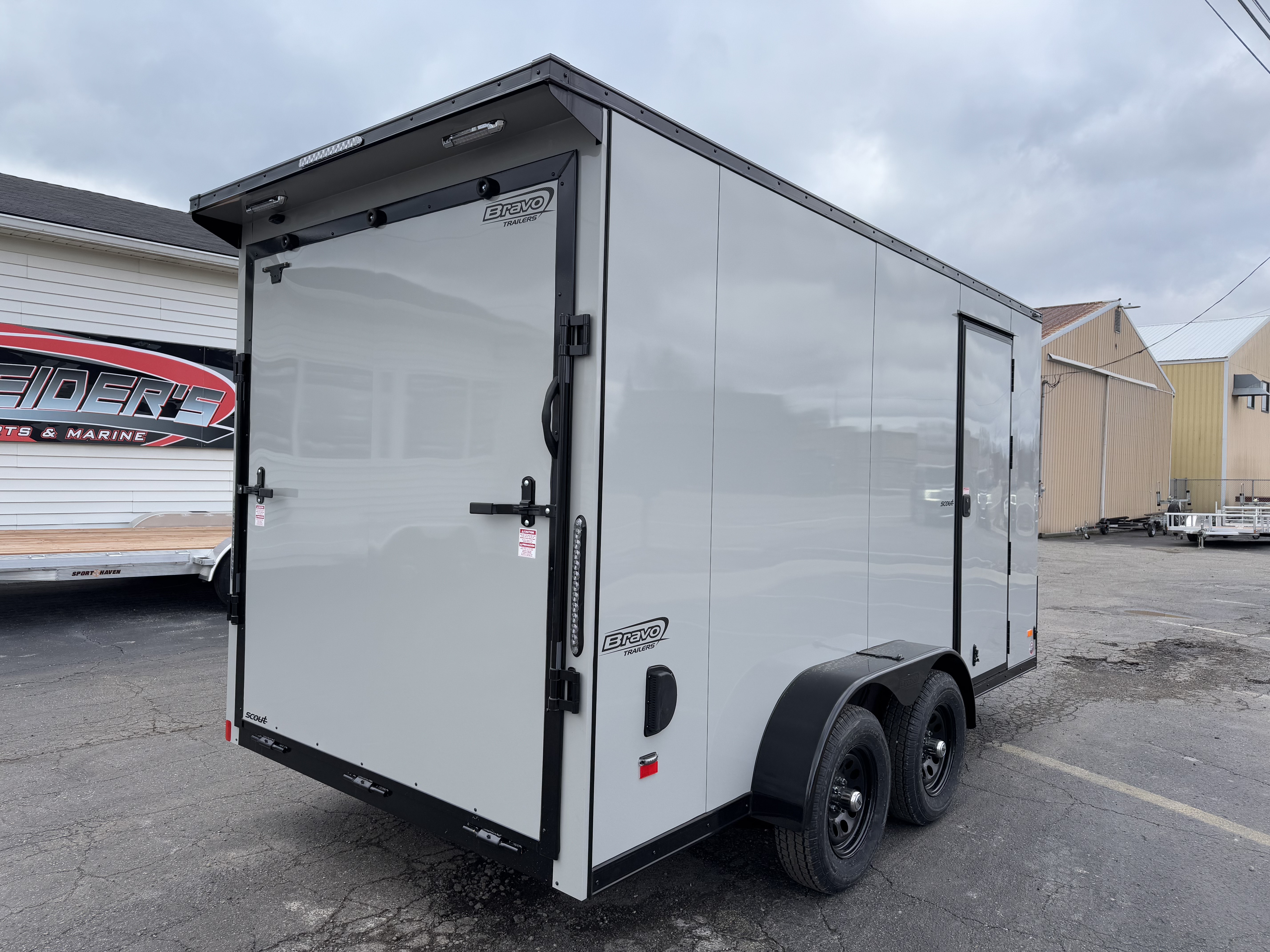

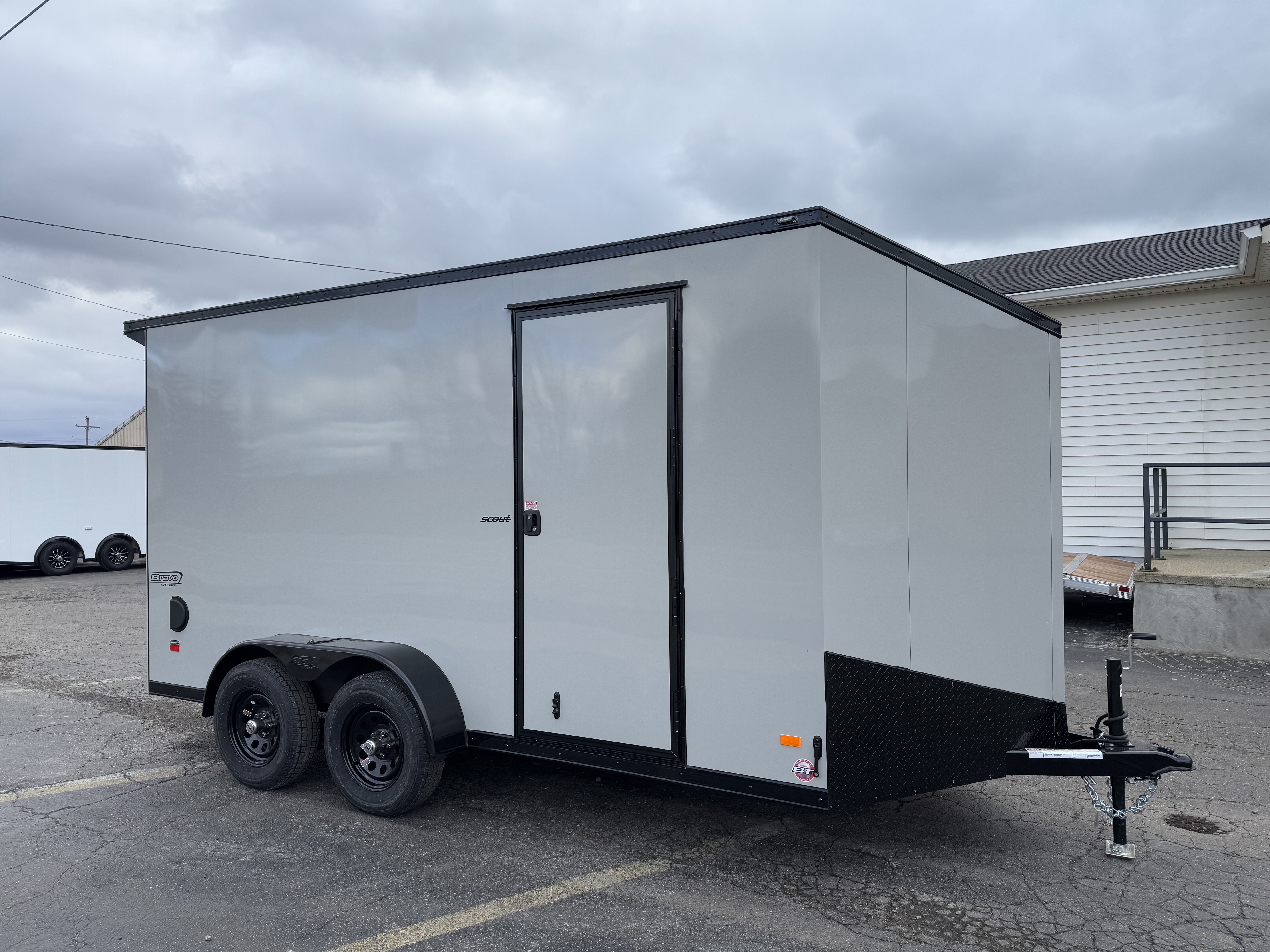

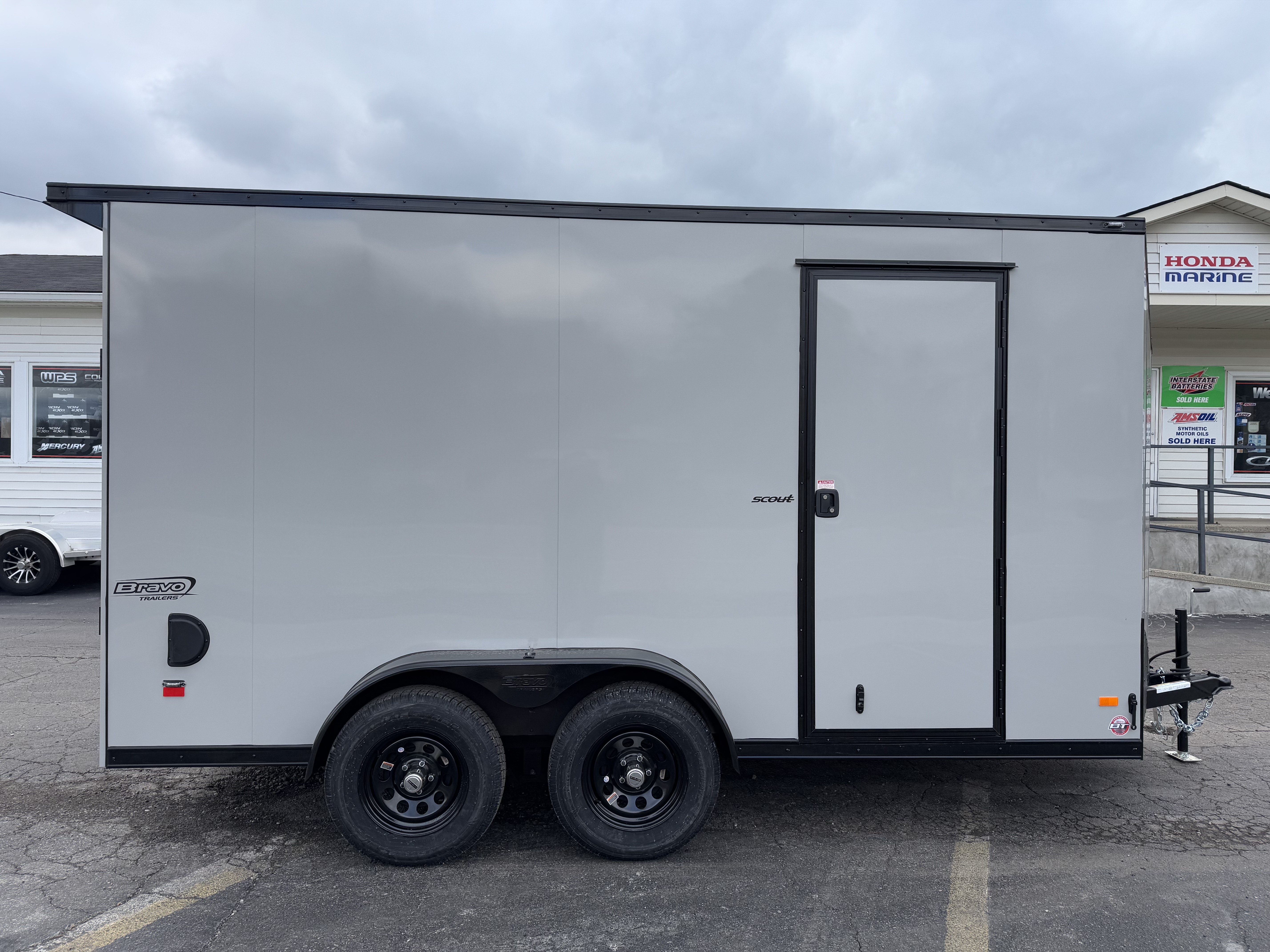

32" SIDE DOOR W/FLUSHLOCK & CAST ALUM HOLDBACK
-C/S @ 2' BACK

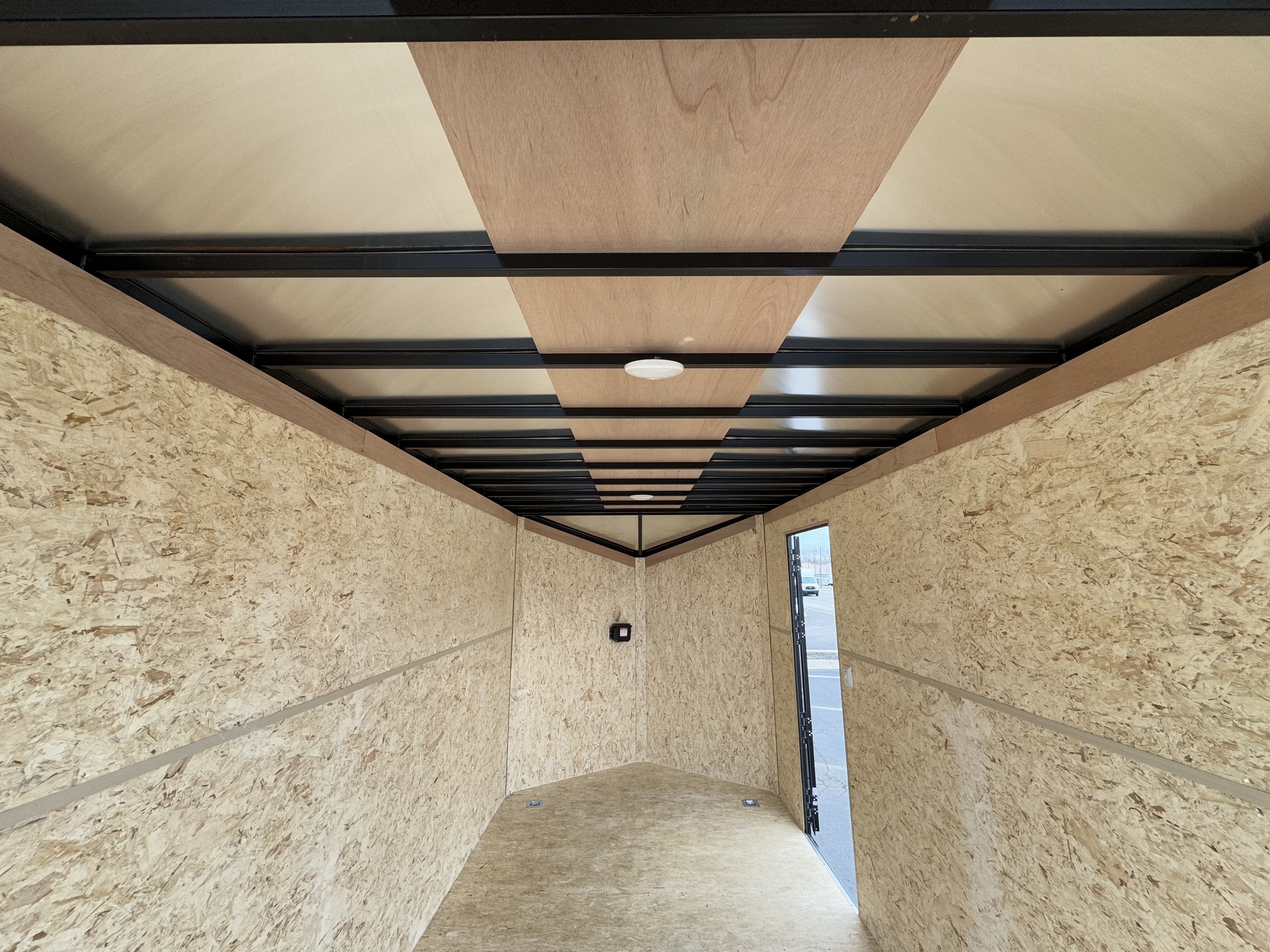

(QTY 2) 12V LED DOME LIGHTS @ 3'-4" & 10' BACK

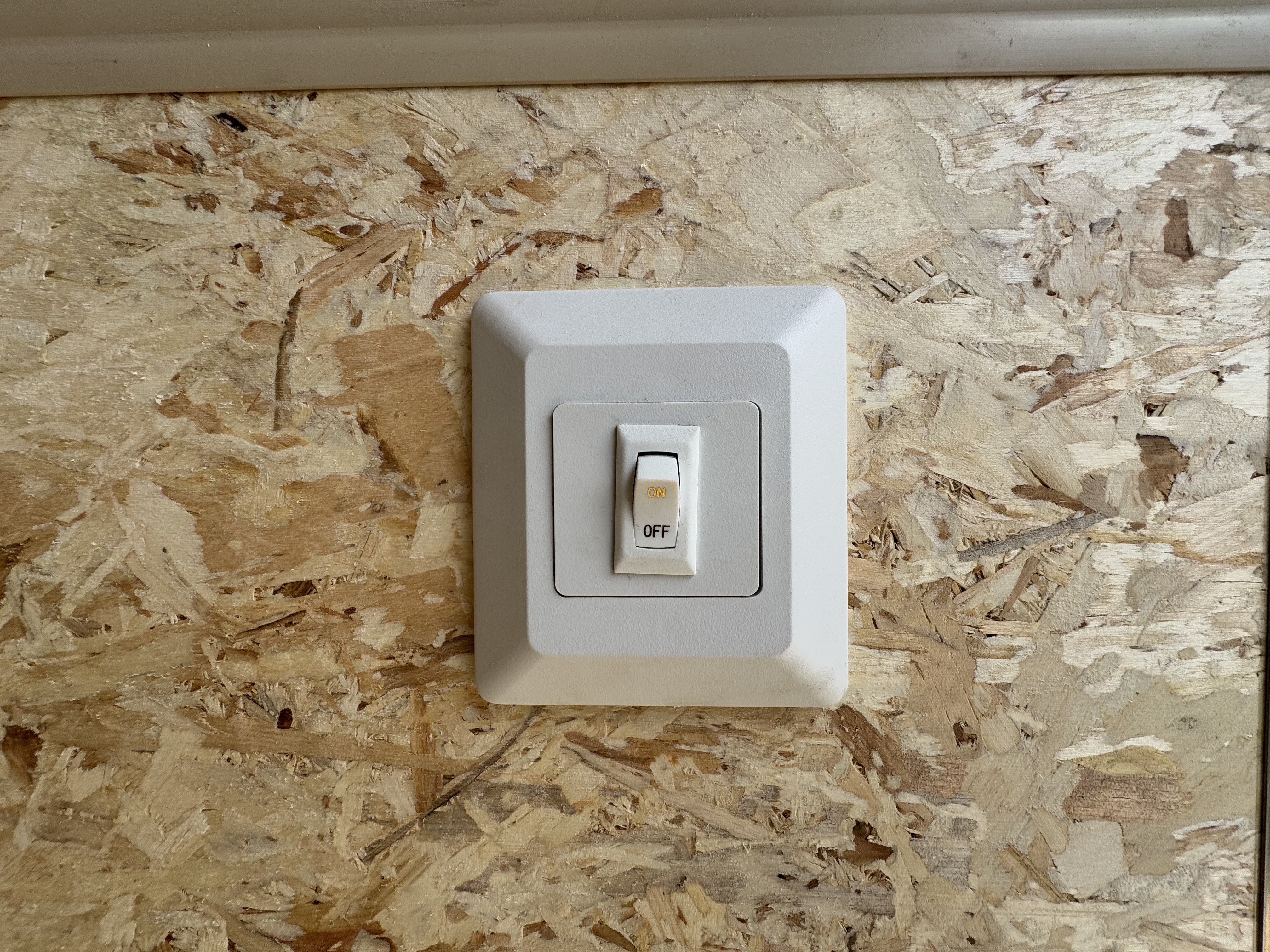

(QTY 2) 12V WALL SWITCHES
(QTY 1) @ C/S DOOR FOR DOME LIGHTS
(QTY 1) @ C/S REAR FOR WING LIGHTS
(QTY 1) PAIR ABS FLOW THRU SIDEWALL VENTS
FRONT R/S HIGH, REAR C/S LOW
**
GRAY DOVE 030 EXTERIOR METAL
**

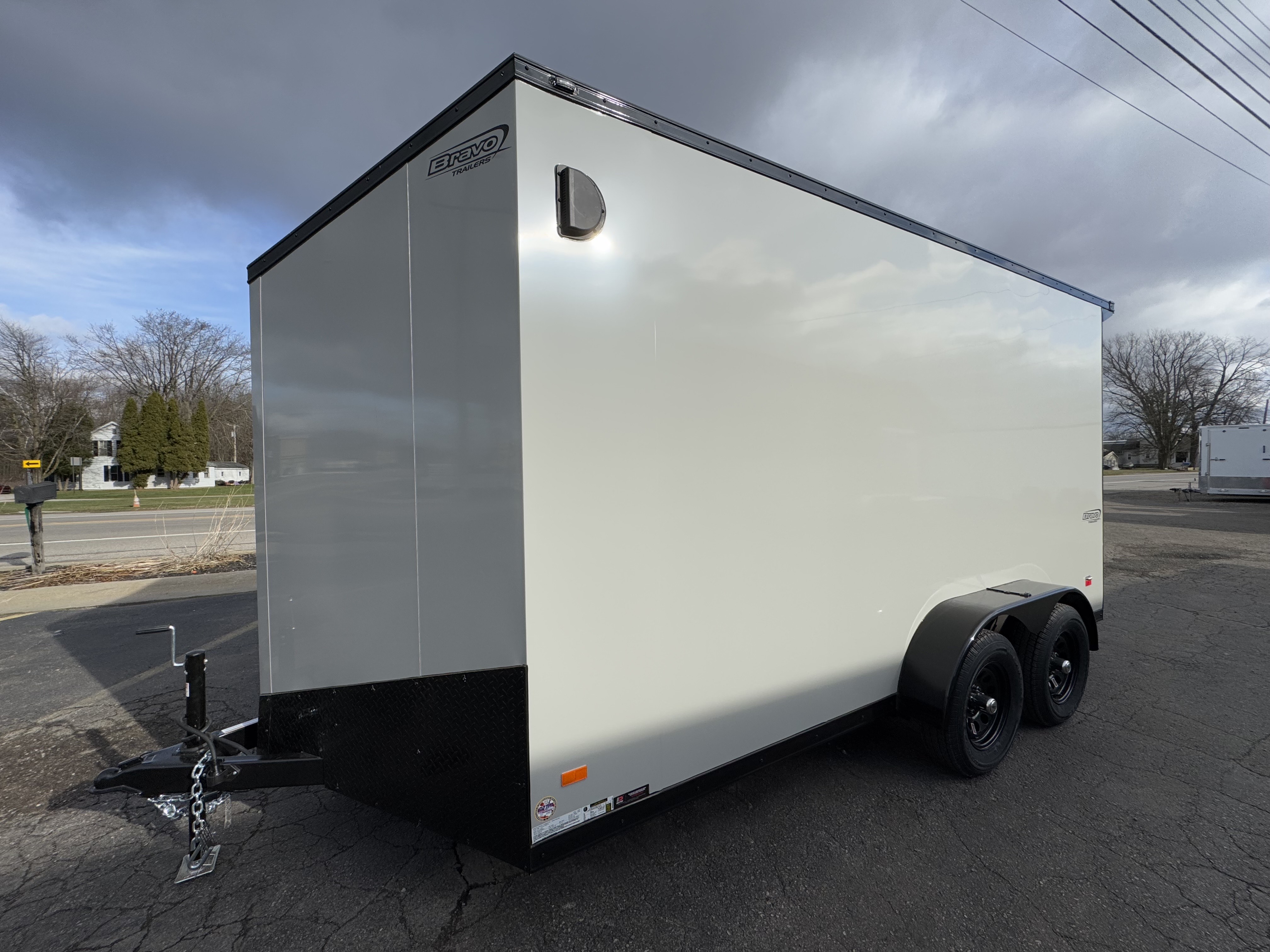

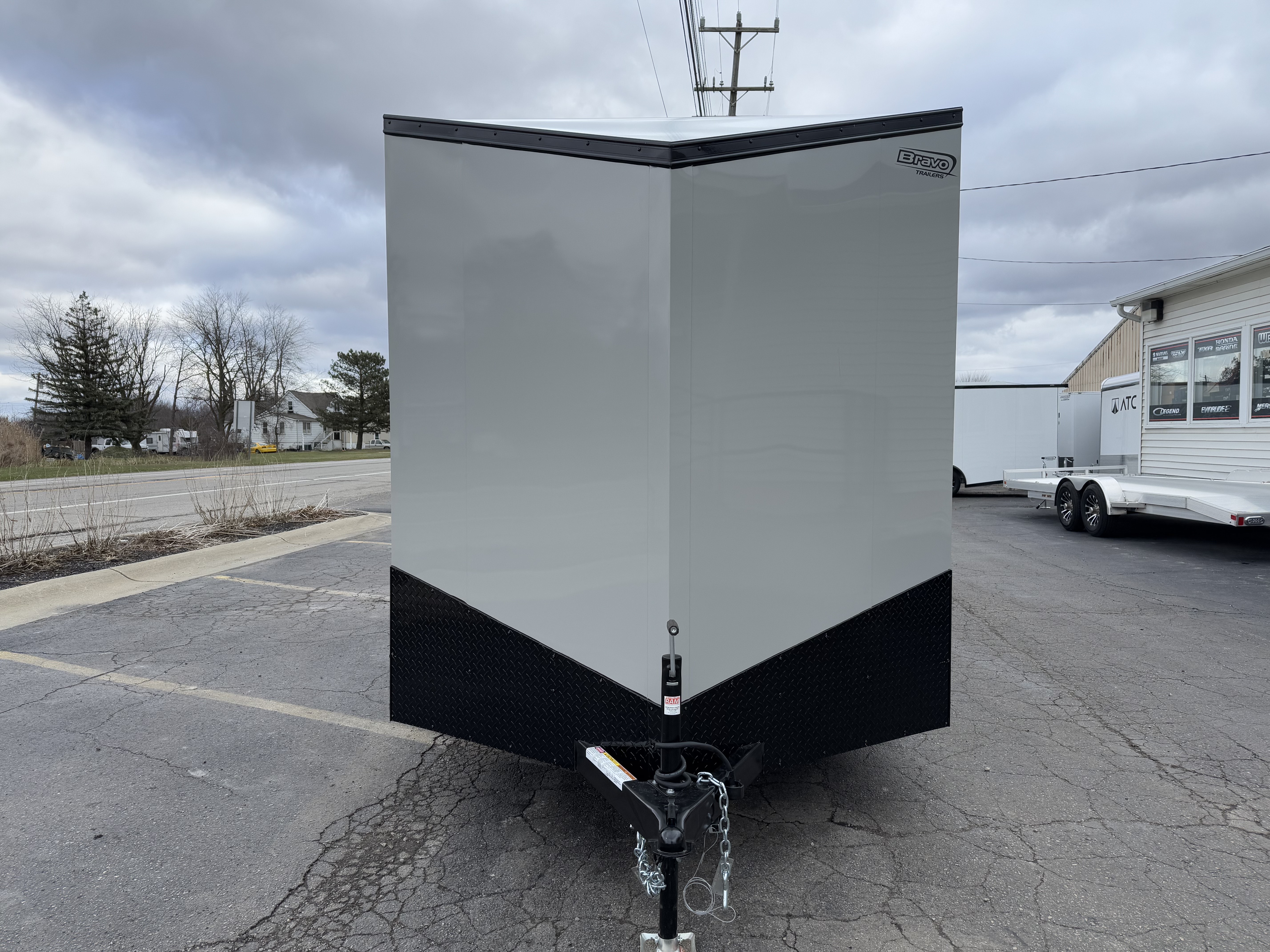

>30" SLANT WEDGE V NOSE (7W) ILO 30" V
W/ 24" TAPERED STONEGUARD
**
>6" EXTRA HEIGHT-LTF
TO UNIT & DOORS
APPROX. INTERIOR HEIGHT: 84"
SIDE DOOR: 76"T
**

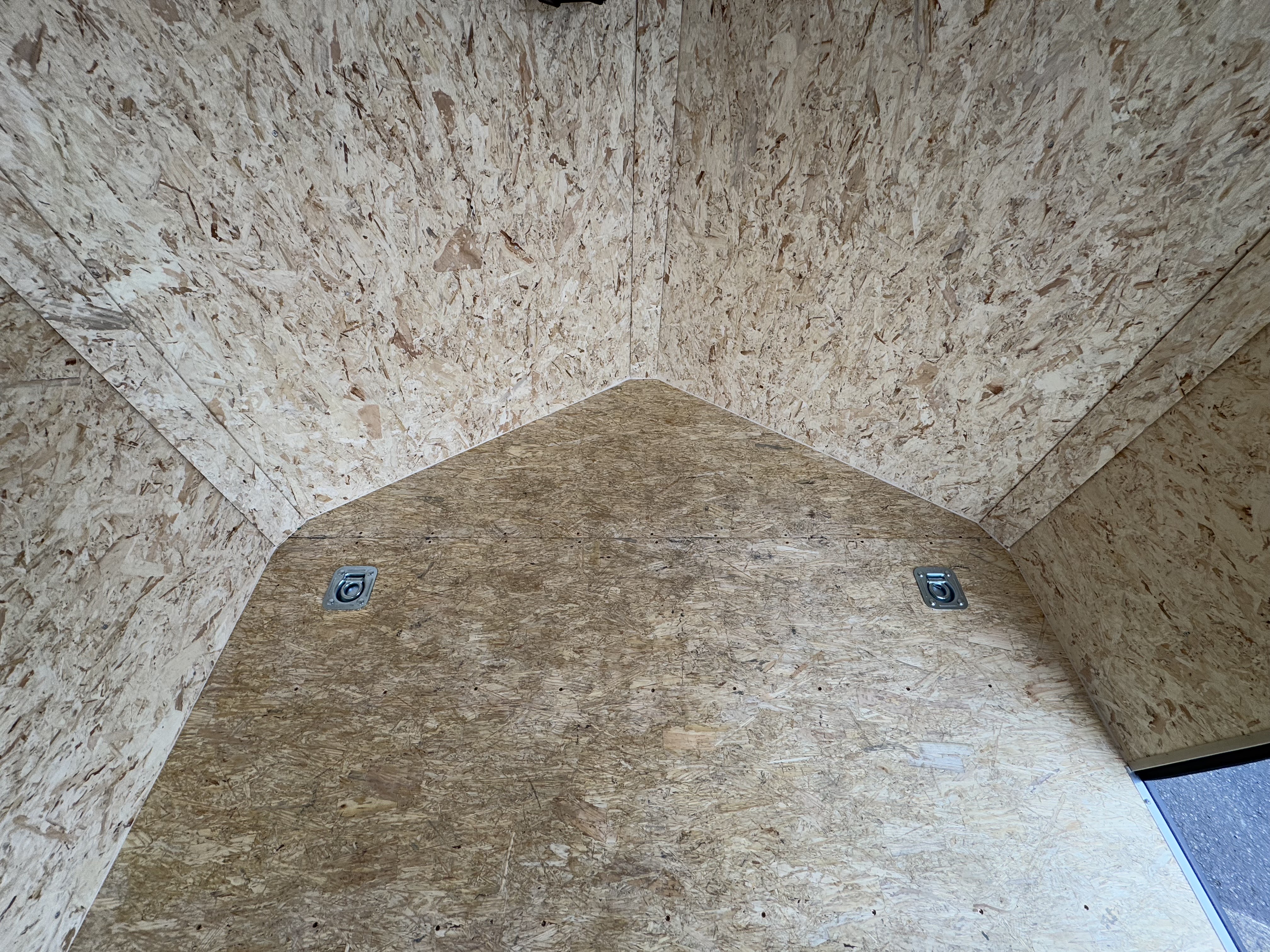

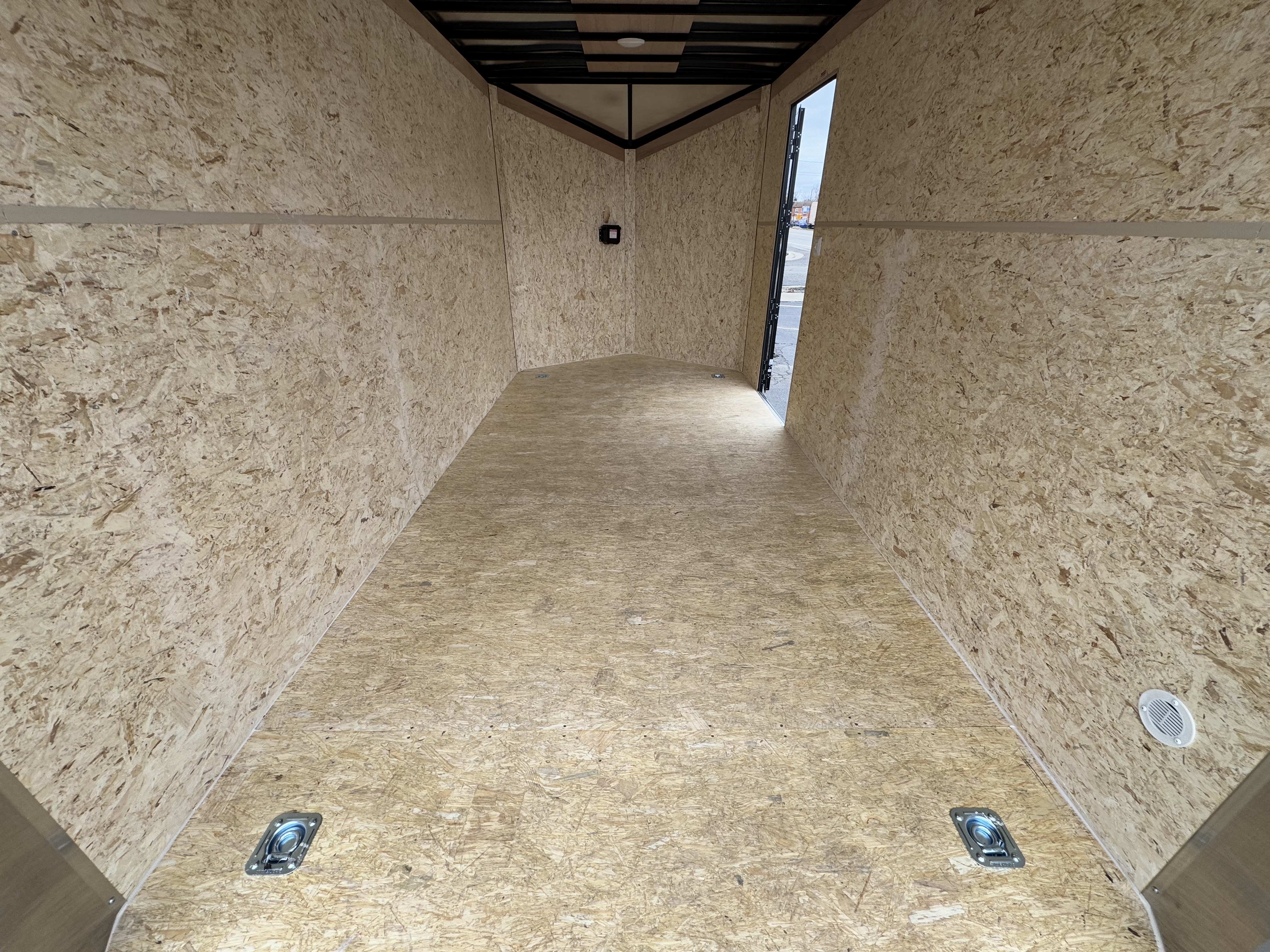

5000# RECESSED FLOOR D-RING
(QTY 1) IN EACH CORNER - 10" AWAY FROM SIDEWALLS
**
SCOUT WING 8" ROOF EXTENSION - 90 DEGREE
*FRAMED IN 1" X 2" TUBE
*POWDER COAT BRACKET ONLY
COLOR: BLACK
*WILL NOT INCLUDE 'BT' FACE PLATE OR REFLECTIVE TAPE*
**

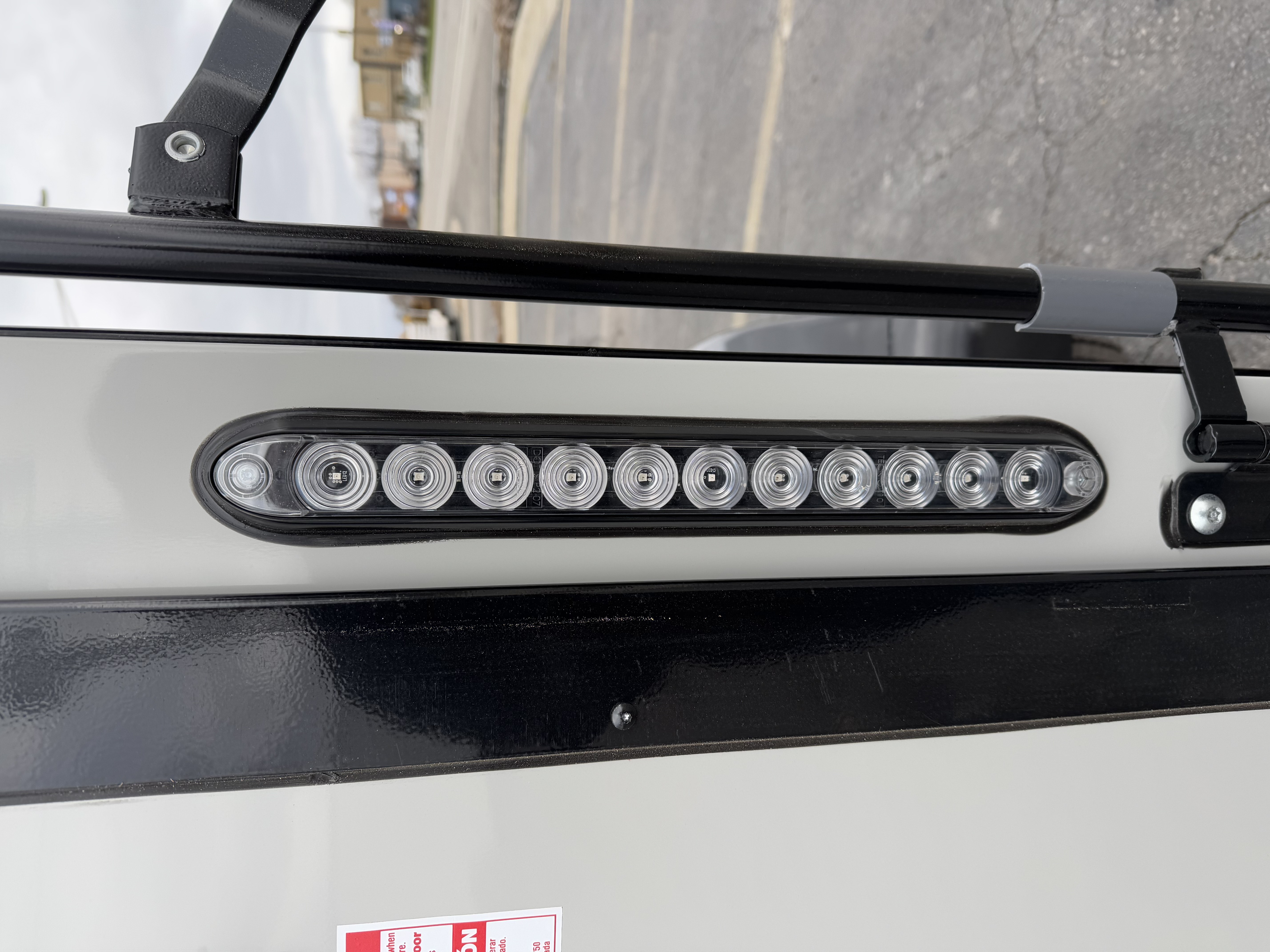

11" LED CHROME PORCH/LOADING LIGHT
**EXTERIOR IN WING
**
MIDNIGHT EDITION PKG (5',6', 7'W SC)
********
-24" STONEGUARD (SEE ORDER FOR TYPE)
-SMALL 'J' RAIL FOR VERTICAL EDGES
-SMALL 'J' RAIL FOR ACROSS TOP OF STONEGUARD
*****
-(QTY 2) FENDERS
**BLACK OUT ENTIRE FENDER - BOTH SIDES
*****
STAINLESS CENTER CAPS
*****
-3.16" BOTTOM TRIM
-TOP RAIL 2-1/2" W/LIP, BOTH SIDES & REAR
-SMALL 'J' RAIL FOR ACROSS REAR
-BIG 'J' FOR RAMP TRIM
-TRIM SCREWS
***
-DRIP RAIL FOR:
-RAMP DOOR
-SIDE DOOR
***
-REAR BARLOCKS W/HARDWARE
-(1) GRAB HANDLE (FOR RAMP DOOR)
********
SIDE DOOR TRIM TO BE BLACKED OUT BY LIPPERT
********
THESE ITEMS WILL BE ORDERED BLACK:
***
-CAST ALUMINUM HOLDBACK
-REAR CORNERS
-BEZEL ON FENDER LIGHTS
-TAIL LIGHT BEZELS
*****
SILVER BRAVO DECAL ON BLACK EXTERIOR METAL
CARBON FIBER BRAVO DECAL ON OTHER COLORS
*****

SPECS:
Details SC714TA2
V-Nose
Axles 3500#
Tires 15" Radial
Brakes Electric
Tube Frame 4" Tube
Hitch Ball Size 2-5/16"
Curb Weight 2306#
Hitch Weight 346#
GVWR 7000#
Payload Capacity 4694#
Overall Length 18'-1"
Overall Width 8'-6"
Overall Height 8'-2"
Exterior Box Width 7'
Interior Length w/ ‘V’ 17'
Interior Width 6'-9"
Width Between W/W N/A
Interior Height 6'-6”
Platform Height 18”
Ramp Rear Door Med Duty
Rear Door Width 6'-3”
Rear Door Height 6'
Side Door Width 32”
Side Door Height 70”
Cross Members O.C. 16” O.C.
Wall Posts O.C. 16” O.C.
Roof Members O.C. 24” O.C.
