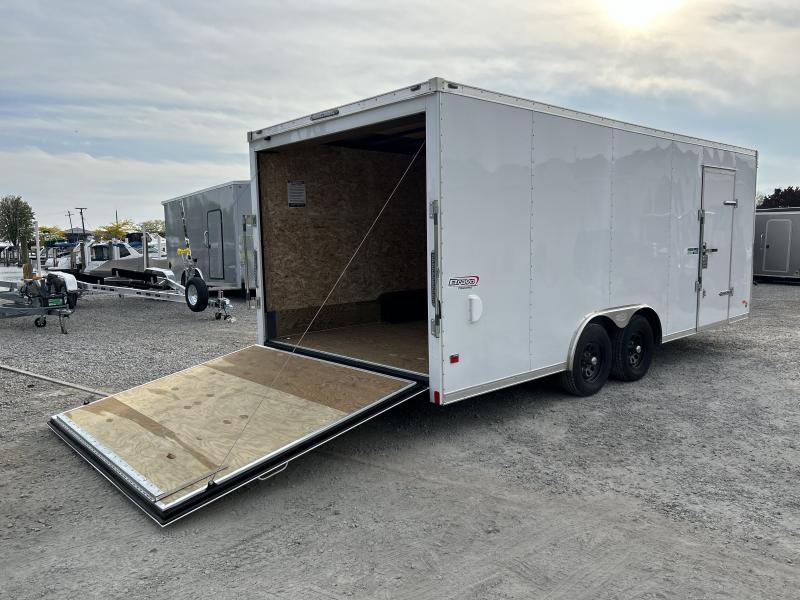

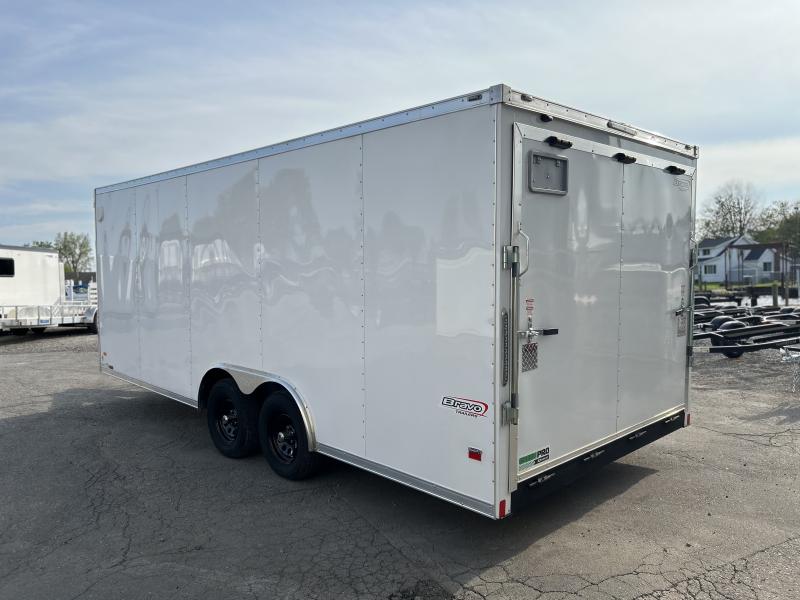

2024  Bravo  8.5X20 GreenPro Commercial Landscape Enclosed Cargo Trailer  - 40166

2024 Bravo GP8520TA2

>GREENPRO ENCLOSED TRAILER

3500# TANDEM DROP SPRING AXLES

ELECTRIC BRAKES

6" TUBE FRAME

CROSS MEMBERS @ 16" O.C.

75-3/4" TUBE WALL POSTS @ 16" O.C.

TUBE ROOF MEMBERS @ 16" O.C.

***

TUBE REAR END (CORNERPOST, REAR X-MEMBERS & REAR HEADER)

1.5" STRUCTURAL STEEL ANGLE (1/8" THICK) WELDED ALONG FRONT

& REAR VERTICAL EDGES OF WHEEL BOXES

**

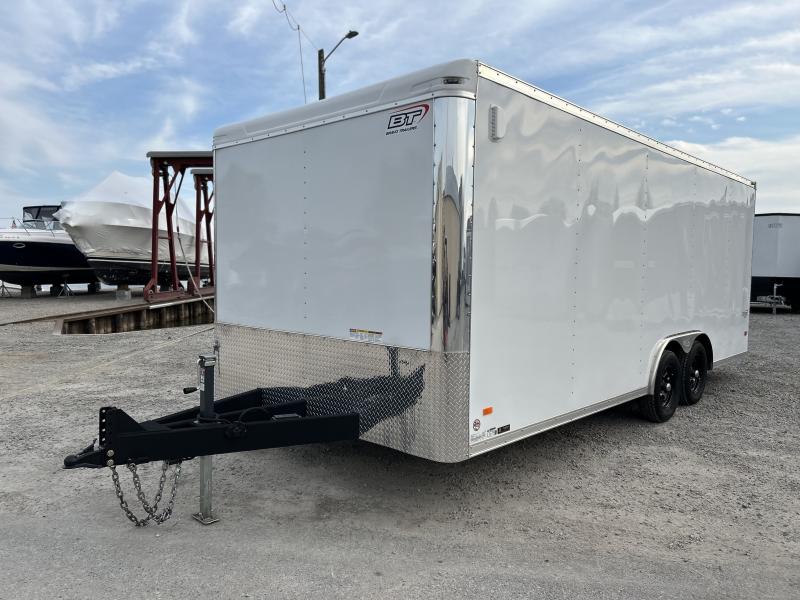

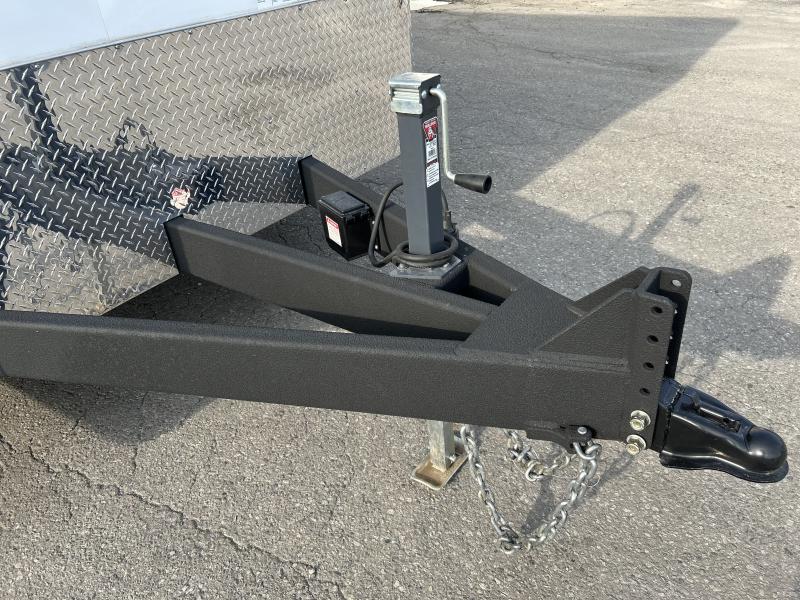

54" TRIPLE TUBE TONGUE W/ ADDITIONAL TUBING

7GA FRONT CROSSMEMBER

2-5/16" ADJUSTABLE BALL COUPLER - 14K

WELDED ON CHAIN RETAINER

SQUARE 5000# DROP LEG TONGUE JACK

SET BACK TONGUE JACK - 24" BACK

**

ROCK GUARD PAINT ON TONGUE, REAR MEMBER & WHEEL BOXES

**

ST205/75R15/LRC 15" RADIAL TIRES

ALUMINUM ROOF

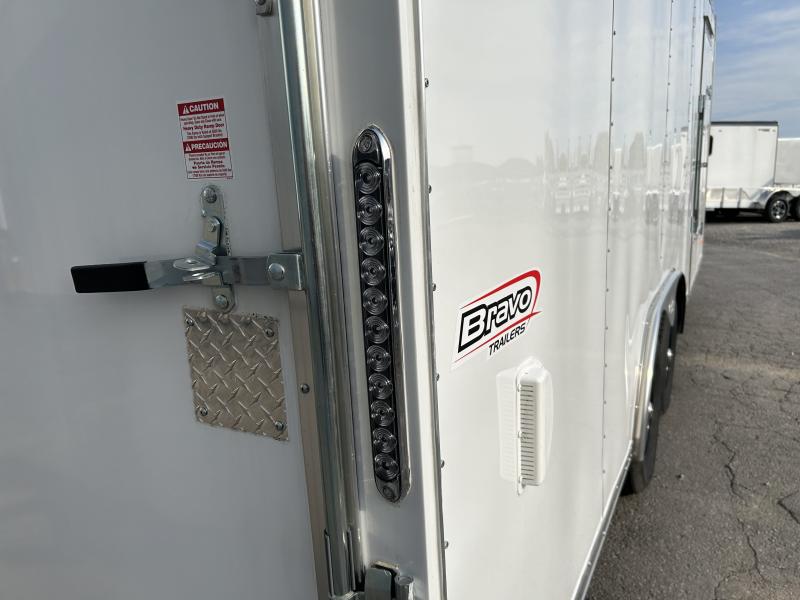

LED STRIP TAIL LIGHTS

CLEAR LENS LED EXTERIOR LIGHTING

LED LICENSE PLATE LIGHT

**

3/8" ENGINEERED SIDEWALLS

3"X 3/8" WOOD AT TOP OF SIDEWALLS

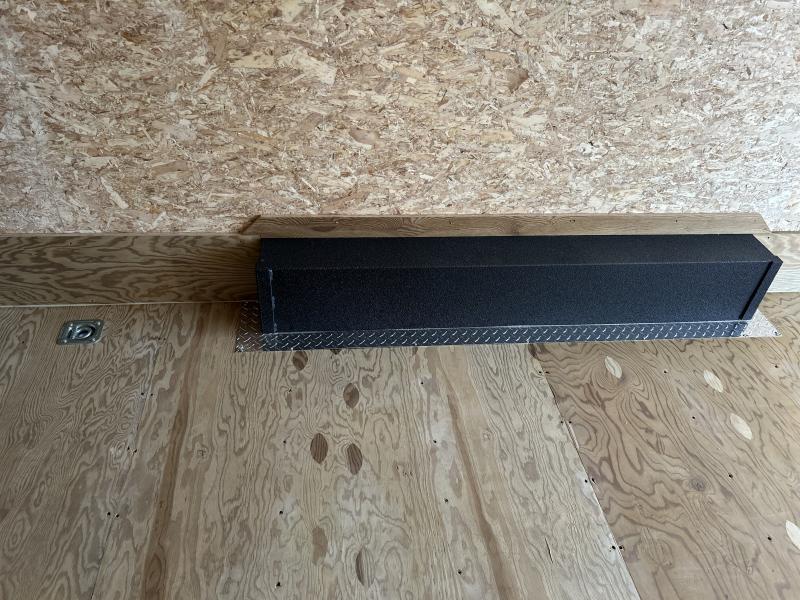

3/4" X 12" WOLMANIZED KICK PLATE INCLUDES FRONT WALL

**PROTECTED KICK PLATE EDGES & SIDE DOOR

**GALVANNEAL REAR INTERIOR CORNERS

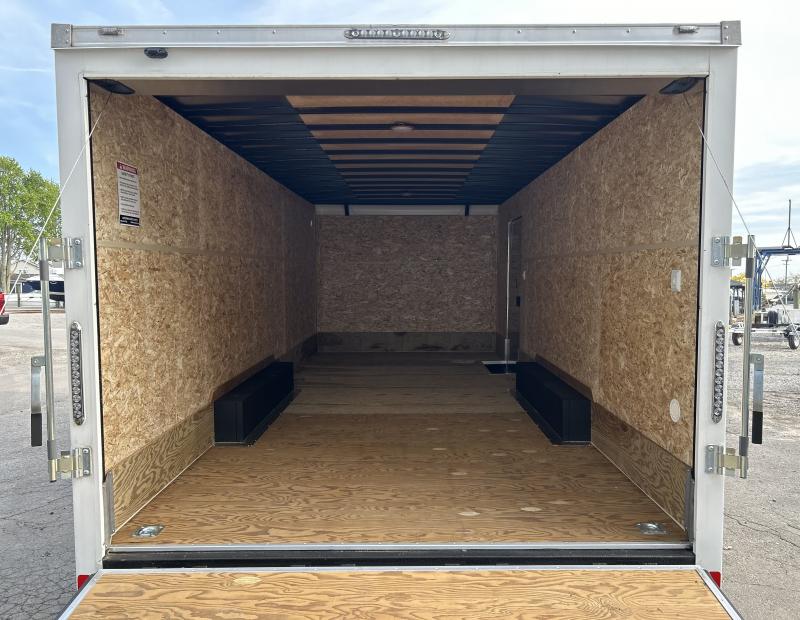

3/4" WOLMANIZED FLOORING & RAMP/FLAP

**

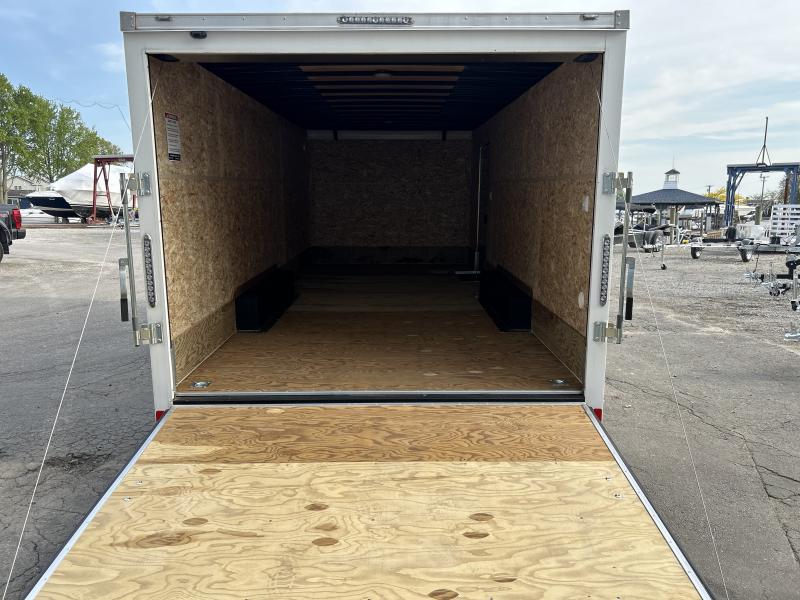

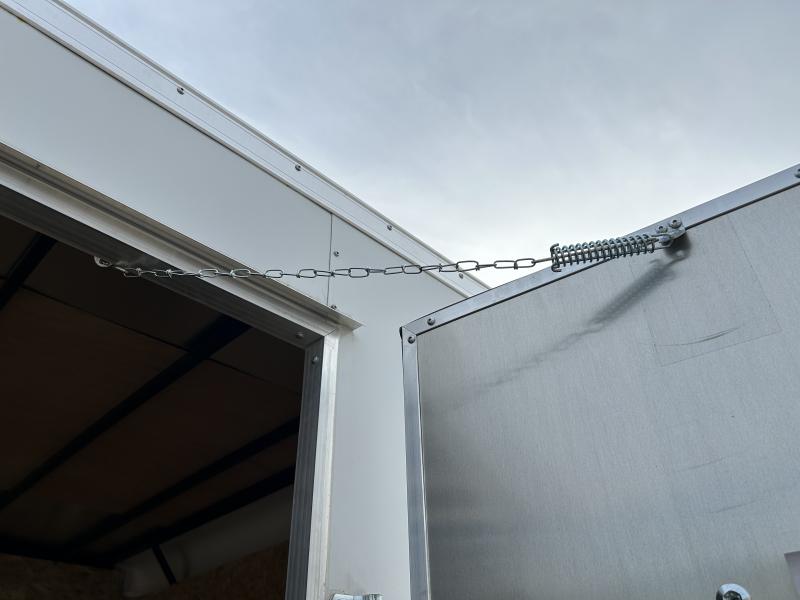

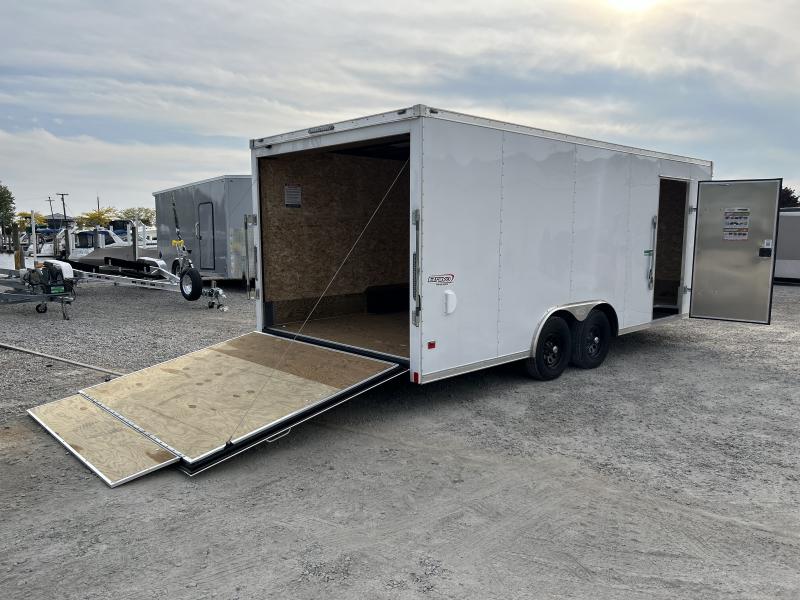

HEAVY DUTY RAMP DOOR W/FLAP

**TOTAL OF 4 RAMP DOOR HINGES

**(QTY 2) ATP BACKERS ON RAMP DOOR

**

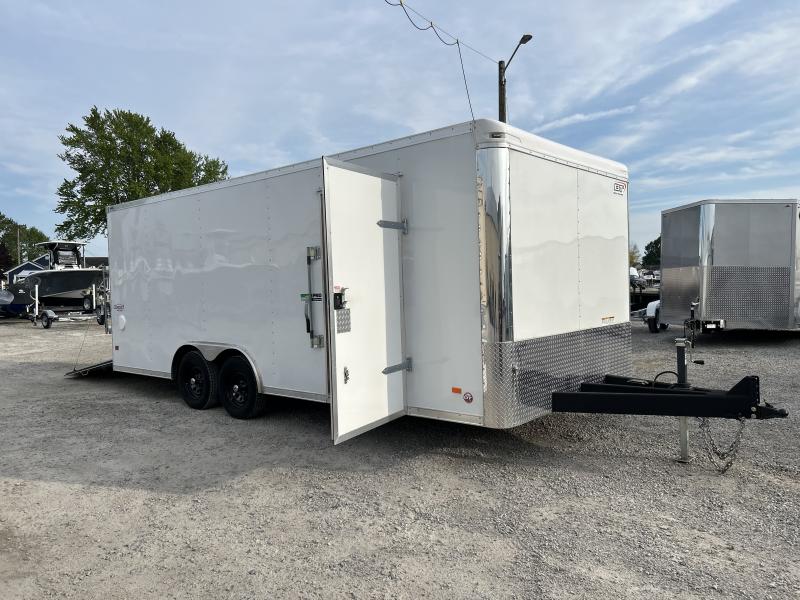

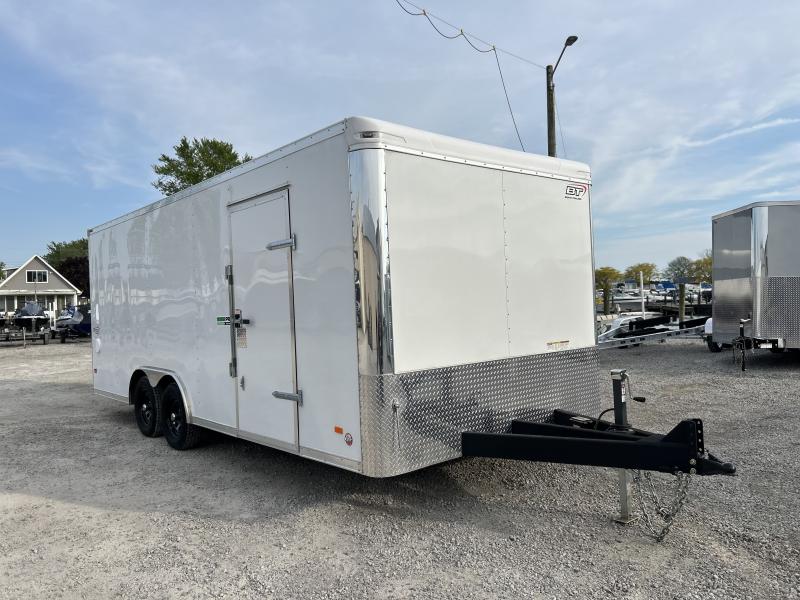

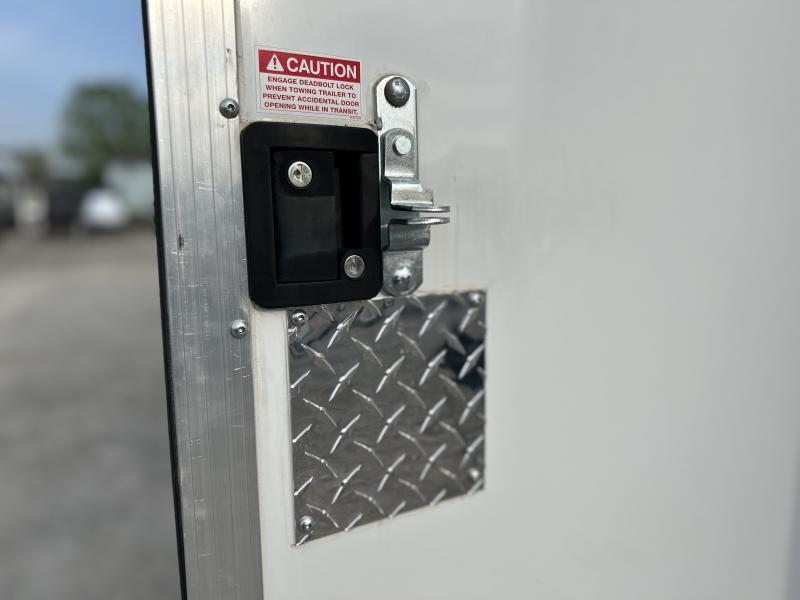

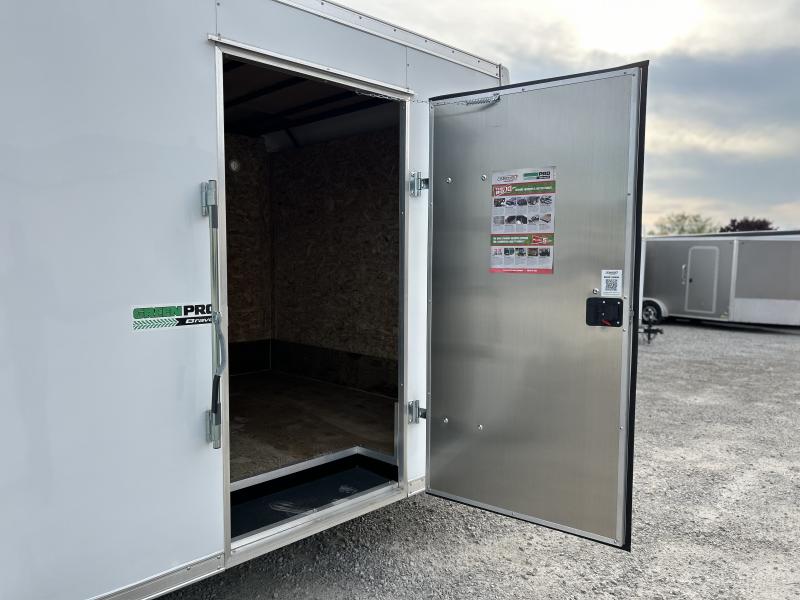

36" X 72" BRAVO BUILT HD ALUMINUM FRAMED SIDE DOOR W/ FLUSH LOCK

BARLOCK, MILL FINISH INTERIOR & ATP BACKERS C/S @ 3' BACK

**

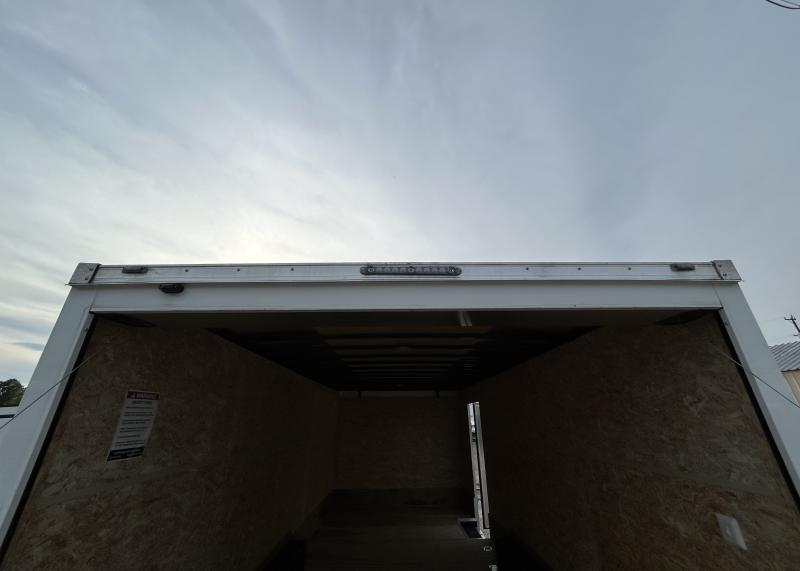

EXTERIOR LED REAR HEADER LOADING LIGHT

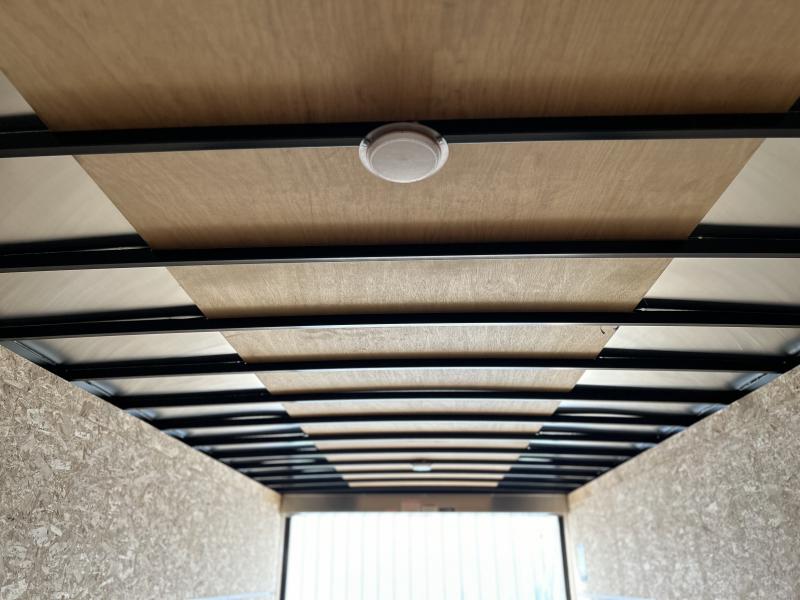

(QTY 2) 12V 6" ROUND LED DOME LIGHTS @ 4' & 14' BACK

(QTY 2) 12V WALL SWITCHES

(QTY 1) @ C/S DOOR FOR DOME LIGHTS

(QTY 1) @ C/S REAR FOR LOADING LIGHT

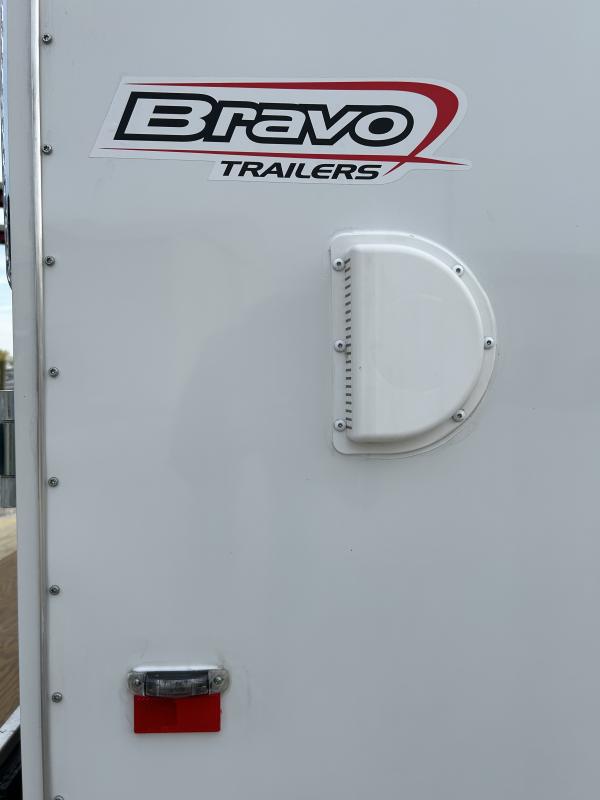

(QTY 1) PAIR ABS FLOW THROUGH SIDEWALL VENTS

FRONT R/S HIGH, REAR C/S LOW

**

ANODIZED FRONT CORNERS W/J-RAIL (STP STYLE)

**SCREWED DOWN

WRAP 24" ATP STONEGUARD AROUND FRONT CORNERS

>WHITE 030 EXTERIOR METAL

>WHITE TPO CAP

>SCREWED SEAMS ONLY/SINGLE PART URETHANE ON OTHER POSTS

>5000# RECESSED FLOOR D-RING

1 R/S & 1 C/S @ 7'-1" BACK & 6" IN FROM SIDEWALL

1 R/S & 1 C/S @ 19'-6" BACK & 6" IN FROM SIDEWALL

>BLACK MOD WHEELS ILO SILVER/PR

>APPEARANCE PACKAGE

(QTY 4) STAINLESS STEEL CENTER CAPS

(QTY 2) CHROME BEZEL FOR LED TAIL LIGHT

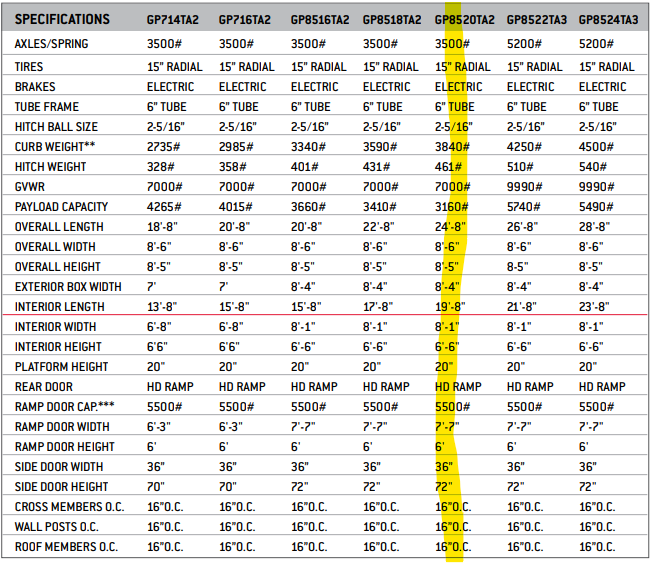

SPECS:

Details GP8520TA2

Axles 3500# SPRING

Tube Frame 6"

Adj. Hitch Ball Size 2-5/16"

Curb Weight 3840#

Hitch Weight 461#

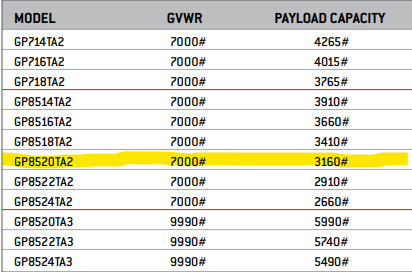

GVWR 7000#

Payload Capacity 3160#

Overall Length 24'-8"

Overall Width 8'-6"

Overall Height 8'-5"

Exterior Box Width 8'-4"

Interior Length 19'-8"

Interior Width 8'-1"

Interior Height 6'-6"

Platform Height 20"

Rear Door HD RAMP

Side Door Width 36"
