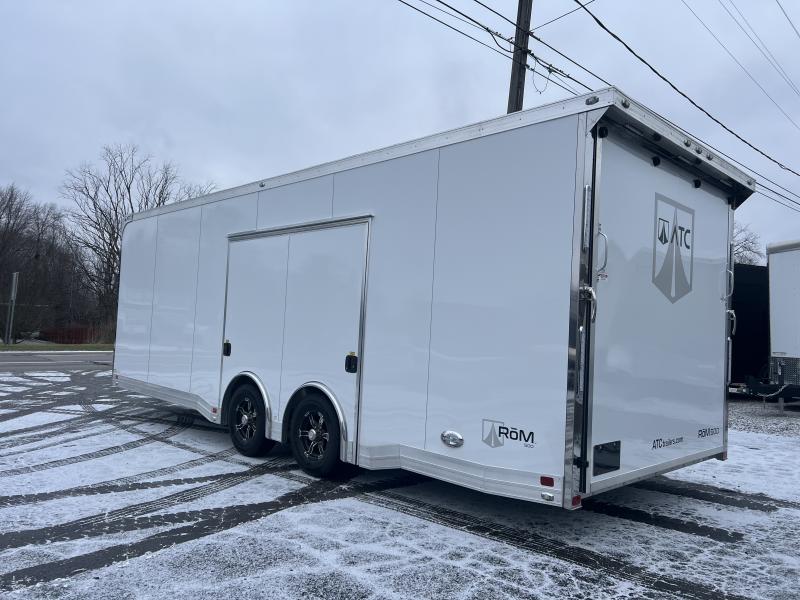

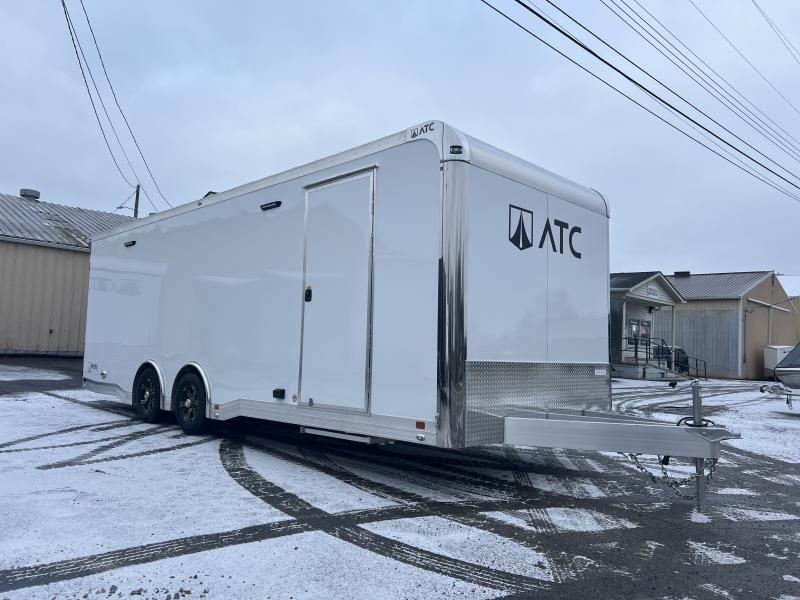

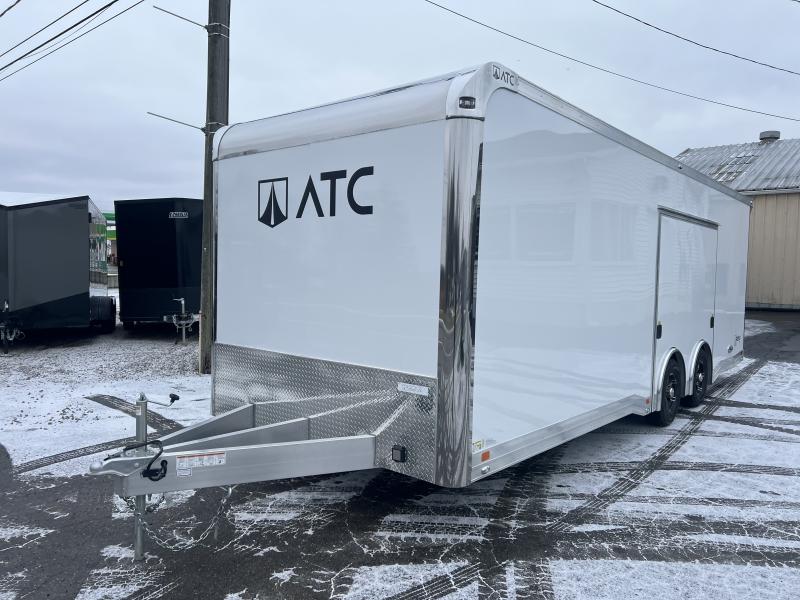

2024  Atc  ROM 500 8.5x24 Enclosed Car Hauler Trailer  - 32212

ROM 500 8.5x24 Car Hauler Trailer

Standard Features For RM500_B85702400+0-2T5.2K

Frame Features:

Full Perimeter Aluminum Frame

All-Tube Aluminum Construction

Extended Tongue

Torsion Axles

Electric Brakes - All Axles

Breakaway Battery Kit

7-Way Trailer Plug

2 5/16" Ball Coupler

Safety Chains w/ Storage Hooks

5,000 lb Manual Crank Jack

16" O/C Floor Crossmembers

16" O/C Wall Crossmembers

16" O/C Roof Studs

Smooth Aluminum Wheel Boxes

Spread Axle Design w/ Individual Fenderettes and Perimeter Skirt

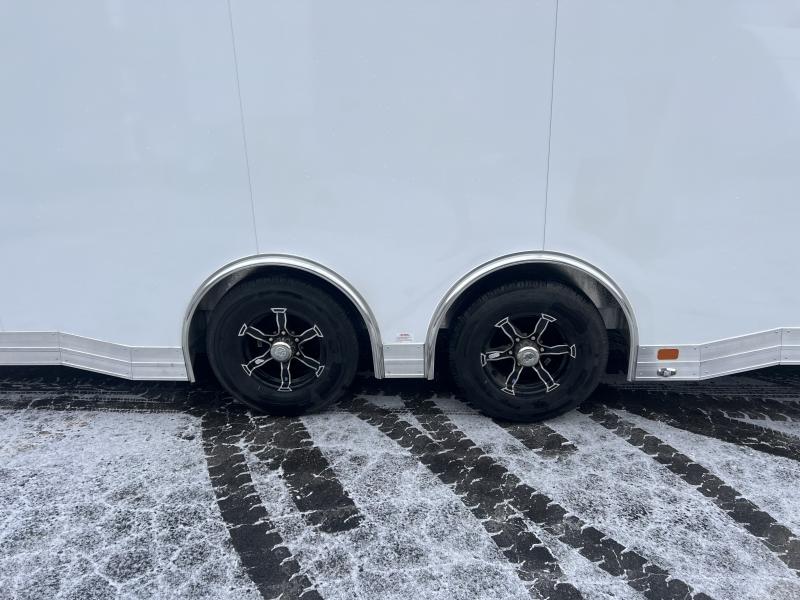

Aluminum Wheels w/ Radial Tires - Nitro Fill

Winch Plate

Spare Tire Wall Mount Backer

Exterior Features:

.040 Aluminum Skin - Screwless

Screwless/Rivetless Aluminum Exterior

One-Piece Aluminum Roof

4" Upper Rub Rail Trim

7" Lower Rub Rail Trim

LED Clearance Lights

LED Slimline Tail Lights - Pair

24" ATP Stoneguard

36" 405 Series Door

FMVSS Door Latch

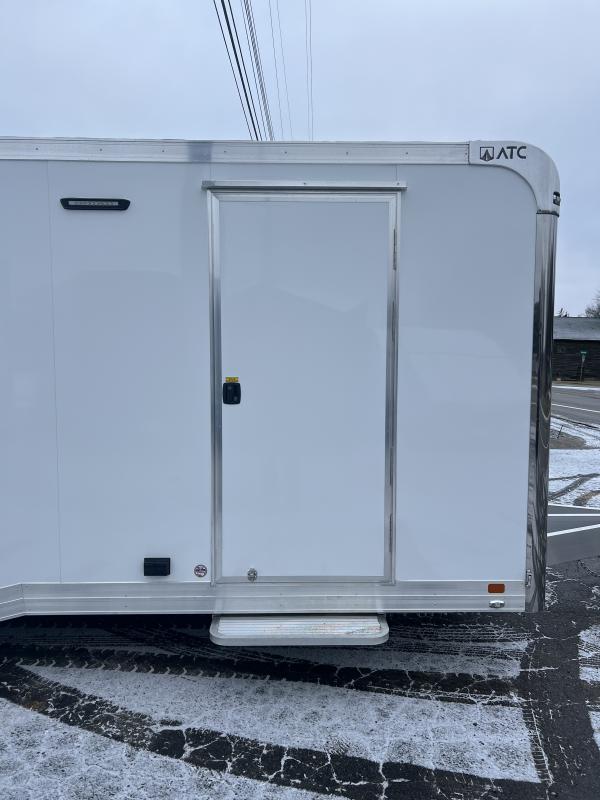

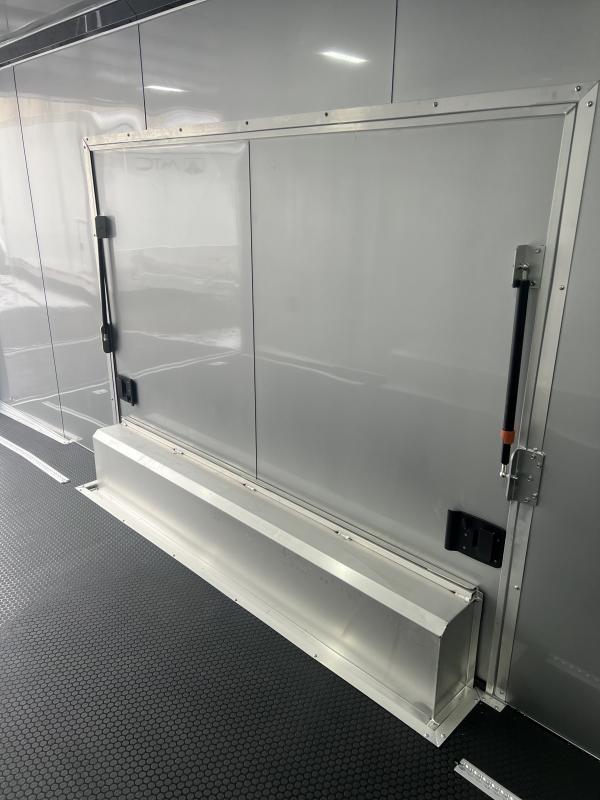

Premium Escape Door

Cast Corners w/ Stainless Steel Vertical and Horizontal - Polished

TPO Floor

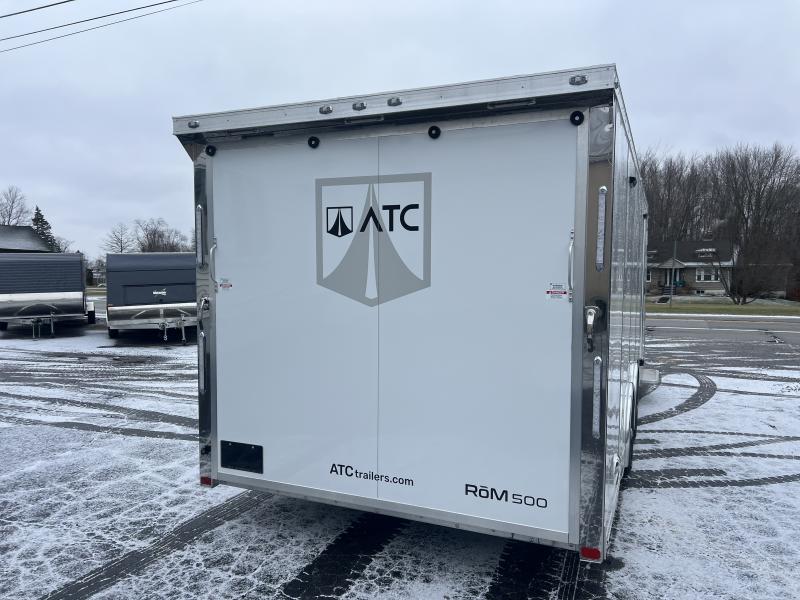

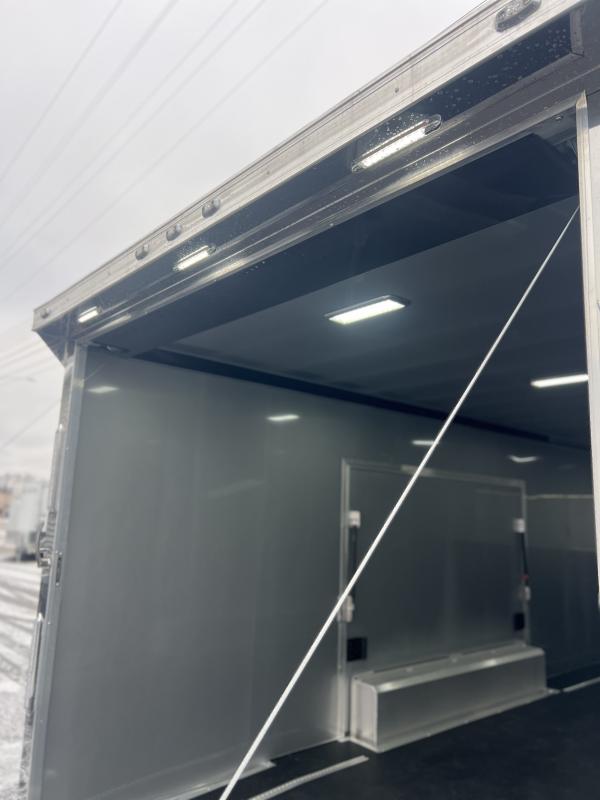

Rear Ramp Door - TPO - Gapless Continuous Hinge

Stainless Steel Paddle Latches

Transition Flap - TPO

Rear Skid Plates

Rear Spoiler - Stainless Steel w/ (QTY 3) LED Lights

Stainless Steel Rear Verticals

Aluminum Slide In/Out Step

Interior Features:

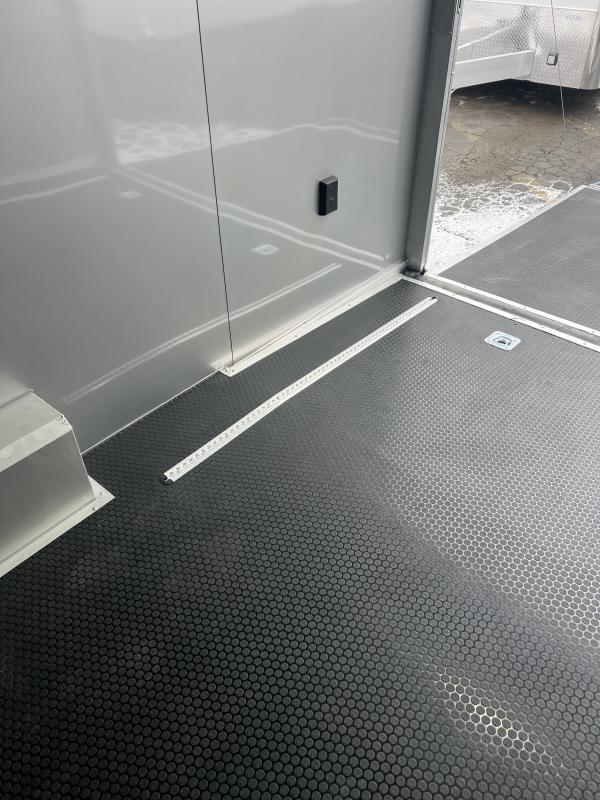

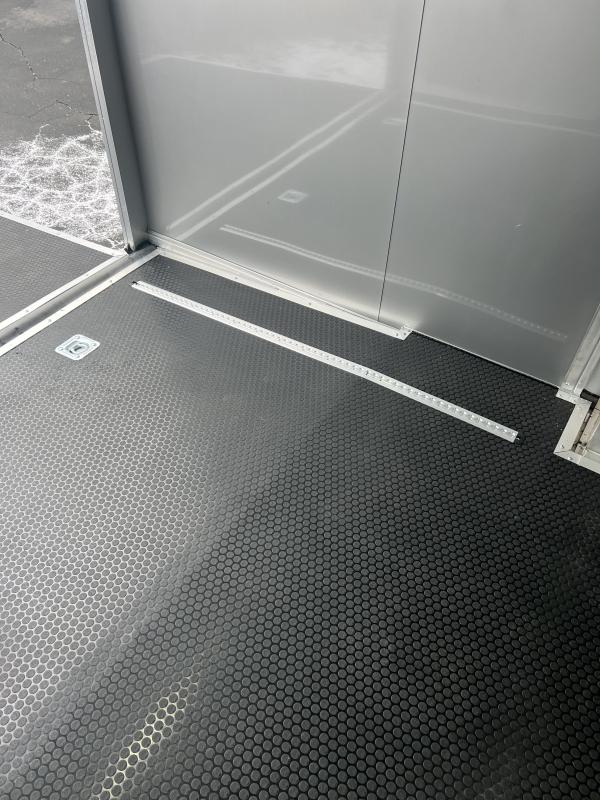

Black Coin Floor and Ramp

(QTY 1) Roof Vent w/ Maxxair Cove

7' Interior Height

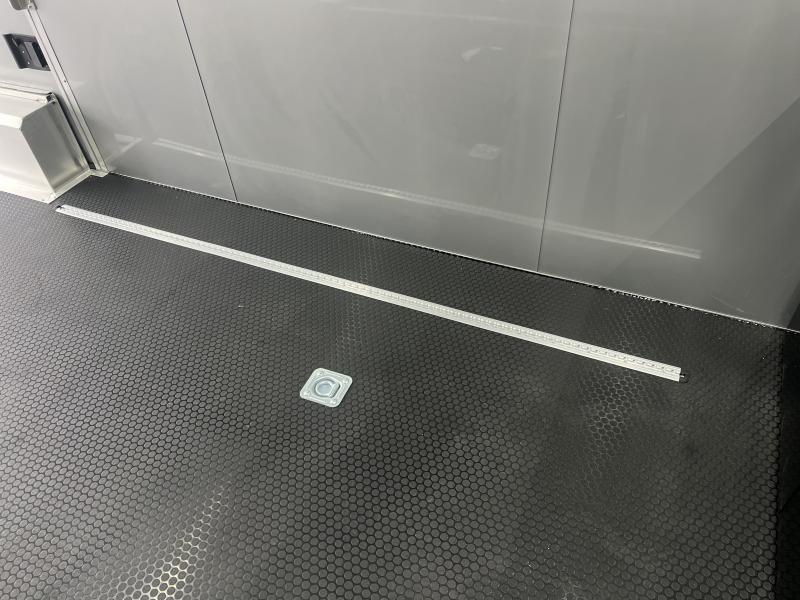

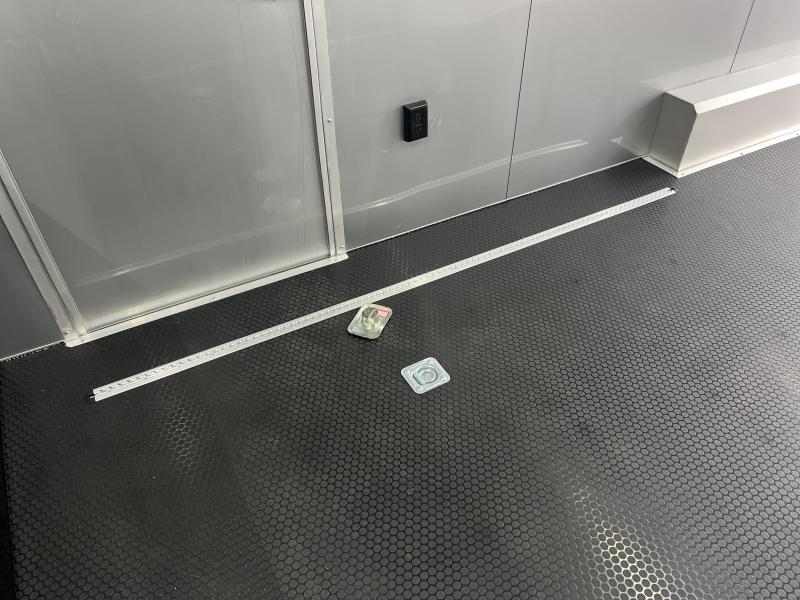

(QTY 4) 5,000 lb Recessed D-Rings

4' Beavertail

Screwless Aluminum Walls

Screwless Aluminum Ceiling

50 Amp Breaker Box with 60 Amp Converter - 12v Fuse Panel - Intellipower

Motorbase Plug and 25' Shorecord

12v AGM Battery

(QTY 3) 15 Amp Interior Outlets (QTY 1) Exterior GFI

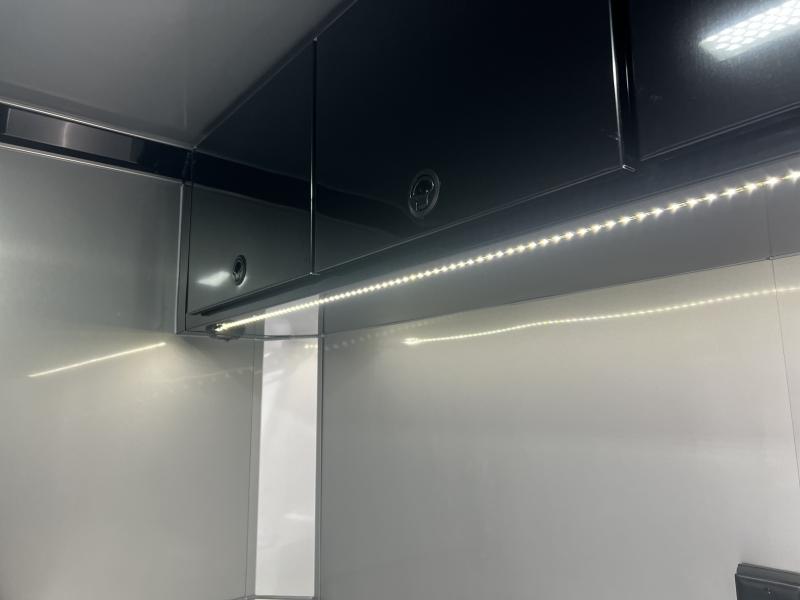

(QTY 4) 14" 12v LED Lights

(QTY 2) External Scene Lights w/ Switch

12v Cut-Off Switch

A/C Prep and Wire

SPECS:

Axle Rating

(QTY 2) 5,200 lb

GVWR

9,990 lb

Estimated Weight

3,834 lb

Estimated Payload

6,156 lb

Axle Type

Torsion

Overall Length (Includes 6" Spoiler)

28' 10"

Overall Width

102"

Overall Height (Top of Roof Vent)

112 3/4"

Interior Length

23' 11"

Interior Width

97 1/2"

Interior Height

84"

Minimum Ground Clearance

8 1/16"

Deck Height

19 3/4"

Rear Opening Width

89 7/8"

Rear Opening Height

83 7/8"

Tongue Length to Center of Ball

55 1/2"

Center of Coupler to Corner Radius

78 1/2"

Width Between Wheel Wells

82"

Brakes

4 Wheel Electric

Tire Size/Tire Load Range

225/75R15 LRD

Hitch Height To Top of Ball

19"

Hitch Ball Size

2 5/16"

Floor Studs

16" OC

Wall Studs

16" OC

Ceiling Studs

16" OC
